Detailed Product Description
Running Speed: 2-6mm Rectangular Hollow Section Steel: 30x50-100x140
Square Hollow Section Steel: 30x30-120x120 Opening Cold Bend Steel: Height Max 50 ;Width Max 150
Welding Type: High Frequency Welding Speed: 0-80m/min
High Light:

cold bend erw pipe mill

,

fully automatic erw pipe mill

,

precision pipe tube mill

Speed 0-80m/min Fully Automatic Cold Bend 30x50mm Erw Welded Pipe Mill machine





Product Information



This equipment is our company in order to meet the requirements of the international market, according to our company LW series unit combined with FF forming technology,developped the automatic square and rectangular tube mill line.



The main characteristics of the equipment



  • In a very short period of time to finish the adjustment of the roller, extreme reduce the roller change time when replace the products, thus improve the efficiency and reduce the productive cost;

  • Due to the equipment adopts one set of combined mould, producing the different specifications of the tube, only need to adjust,no need to change,the roller savings rate at above 90%,thus reducing the cost of the roller;

  • Due to the equipment adopts the motor automatic adjustment,thus decreasing the number of workers,reduce the labor costs,decreased the workers labor intensity, improved the workers working environment;

  • The equipment operation is simple,just need to know the size and the wall thickness of the tubes in the production,then input it to the interface,it will make adjustment automatically, thus lower levels of debugging personnel's technical requirements.

  • With automatic adjustment, decreased the input of tools and damage to equipment when change the roll, improve the service life of the equipment.

  • Due to structure of the composite roll,the point contact between the roll and strip instead of the original line contact,reduce the roll wear and improve the service life of roll.

  • Can produce a certain specification of opening cold bend steel, such as U,C section steel etc., width and height of the product can be adjusted infinitely.



The Equipment Production Range





Type

Specification(mm)



Thickness(mm)



Product Standard



Material



Square hollow

section steel

30x30-120x120 2.0-6.0





DIN59411

GB6728-2002





Q195-Q345







Rectangular hollow section steel

30x50-100x140 2.0-6.0


Opening cold

bend steel

Height Max 50



Width Max 150

2.0-6.0





The equipment consists of the following parts



Single Mandrel Hydraulic Decoiler

The decoiler is mainly composed of base, increases cone head, hydraulic system, hydraulic brake, to increases and cantilever type single drum,aconical head, one online;Hydraulic ncreases,hydraulic brake.

OD of coil Φ1000-2000mm
ID of coil Φ520-610mm
Width of strip 100-480mm
Thickness of strip 2.0-6.0mm
Weight of strip Max8T
Expansion Type Hydraulic expand
Break Hydraulic driving



End straightener



This unit is main used to lead the new coil steel head feed into the flattener unit after uncoiler unit bring the coil into the working place.

electric motor power:1.5KW

processing pressure:7Mpa

reduce speed :BW17-4



Flattener



This unit is main used to flatten the head and trail of the strip steel and prepare for the next step cutting and shear welding so as to ensure the strip steel opposed flate and straight in the shear welding.

flattener level and pressing capability:

the flattener & pressing roll Dia:Φ180

flattener roll Dia:Φ120

flattener level velocity:11m/min

the style of the adjust velocity: no grade of the adjust velocity

the structure style:pressing & carry, five roll flattener unit

up & down style: hydraulic system

width of the flattener:100-480mm

flattener thickness :2.0-6.0mm

hydraulic cylinder working pressure:7Mpa

electric motor power:22KW



Automatic Cutting & Welding Machine



Automatic Cutting & Welding Machine is used to cut the irregular ends of the strips and then connect the strips by welding.

Strip width 100-480mm
Welding thickness 2.0-6.0mm
Cutting Type Hydraulic
Welding Mode Automatic



 Horizontal spiral accumulator



This unit is main include in press& carry material device, accumulator assemble, carry off material unit, electric control unit.

It is main include frame, electric motor, brake unit, circling direction transfer power axle of the reduce velocity, press & carry roll, pressure air system of guide roll, inspected velocity unit; it can supply the strip steel to accumulator and the mean times it will transfer the carry velocity information to electric control system, when we demand stop carry the material to this unit, it will stop roll to the electric motor and press& carry material roll by the break, and also could adjust the velocity to carry electric motor and the unit carry material velocity.

(2)Accumulator frame assemble: include the electric motor, frame , inner circle roll, out circle roll and pressure roll. It can be used to storage the strip steel material from press& carry unit and it could be draw from the center send-off material roll.

(3)Send-off material device: include frame, guide direction rolls, guide out roll of high or lower place. It can carry the strip steel to shape system and send the carry out material velocity information to electric control device.

(4)technical parameters:

working style: Fixed circle

advantage:storage material more,no strike to strip steel suface.

steel coil thickness:2.0-6.0mm;width:100-480mm

carry material going velocity:Vmax=120m/min

hydraulic oil pressure:7Mpa

directly electric motor power of the press & carry:45KW

the electric motor of the accumulator frame : 90KW



Forming & Sizing Mill

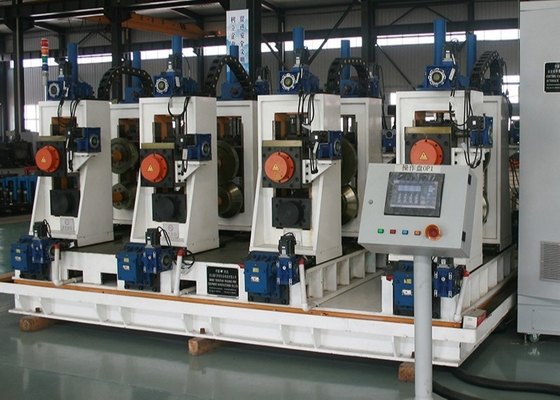

Consist of Feeding roller, Automatic centering device,Passive leveling stand, Horizontal roll stand (P1), Vertical roll stand (L1),Horizontal roll stand (P2),Vertical roll stand (L2),Horizontal roll stand (P3),Horizontal roll stand (P4) , Vertical roll stand (L3),Horizontal roll stand (P5), Horizontal roll stand (P6), Horizontal roll stand (P7)Vertical roll stand (L3), Three frame of empty curving, welding direction, five roll extrusion, burr cut, burr removal system two stand, rolling light stand, cooling system, sizing vertical roll stand (DL1), four roller stand (F1), four roller stand (F2),4 roller frame (F3), four roll frame (F4), Turks head (C2), electrical control system, etc



Cold saw



The cold saw is the key equipment in the production pipe, and it used to precisely cut all kinds of frame tube automatically. Concerning to using high accurate STD control system and machinery system, this unit has the good precisely dimension advantage, and the machinery transfer best advantage, so the quickly ability and accurate processing,without Burr is this unit advantage.



Size of pipe

30x30-120x120mm

30x50-100-140mm

WT of pipe 2.0-6.0mm
Fixed Cutting length 4~12m
Cutting Accuracy 0~3mm
Saw blade cutting motor

Frequency conversion motor 15kW

2 sets

Carriage driving motor Serve motor 45kW
Feed motor Serve motor 5.5KW
Cutting Speed Max.60m/min
Tube Clamping type Pneumatic
