Round Pipe Api Automatic Tube Mill Diameter 325 To 530 Mm Thickness 4 To 9 Mm

China Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd. certification
China Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd. certification
Customer Reviews
Thanks for your pipe mill,very good quality and best after-slae service!

—— Mr.Gaber Ibrahim

Dear Amy, Nice day. We have received your mill machine,very good,thanks

—— Eng.Sandeep Sharma

Hi Ms.Amy, Greetings! Thanks for everything when visiting you,very nice factory and good quality machine. Hopefully we can be good patners in future.

—— Ddwin Jakobs

I'm Online Chat Now

Round Pipe Api Automatic Tube Mill Diameter 325 To 530 Mm Thickness 4 To 9 Mm

Round Pipe Api Automatic Tube Mill Diameter 325 To 530 Mm Thickness 4 To 9 Mm
Round Pipe Api Automatic Tube Mill Diameter 325 To 530 Mm Thickness 4 To 9 Mm Round Pipe Api Automatic Tube Mill Diameter 325 To 530 Mm Thickness 4 To 9 Mm

Large Image :  Round Pipe Api Automatic Tube Mill Diameter 325 To 530 Mm Thickness 4 To 9 Mm

Product Details:
Place of Origin: Hebei
Brand Name: Tengtian
Certification: CE, ISO9001, BV
Model Number: HG530
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiate
Packaging Details: Export waterproof and Seaworthy packing.
Delivery Time: 60 work days
Payment Terms: L/C, T/T
Supply Ability: 50 Sets/Year
Detailed Product Description
Yield Strength Of Raw Material: σs≤300Mpa Tensile Strength Of Raw Material: σb≤500 Mpa
Thickness: 4-9mm Max. Production Speed: 5~25m/min
Fixed Cutting Length: 6-12m Pipe Size Range: Ф325-530mm
Warranty: One Year Welding Type: High Frequency Welding
High Light:

api automatic tube mill


diameter 325mm automatic tube mill


od530mm high frequency welded pipe mill

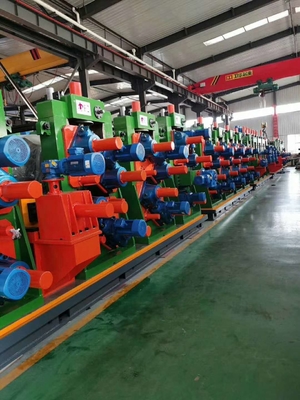

HG530 High-Frequency Welded Pipe Mill Line is designed to produce round pipe (Diaφ325-530mm, thickness 4-9mm).


Use FFX molding: On this equipment, the most economical and reasonable molding process is used to continuously and smoothly bend into a seamed tube. Due to the special design of the entire roll structure and its adjustment, it can adapt to the forming of all product sizes and specifications without the need to replace rolls.

The closed-hole type frame part is a three-frame four-high rolling mill, and the rolls need to be replaced according to different product outer diameters. In order to facilitate quick change of specifications, the closed-hole type frame frame is specially designed and installed in a special replacement frame. The connection and separation with the base and the driving part are driven by hydraulic pressure, and the replacement can be completed in tens of minutes.

  • Material Specifications:

Conforming to the YB189-64 standard

(1)Material: Low carbon steel and low alloy constructional steel

(2)Mechanical properties: σb≤520Mpa,σs≤340MPa

(3)Strip Width: 1020~1665mm

(4)Strip Thickness: 4~9mm

(5)Steel strip coil: Inner Diameter of Coils:φ508~φ760mm

Outer Diameter of Coils:φ1500~φ2100mm

(6)Coil Weight: ≤30T

  • Main specifications of welding pipe products:

(1)Pipe Size: Round: φ325~φ530mm

(2)Wall Thickness of Pipes: 4~9mm

(3)Fixed Cutting length: 6~12m

(4)Pipe-cutting Precision: ±3mm

  • Forming Speed : 5~25m/min
  • Power, Water & Air Supply:


Power Volume of the Line Approx.1600KW

Power Source 380V/50Hz/3phases

(2)Circulation Cooling Water:

Flow: 30T/h~40 T/h

Pool Volume: 40m3

(3)Compressed Air

Flow: 5m3/min

Pressure: 5~7kg/ cm2

  • Workshop:

20m wide,220m long, 8m high,



  • Loading car

The coil car is used for make the steel coil from loading position to uncoiler. At the same time lift oil cylinder, so that the steel coil inner hole is accurately set on the mandrel of the uncoiler, the uncoiler tension, push back to the original position.


Bore of lifting cylinder: Φ250mm

Hydraulic system pressure: 12Mpa

Maximum lifting force of lifting cylinder: 20T

Number of guide rods: 4

Trolley traveling motor: AC 4KW

Traveling speed of trolley: 10m/min

Trolley travel: 6m


  • Uncoiler

The uncoiler is of the structure of single expansion and cantilever mandrels. It contains two main parts: main body and the fixed base. The main body is equipped with pneumatic system to satisfy the needs of expanding, contracting and braking of the mandrels.


OD of coil Φ1000-2000mm
ID of coil Φ508-760mm
Thickness of strip 4-9mm
Width of strip 1020~1665mm
Weight of single strip Max30T
Expansion Type hydraulic expand
Break Pneumatic driving
Taper drive motor AC 15KW




  • Straightener unit

This unit is main used to lead the new coil steel head feed into the flattener unit after uncoiler unit bring the coil into the working place.


Positive and negative two-way loading.

External diameter of the press roller: Φ250mm

Pressure roller drive motor: AC 7.5KW

Unwind speed: 15m / min


  • Flattener unit

This unit is main used to flatten the head and trail of the strip steel and prepare for the next step cutting and shear welding so as to ensure the strip steel opposed flate and straight in the shear welding.



Flattener level and pressing capability:

Transmission motor: DC75KW

Lead material speed: 8-40m / min

Paint roller: Φ100×120(two)

Lead roller Diameter: Φ260×1600mm, Material: 42CrMo

Flat roller diameter: Φ200×1600mm, Material: 42CrMo

Lead roller pressure down cylinder: φ120×90mm


  • Automatic shear and welder

Used to cut off the irregular part of the tape head and tail, and align the tape tail of the previous coil with the tape head of the next coil, and weld them together to continuously feed the looper.

Structural form: shear welding bed, pinch feeding device, double centering device, double shearing shearing system, shearing plate system, welding bottom plate driving system, etc.


Material performance: The yield strength is 621MPa

Plate ter drive motor: DC11KW

Plate ter adjustment motor: AC4KW

Hydraulic station motor: 55KW

Welder gun walking motor: DC2.2KW

External diameter of the clip delivery roller: φ320mm




  • Horizontal accumulator 16M

This machine is between shear welder and host (forming sizing mill) ,use for after a roll of strip steel are used up, before the next roll strip since prepared from uncoiling, shearing and butt welding time to ensure that the host (forming sizing mill) continuous production and store enough strip steel.


This unit is main include in press & carry material device, accumulator assemble, carry off material unit, electric control unit


working style change circle
carry material going velocity Vmax=80m/min
advantage More material, No strike
Pinch form Pneumatic, 6Mpa
steel coil thickness 4-9mm
width 1020~1665mm
electric motor power of the press & carry 110kw
the electric motor of the accumulator frame 16×15kw
torsion motor 9×3KW

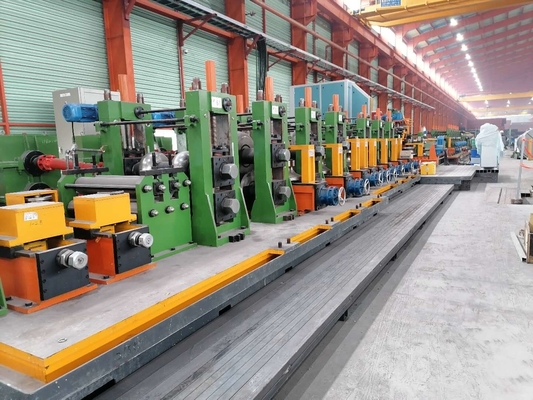

  • Forming & Sizing

The forming & sizing unit is the vital equipment to the pipe mill line. This unit abide by the roll frame theory. It could continue process some specification steel tube by no-contact welding, that is carrying some strip steel to this unit and let it passing the frame roll to frame tube raw, and then take the electric fluid together on the tube welding surface so as to treat the tube temperature higher to suit welding by the pressing roll welding, and then after cooling, forming sizing and flattener to product what is your demand tube.


  • Milling Saw

When the forming & sizing part sends the formed steel pipe to the saw, the saw car tracks to be synchronized with the pipe speed. Clamp the tube. The two sawing systems installed on the turntable take the saw blade to rotate on its own, and feed under the drive of the feed AC servo motor. The sawing system performs compound movement in the turntable and its own feed, and cuts the steel pipe along the cross-sectional shape track of the piece to be cut.Then each system relaxes back to its original position and waits for the next working cycle.



AC spindle motor: 22KWX2

AC drive servo motor: 45KW

Large plate rotation: 15KW

Feed motor: 4.4KWX2

Saw blade diameter: 400mm

Sawing accuracy: ≤±3mm

Cutting method: double saw blade, milling type

Tracking speed: the same as the unit speed

Equipment function: manual, automatic

Control method: AC servo positioning

Hydraulic system pressure: 12Mpa

Cutting feed adopts polar coordinate method





  • Transit roller + Unloading Rack

The pipes run along the Transit roller and to be automatically moved onto the Bench.



Air cooling: 50 meters

Blanking: 24 meters

Flat head: 24 meters

Hydraulic test: 24 meters

  • Hydraulic testing machine

Φ325~Φ530mm Double-station hydraulic testing machine


Technical performance parameters:

Diameter range of test steel pipe: φ219~φ530 mm

Test steel pipe thickness: 4~9mm

Length of test steel pipe: 6~10m

Test steel pipe material: Q235, Q345, X70

Maximum test pressure of steel pipe: Max 20.7MPa

Holding pressure time (settable): 3~15sec

Number of roots per test: 1 root/time

Sealing form: radial seal

Pipe body requirements: Straightness: pipe body ≤2mm/m, pipe end ≤3mm (pipe end length 1 meter), full length ≤20mm; pipe end deburring;

Pressure test medium: emulsion/water (recycled use)

Flushing method: pre-filled water (low pressure pump, water storage tank and accessories)

Drive motor for flushing and active alignment roller: FA67-26.6-M2.2-H2

Driving motor for flushing active rotating roller table: XWD4-59-1.1

Flushing active rotating roller table lifting cylinder: Φ100/Φ70-100

Low-pressure water filling method: liquid filling tank filling


Equipment working mode selection:

It has three working modes: manual, semi-automatic and automatic.

Start stop and emergency stop control.

It has the functions of normal start and stop control and emergency stop control in emergency situations. After an emergency stop, the actuator will be powered off, and the PLC input and output instructions will not be powered, which is convenient for the inquiry and diagnosis of fault information.


  • Flaw detection machine

This equipment is used to detect the surface and internal defects of the pipe body and welding to evaluate the quality of the product. It has high detection sensitivity, and can directly display the position, shape, size and severity of the defect, and the repeatability of the defect inspection is good.


  • End Facing Machine
  • Product specification parameters:
Pipe diameter Φ325~Φ530 mm
Pipe thickness 4~9mm
Product material Low alloy structural steel Q235,Q345,Q235,Q345,X60,X65,X70...
Length of finished product 6~12m
  • Workshop condition parameters:
Power supply AC380V 50HZ
Control power DC24V 50HZ
3.Technical technical parameters of unit equipment:
Angle of pipe end: 35°
Blunt edge width: 1.6±0.8mm
Inclination: API5L,GB/T9711.1,GB/T9711.2
Processing surface roughness: 6.3μm
Number of work position Single work position


  • Roller

Material: Cr12

Hardness of roller: HRC58-62

Deepness of quench hardening: ≥ 10mm

Roughness of surface: Ra≤0.8um


  • 800KW High Frequency Welder

Design parameters of solid state high frequency welder

·  Rated output power:800KW

·  Rated DC voltage: UdN=250V

· Rated DC current:: 4000A

· Out frequency: f=150-230kHz

· Total efficiency: η>85%

· Resonance form: Compound resonance

· Tank output form: No welding transformer output.

· Ripple Coefficient: <1%

· Welding mode: Induction welding

· Power distribution capacity: 1200KVA

· Input voltage: Three phase 380V/50Hz,3 phase 4 wire system

· Rated input current: I=1827A 1.2 Cooling system of cycling soft Water(Air-Water cooling system)

· Working water pressure(Mpa): 0.32Mpa

· Working flow(m3): 50-90m³

· Cooling capacity: 250KW

· Standard size(mm): 3500×1250×2650l

· Number of dragging devices:4 sets

The whole set of solid state HF welder comprise soft hefollowing seven parts: Rectifier cabinet, inverter cabinet, circulating soft water cooling system, step-down transformer, console, 3D adjustable bracket, and output leg.
