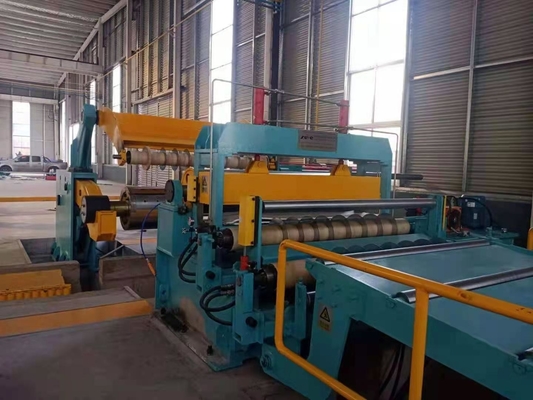

Thickness 0.8-4mm Width 800-1600mm Speed 90-150m/Min Sheet Coil Slitting Machine
Product Specifications
| Attribute | Value |
| Inner diameter | Φ508/Φ610/Φ760mm |
| Outer diameter | Φ2200mm |
| Width precision | ±0.20 mm (thickness 0.8-4) |
| Burr accuracy | ≤5% Plate thickness (0.08-0.20mm) |
| Coils open speed | 90-150m/min |
| Warranty | One year |
| Material | Q235, σs=250Mpa, σb=500Mpa |
Technical Parameters
Material Specification
Material: Low carbon HRC (Q235, σs=250Mpa, σb=500Mpa)
Coil Thickness: 0.8-4 mm
Coil Width: 800-1600mm
Coil Weight: ≤30 t
Inner diameter: Φ508/Φ610/Φ760mm
Outer diameter: ≤Φ2200mm
Finished Product Specification
| Material | Thickness | Slitter number | Speed |
| Q235 | 4mm | 10 | 120m/min |
| Q235 | 0.8-3mm | 8 | 170m/min |
Equipment Data
Power: Voltage 380V, Frequency 60HZ, Installed power Approx.330kw
Air power: Pressure 0.4-0.8Mpa, Air demand 0.2m3/min (State of compression)
Line direction: Face the operation console, Left to Right
Painting: According to the buyer's requirement
Equipment Composition
| No. | Name | Quantity | Noted |
| 1 | Coil preparation stage | 1 Set | |
| 2 | Coil car | 1 Set | AC4kw |
| 3 | Uncoiler | 1 Set | AC4kw |
| 4 | Pressure leading device | 1 Set | |
| 5 | Clamp & Straightener | 1 Set | AC55kw |
| 6 | Shearing | 1 Set | |
| 7 | 1# Accumulator | 1 Set | |
| 8 | Guiding device | 1 Set | |
| 9 | Pinch roll | 1 Set | |
| 10 | Slitter machine | 1 Set | DC110kw, include quick change knife device |
| 11 | Edge rewinder | 1 Set | YVP7.5kwX2 opposite vertex |
| 12 | Wear tape table and material tail pressing plate | 1 Set | |
| 13 | 2# Accumulator | 1 Set | |
| 14 | Seperation device | 1 Set | |
| 15 | Tension plate | 1 Set | |
| 16 | 3-roll tension burr extruding machine | 1 Set | |
| 17 | Steering roller and feed head guide plate | 1 Set | |
| 18 | Recoiler + Coiling support | 1 Set | YVP132kw-1000rpm |
| 19 | Unloading car | 1 Set | AC3kw |
| 20 | A WORD ARM | 1 Set | |
| 21 | Spacer and other process | 1 Set | Comes with 10 strips quantity use |
| 22 | Hydraulic penumatic system | 1 Set | Excluded hydraulic oil and Air power AC11kw |
| 23 | Electric system | 1 Set | |
| 24 | Oil pipe, Air pipe, cables | 1 Set | |
| 25 | Anchor bolts and accessories | 1 Set | |
Equipment Structure Description
Coil Storage Rack
Purpose: To store steel coils to be opened
Structure: V-shaped structure, steel plate welding, two bolts fixed on both sides of roadway
Technical specification: Loading weight 30t, Store coil width 800-1600mm
Coil Car
Purpose: To transport the coil material to the uncoiling machine
Structure: The car is installed in the roadway below the floor, which is mainly composed of the vehicle seat and traveling wheel shaft, v-shaped material frame and guide bar, traveling deceleration motor and lifting oil cylinder
Technical specification: V-shaped bracket is welded by steel plate, and nylon plate is laid on the surface. Motor AC4KW. Lifting oil cylinder Ø200X850st. Guide bar number four, Ø 110 mm diameter, chrome plated. One protective chain and one pair of rail
Uncoiler
Use: Support raw steel coil
Structure: Double support type. By the expansion and contraction of the drum, transmission box, transmission mechanism, pneumatic drum brake, roller on the middle slide
Technical specification: Drum three steps, increases range of respectively Φ 470-520 mm, Φ 570-620 mm, Φ 720-760 mm. Increases and oil cylinder specifications Ø 150 x100mm, 2pcs
Slitter Machine (Double Knives Base Type)
Usage: To cut the sheet material lengthways into various widths
Structure: Slider type. By the two sides of the tool, upper and lower shaft, shaft spacing adjustment mechanism, transmission device and so on. DC motor drives the tool shaft rotation through reducer, gear box and universal coupling, and the motor drives the side tool rest to open and close for convenient tool change. Include quick change knife device
3-Roll Tension Burr Extruding Machine
Purpose: To add tension and squeeze burrs

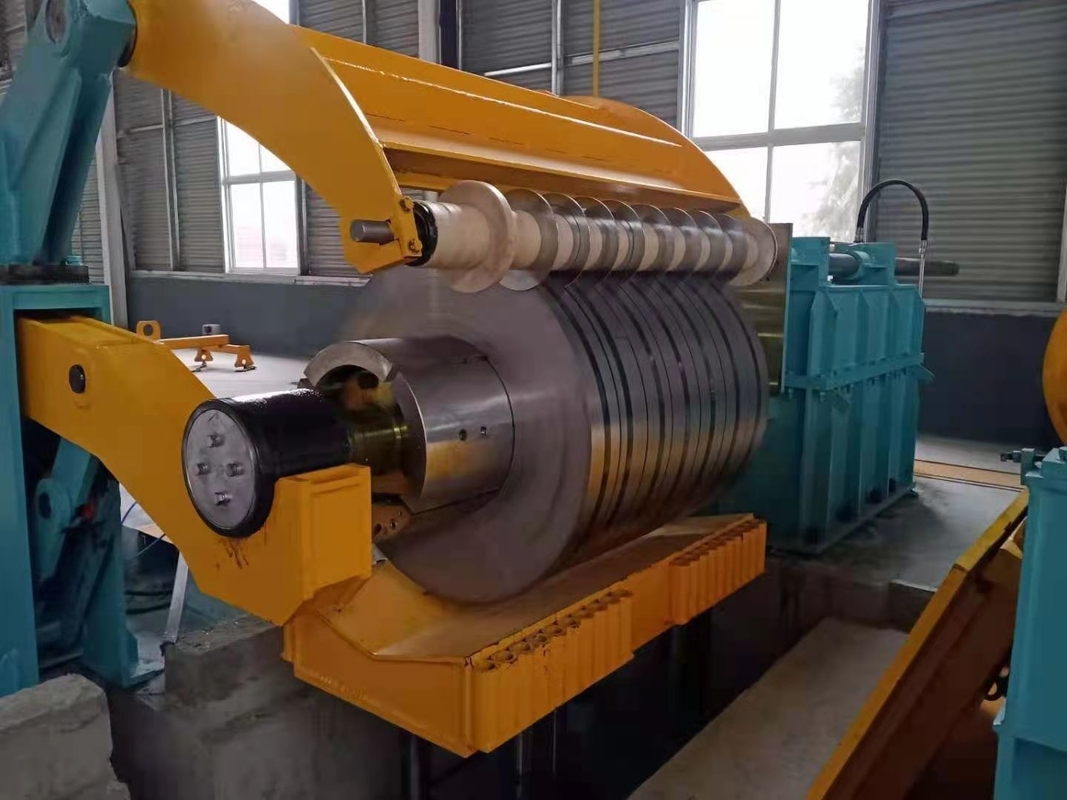

Recoiler
Usage: Rewind the material after slitting
Structure: The roller is composed of main shaft, wedge slide block, pull rod, clamp mouth and arc plate. The drum is driven by dc speed regulating motor, the cylinder drives radial expansion and contraction, and the arc plate has clamping jaws
Unloading Car
Usage: Remove the slitting coil material from the reel drum of the winder
Structure: The car is installed in the roadway below the floor, which is mainly composed of the car seat and walking wheel shaft, idler and guide bar, walking speed reduction motor and lifting oil cylinder. With anti-inverted rod
A WORD ARM
Coil weight: 30 ton
Rotate type: hydraulic
Cutting Tool, Spacer, Rubber Ring, Separator Disc and Spacer Sleeve
Comes with 10 cutting strips
