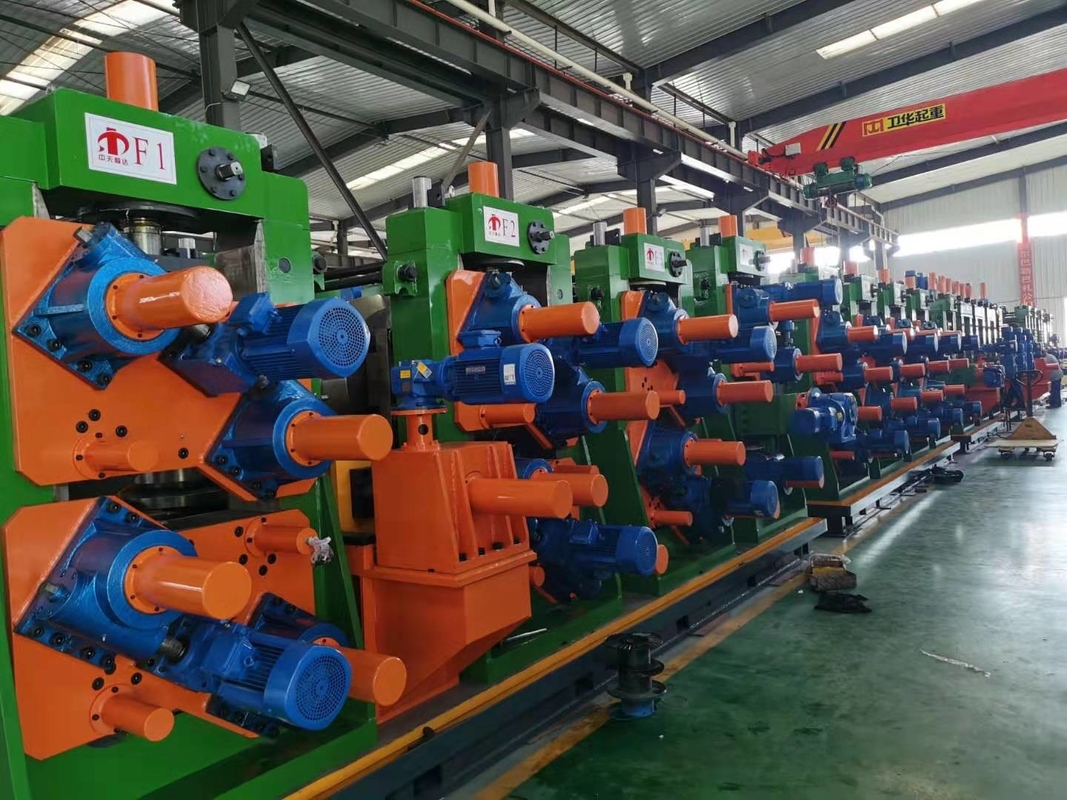

200x200mm High Frequency Welded Pipe Mill 14mm Thick Quick Change
  • 200x200mm High Frequency Welded Pipe Mill 14mm Thick Quick Change
  • 200x200mm High Frequency Welded Pipe Mill 14mm Thick Quick Change
  • 200x200mm High Frequency Welded Pipe Mill 14mm Thick Quick Change
  • 200x200mm High Frequency Welded Pipe Mill 14mm Thick Quick Change
  • 200x200mm High Frequency Welded Pipe Mill 14mm Thick Quick Change

200x200mm High Frequency Welded Pipe Mill 14mm Thick Quick Change

Product Details:
Place of Origin: China
Brand Name: TENGTIAN
Certification: CE ISO9000 BV
Model Number: 200x200
Detail Information
Place of Origin:
China
Brand Name:
TENGTIAN
Certification:
CE ISO9000 BV
Model Number:
200x200
Product Name:
High Frequency Welded Pipe Mill 200x200mm High Frequency Welded Pipe Mill 14.0mm Thick
Production:
Round Pipe
Feature:
Quick Change
Name:
Tube Mill
Other Pipe:
Square Pipe And Rectangular Pipe
Max Size:
100x100-200x200mm
Thickness:
3.0-14.0mm
Length:
6-12m
Rollers:
Include
Keywords:
High Frequency Welded Pipe Mill
Highlight:

High Light

Highlight:

200x200mm high frequency welded tube mill

,

14.0mm high frequency welded tube mill

,

quick change hf welded tube mill

Trading Information
Minimum Order Quantity:
1 set
Price:
$100000 to $1 million
Packaging Details:
standard export package
Delivery Time:
60 wording days
Payment Terms:
L/C,T/T,Western Union,MoneyGram
Supply Ability:
5 set/month
Product Description
200×200mm 14.0mm Thick High Frequency Welded Tube Mill with Quick Change
Product Specifications
Attribute Value
Product Name High Frequency Welded Pipe Mill 200×200mm
Production Round pipe, square pipe, rectangular pipe
Feature Quick change capability
Maximum Size 100×100-200×200mm
Thickness Range 3.0-14.0mm
Length 6-12m
Rollers Included
Machine Overview

This high frequency welded tube mill is designed to produce precision welded steel pipes including round, square, and rectangular profiles. The system features roll pass design for superior quality machining and high precision assembly.

Technical Specifications
Material Specifications
Parameter Specification
Standard Conforms to YB189-64 standard
Material Low carbon steel and low alloy constructional steel
Mechanical Properties δs≤345Mpa, δb≤610Mpa
Strip Width 270-800mm
Strip Thickness 3.0-14.0mm
Coil Dimensions Inner: φ480-φ570mm, Outer: φ1000-φ1800mm
Maximum Coil Weight ≤18T
Pipe Specifications
Parameter Specification
Pipe Dimensions Square: 100×100-200×200mm, Rectangular: Same size
Thickness 3.0-14.0mm
Length 6-12m
Cutting Precision 0-6mm
Forming Speed 10-50m/min
Buyer Requirements
  • Workshop: 120×6m, Height >5m (with crane to ground)
  • Power: Approximately 1212KW, 380V/50Hz/3phases
  • Cooling Water: Flow 20-30T/h, Pool Volume 30m³
  • Compressed Air: Flow 5m³/min, Pressure 5-7kg/cm²
  • Other requirements as specified by seller
Production Process
  1. Strip steel to coil
  2. Uncoiler
  3. End straightener
  4. Flattener
  5. Shear welder
  6. Storage material unit
  7. Forming, welding, cooling, pipe diameter sizing
  8. Pipe length sizing and cutting
  9. Inspection
  10. Packaging
Quality Assurance & Service

Our technical personnel will provide on-site installation, commissioning, and operation training. The equipment comes with a 12-month warranty from arrival date. Under normal operating conditions, we provide free repair or replacement for any quality-related issues.

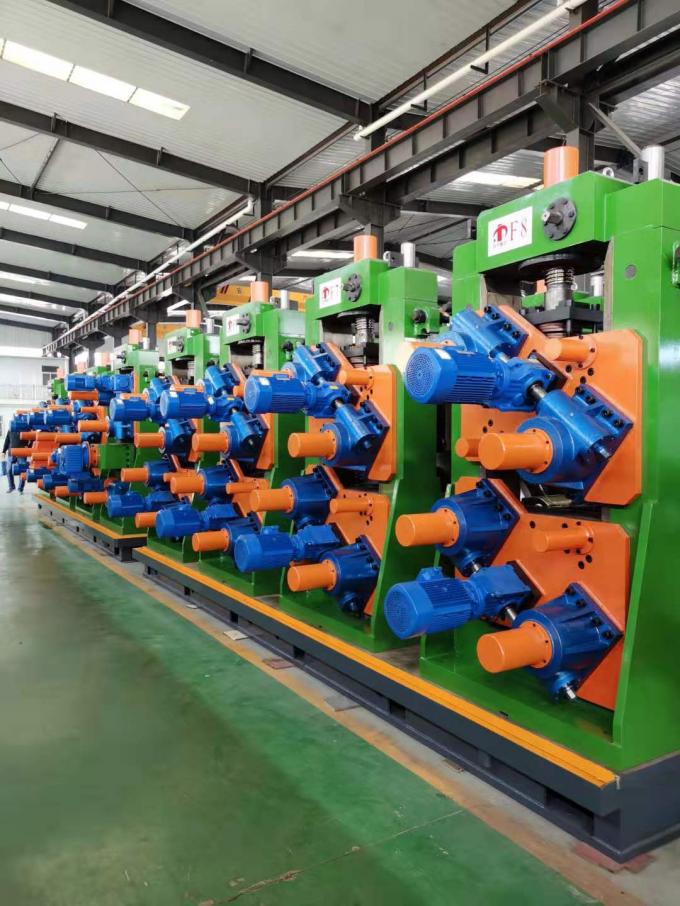

200×200mm High Frequency Welded Tube Mill in operation
