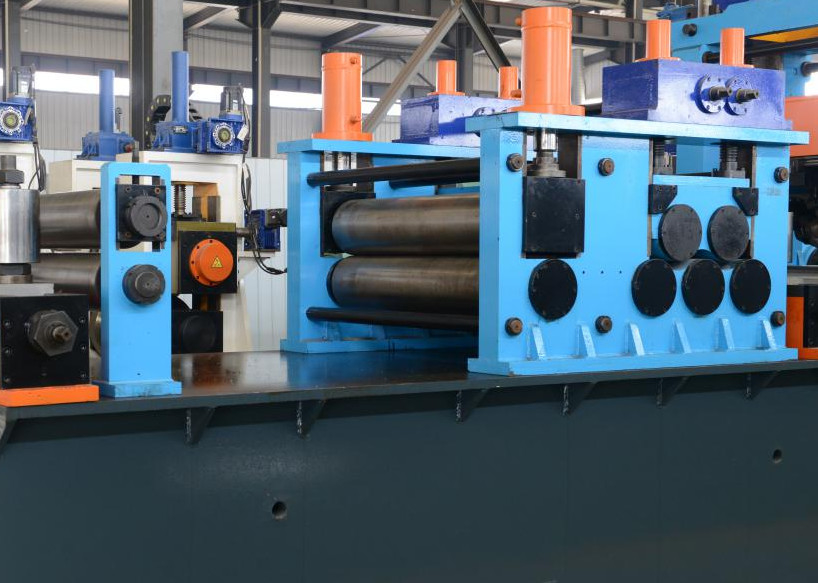

350x350mm Automatic Tube Mill for Square and Rectangular Pipes

Name: 350x350mm Automatic Tube Mill for Square and Rectangular Pipes
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: 350x350 mm
Price: 50,000.00 USD
Availability: InStock

Product Details:

Place of Origin:	China
Brand Name:	TENGTIAN
Certification:	CE ISO9000 BV
Model Number:	350x350 mm

Detail Information

Place of Origin:

China

Brand Name:

TENGTIAN

Certification:

CE ISO9000 BV

Model Number:

350x350 mm

Model:

HG 350x350mm

Production:

Square Pipe

Feature:

Full Automatic

Name:

Tube Mill

Other Pipe:

Square Pipe And Rectangular Pipe

Max Size:

350x350mm

Thickness:

5.0-16.0mm

Length:

6-12m

Rollers:

Include

Highlight:

High Light

Highlight:

350x350mm automatic tube mill

square pipe rolling automatic tube mill

350x350mm tube mill machine

Trading Information

Minimum Order Quantity:

1 set

Price:

$100000 to $1 million

Packaging Details:

standard export package

Delivery Time:

60 wording days

Payment Terms:

L/C,T/T,Western Union,MoneyGram

Supply Ability:

5 set/month

Product Description

350x350mm Automatic Tube Mill Square Pipe Rolling Forming Machine

Product Specifications

Attribute	Value
Model	HG 350x350mm
Production	Square pipe
Feature	Full automatic
Name	Tube mill
Other pipe	Square pipe and Rectangular pipe
Max size	350x350mm
Thickness	5.0-16.0mm
Length	6-12m
Rollers	Included

Machine Overview

This automatic tube mill is designed to produce high-quality welded steel pipes, including round pipes, square pipes, and deformed pipes. Featuring precision roll pass design, the production line delivers excellent machining quality and high assembly precision.

Technical Specifications

Material Specifications:

Standard: SPHC, SPHT-2, SS 400, SS440, SS490
Material: Low carbon steel and low alloy constructional steel
Mechanical properties: σb≤520Mpa, σs≤365MPa
Strip Width: 390-1400mm
Strip Thickness: 5.0-16.0mm
Inner Diameter of Coils: Φ508mm (buyer should confirm)
Outer Diameter of Coils: Φ1300～φ1760mm (buyer should confirm)
Coil Weight: ≤30T

Pipe Specifications:

Round pipe: φ125-φ426mm
Square tube: 100x100--350x350mm
Length: 6m
Pipe-cutting Precision: 0-6mm
Forming Speed: Max 80m/min (max size and thickness cannot reach max speed)

Buyer-Supplied Requirements:

Workshop: 180x6m, H＞5m (with crane to ground)
Power: Approx. 450KW 380V/50Hz/3phases
Circulation Cooling Water (whole system): Flow: 20T/h～30 T/h, Pool Volume: 30m³
Compressed Air (whole system): Flow: 5m³/min, Pressure: 5-7kg/cm²
Cable: All cable outside of machine to be purchased after machine installation

Production Process

Strip steel to coil → Uncoiler → End straightener → Flattener → Shear welder → Storage material unit → Forming, welding, cooling → Accurate pipe diameter sizing → Accurate pipe length sizing, cutting → Inspection → Packaging

Quality Assurance & Warranty

Our technical service personnel will be on-site for equipment installation, debugging, and commissioning. We provide comprehensive operation and maintenance training for your personnel. The equipment comes with a 12-month warranty from the date of arrival. Under normal operating conditions, we will repair or replace any defective parts free of charge.
