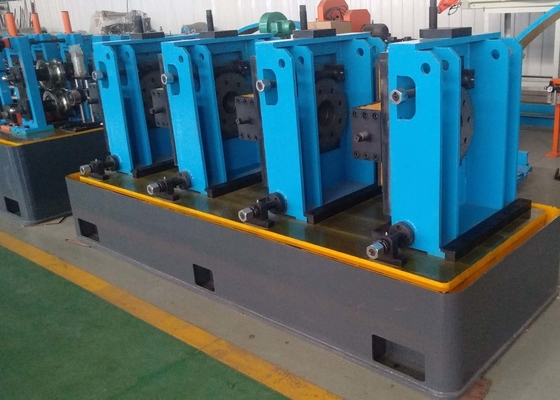

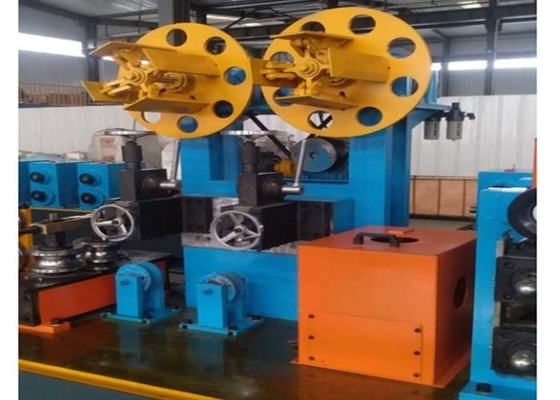

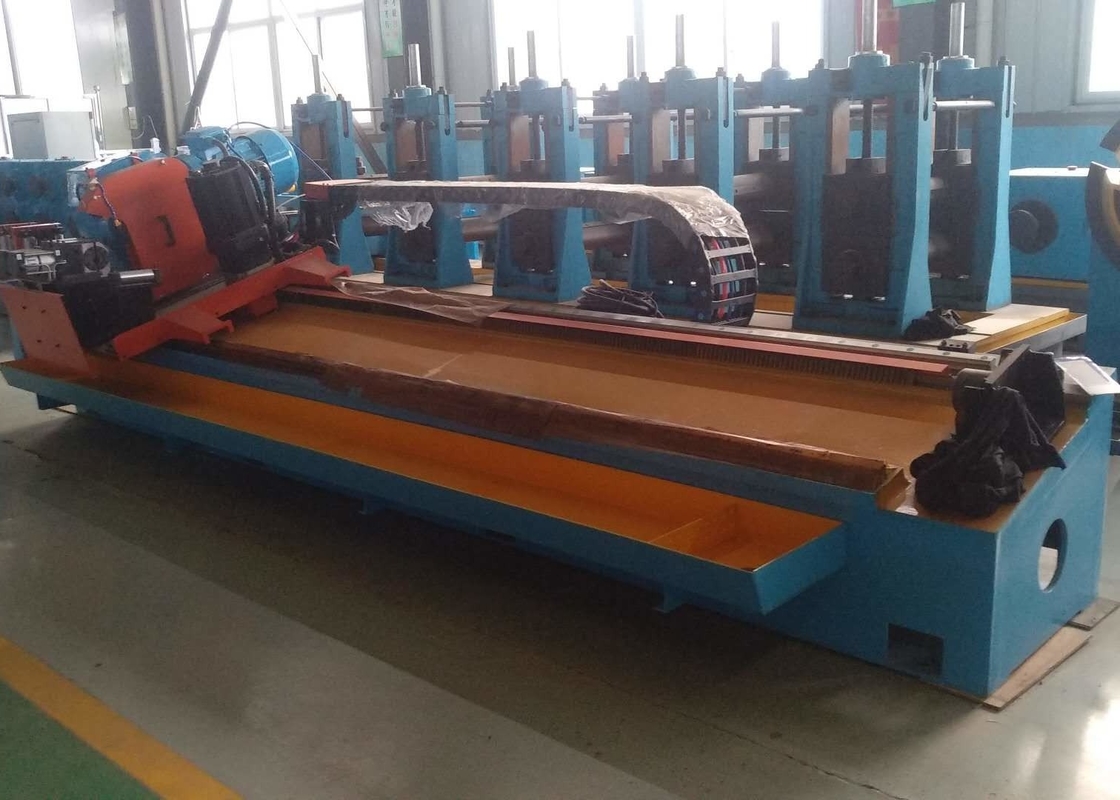

BV Passed 60mm square and round tube Steel Welded Pipe Mill line

BV Passed 60mm square and round tube Steel Welded Pipe Mill line
BV Passed 60mm square and round tube Steel Welded Pipe Mill line BV Passed 60mm square and round tube Steel Welded Pipe Mill line BV Passed 60mm square and round tube Steel Welded Pipe Mill line BV Passed 60mm square and round tube Steel Welded Pipe Mill line

Large Image :  BV Passed 60mm square and round tube Steel Welded Pipe Mill line

Product Details:
Place of Origin: China
Brand Name: TENGTIAN
Certification: CE ISO9000 BV
Model Number: 60mm
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: standard export package
Delivery Time: 60 wording days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 5 set/month
Detailed Product Description
Model: HG 60 Production: Round Pipe
Feature: Erw Name: Tube Mill
Other Pipe: Square Pipe And Rectangular Pipe Max Size: 50x50mm
Thickness: 3mm Length: 6-12m
Rollers: Include
High Light:

60mm erw pipe mill

,

bv erw pipe mill

,

precision erw steel pipe mill

60mm Round Pipe Making Machine for ERW pipe mill





Machine General Introduction



It is designed to produce welded steel pipes ,include round pipe , squre pipe and deformed pipe.

Adopting roll pass design, the production line can manufacture welded steel pipes with good quality machining and high precision assembling.



Main Parameters and Specifications



(1)Material Specifications:

Standard

carbon steel, hot galvanized steel

Material

Low carbon steel and low alloy constructional steel

Mechanical properties

σb≤520Mpa,σs≤365MPa

Strip Width

110-200mm

Strip Thickness:

0.9-3mm

Inner Diameter of Coils

Φ508mm

Outer Diameter of Coils

Φ1300~φ2000mm

Coil Weight

≤11T

(2)Pipe Specification

Pipe Diameter

Round pipe:φ38-60mm

Square pipe :30x30,40x40,50x50mm

Rec Pipe:40x20,50x30,60x40

Thickness:0.9-3.0mm

Length

6m

Pipe-cutting Precision

0-6mm

Forming Speed

Max 160m/min for 2mm thickness

(3)The buyer should self-supply

Work shop

95x12m, H>5m(crane to ground)

Power

Approx.850KW 380V/60Hz/3phases

Circulation Cooling Water(whole system)

Flow:30+30 CBM

Pool Volume:40m3

Compressed Air

(whole system)

Flow:5m3/min

Pressure: 5-7kg/ cm2

Cable

All cable outside of my machine, you buy after machine fix location.



Parameter Table


Model Diameter(mm) Thickness(mm) Speed(m/min) Main power(kw) HF welder(KW) Area(m2)
HG32   10-32                   0.4-1.5              30-100              250                      100             12x100
HG50   12-50                   0.6-2.5              30-90                300                       150            12x100
HG76   12-76                      1-3                 30-90                320                       200             12x100
HG89   32-89                       1-4                30-80                350                       300             12x100
HG114  45-114                 1.5-5.0             30-60                 400                       300            12x100
HG165 60-165                     3-7                30-50                 600                       400            12x100
HG219 114-219                   4-8                 20-40                800                       500            15x150
HG273 114-273                 4-10                15-30                1000                      600             18x160
HG325 165-325                 4-10                10-30                1200                      600             12x100
HG426 165-426                 4-12.7              8-25                 1400                      800              12x100
HG508 219-508                 4-16                 8-20                 2000                     1000             12x100



Working Process



strip steel to coil→uncoiler →end straightener→flattener→shear welder→storage material unit →formed,welding,cooling,accurate pipe Dia. size →accurate pipe length size,cutting→inspection →package



Quality and After-sale Service Warranty



Equipment arriving at the buyer, the technical services personnel at the scene debugging, maintenance, equipment commissioning, commissioning, operation and maintenance instruction, responsible for technical training for equipment operation and maintenance personnel of the buyer. Used in users abide by the rules, under normal operating equipment, since 12 months from the date of the arrival of the equipment, such as positively impact on the quality to use, parts damage lead to equipment can't normal work, factory will give the repair or replacement free of charge.
