3x1600mm Carbon Automatic Steel Sheet Slitting Machine Line CE

3x1600mm Carbon Automatic Steel Sheet Slitting Machine Line CE
3x1600mm Carbon Automatic Steel Sheet Slitting Machine Line CE 3x1600mm Carbon Automatic Steel Sheet Slitting Machine Line CE 3x1600mm Carbon Automatic Steel Sheet Slitting Machine Line CE 3x1600mm Carbon Automatic Steel Sheet Slitting Machine Line CE

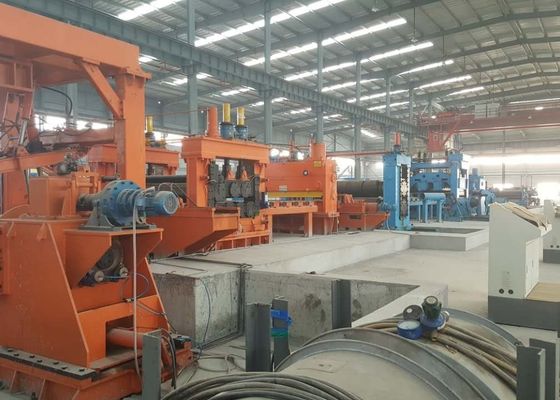

Large Image :  3x1600mm Carbon Automatic Steel Sheet Slitting Machine Line CE

Product Details:
Place of Origin: China
Brand Name: TENGTIAN
Certification: CE ISO9000 BV
Model Number: 3x1600mm
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: standard export package
Delivery Time: 60 wording days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 5 set/month
Detailed Product Description
Model: HG 1600x3 Production: Steel
Feature: Automatic Name: Tube Mill
Other Pipe: Square Pipe And Rectangular Pipe Max Size: 1600X3
Thickness: 3mm Length: No Limited
Rollers: Include
High Light:

3x1600mm automatic steel sheet slitting line

,

carbon automatic steel sheet slitting line

,

ce automatic steel sheet slitting line

3x1600mm Carbon Automatic Steel Sheet Slitting Machine Line CE





Machine General Introduction



Slitting the width coil to small coil.Slitting Line mainly composed of uncoiler,feeder,slitterand recoiler.Its function is to slit a wide coil to statedwidth strips coil along with the length direction whichcan be used for milling.welding pipe,cold bendforming,stamping as billet.At same time,changingdifferent material blade can slit various metal coils.



Main Parameters and Specifications



(1)Material Specifications:

Standard

carbon steel, hot galvanized steel

Material

Low carbon steel and low alloy constructional steel

Mechanical properties

σb≤520Mpa,σs≤365MPa

Strip Width

110-1600mm

Strip Thickness:

1-5mm

Inner Diameter of Coils

Φ508mm

Outer Diameter of Coils

Φ1300~φ2000mm

Coil Weight

≤11T

(2)Coil Specification

Pipe Diameter

Φ1300~φ2000mm

Length

No limited

Pipe-cutting Precision

0-6mm

Forming Speed

Max 160m/min for 2mm thickness

(3)The buyer should self-supply

Work shop

95x12m, H>5m(crane to ground)

Power

Approx.850KW 380V/60Hz/3phases

Circulation Cooling Water(whole system)

Flow:30+30 CBM

Pool Volume:40m3

Compressed Air

(whole system)

Flow:5m3/min

Pressure: 5-7kg/ cm2

Cable

All cable outside of my machine, you buy after machine fix location.




Working Process



strip steel to coil→uncoiler →end straightener→flattener→shear welder→storage material unit →formed,welding,cooling,accurate pipe Dia. size →accurate pipe length size,cutting→inspection →package

3x1600mm Carbon Automatic Steel Sheet Slitting Machine Line CE 0



Packaging & Delivery



Packaging Details

This kind of machine should adopt nude packaging and sea shipping by container.

Delivery Time

Shipped in 45 days after payment



Quality and After-sale Service Warranty



Equipment arriving at the buyer, the technical services personnel at the scene debugging, maintenance, equipment commissioning, commissioning, operation and maintenance instruction, responsible for technical training for equipment operation and maintenance personnel of the buyer. Used in users abide by the rules, under normal operating equipment, since 12 months from the date of the arrival of the equipment, such as positively impact on the quality to use, parts damage lead to equipment can't normal work, factory will give the repair or replacement free of charge.



3x1600mm Carbon Automatic Steel Sheet Slitting Machine Line CE 1
