Product Details:
Payment & Shipping Terms:
|
| Model: | HG 38 | Production: | Square Pipe,round Pipe |
|---|---|---|---|
| Name: | Tube Mill | Other Pipe: | L T Z Pipe |
| Max Size: | 38mm | Thickness: | 2mm |
| Length: | 6-12m | Rollers: | Cr12,Cr12Mov |
| High Light: | erw pipe mill machine,precision erw tube mill machine,precision pipe mill machine |
||

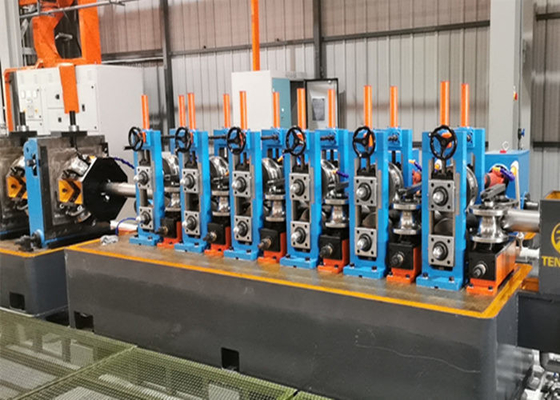

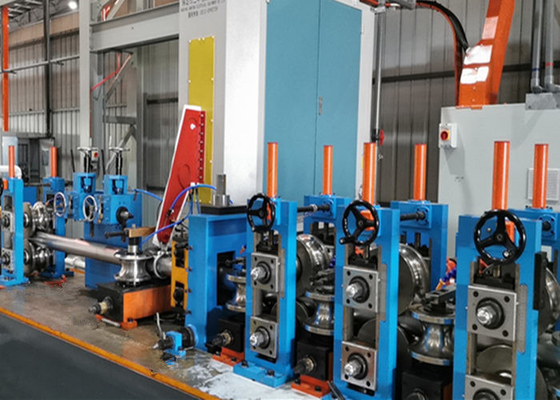

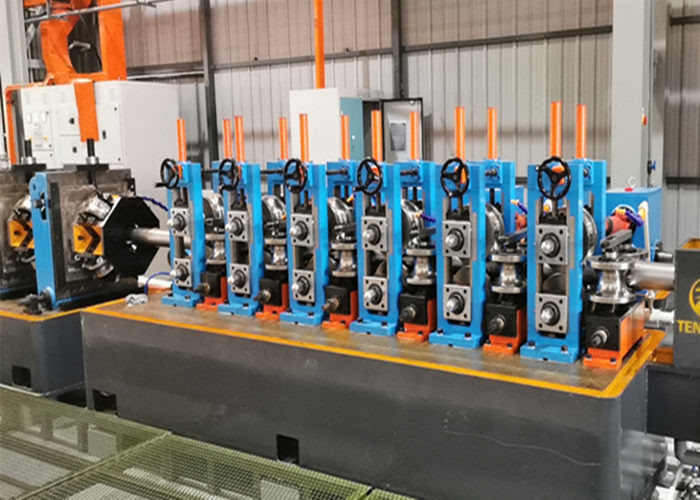

The tube mill machine is designed to produce welded steel pipes ,include round pipe , squre pipe and deformed pipe,LTZ pipe.
Adopting roll pass design, the production line can manufacture welded steel pipes with good quality machining and high precision assembling.we can design the machine size according to customer different require
| (1)Material Specifications: | |
| Standard | carbon steel,galvanized steel |
| Material | Low carbon steel and low alloy constructional steel |
| Mechanical properties | σb≤520Mpa,σs≤365MPa |
| Strip Width | 47-120mm |
| Strip Thickness: | 0.7-2.0mm |
| Inner Diameter of Coils | Φ508mm |
| Outer Diameter of Coils | Φ1300～φ2000mm |
| Coil Weight | ≤3T |
| (2)Pipe Specification | |
| Pipe Diameter |
Square pipe :12x12-30x30mm Thickness:0.7-2.0mm |
| Length | 6m |
| Pipe-cutting Precision | 0-6mm |
| Forming Speed | Max 120m/min for 2mm thickness |
| (3)The buyer should self-supply | |
| Work shop | 50x12m, H＞5m(crane to ground) |
| Power | Approx.850KW 380V/60Hz/3phases |
| Circulation Cooling Water(whole system) |
Flow:30+30 CBM Pool Volume:40m3 |
|
Compressed Air (whole system) |
Flow:5m3/min Pressure: 5-7kg/ cm2 |
| Cable | All cable outside of my machine, you buy after machine fix location. |
Equipment arriving at the buyer, the technical services personnel at the scene debugging, maintenance, equipment commissioning, commissioning, operation and maintenance instruction, responsible for technical training for equipment operation and maintenance personnel of the buyer. Used in users abide by the rules, under normal operating equipment, since 12 months from the date of the arrival of the equipment, such as positively impact on the quality to use, parts damage lead to equipment can't normal work, factory will give the repair or replacement free of charge.
