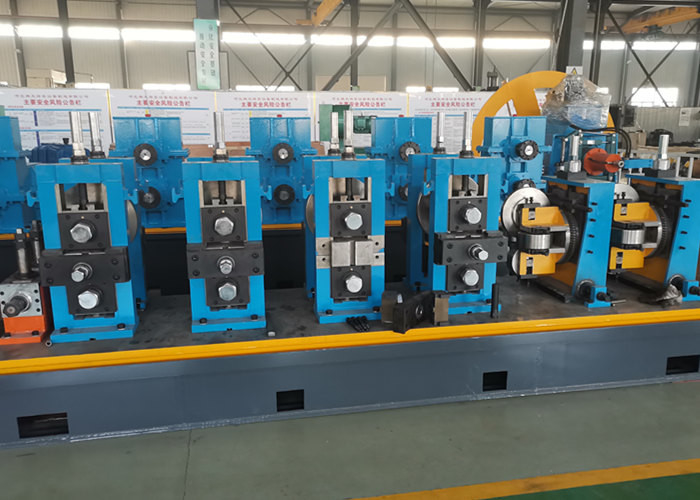

70x70 Pipe Making Machine Customizable Square Tube Mill

70x70 Pipe Making Machine Customizable Square Tube Mill
70x70 Pipe Making Machine Customizable Square Tube Mill 70x70 Pipe Making Machine Customizable Square Tube Mill

Large Image :  70x70 Pipe Making Machine Customizable Square Tube Mill

Product Details:
Place of Origin: CHINA
Brand Name: TENGTIAN
Certification: CE ISO9000 BV
Model Number: HG70x70
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: standard export package
Delivery Time: 60 wording days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 5 set/month
Detailed Product Description
Model: HG 70x70 Production: Square Tube
Other Pipe: L T Z Pipe Max Size: Customizable
Thickness: Customizable Rollers: Cr12
Pipe Material: HRC,CRC Pipe Length: 6-12m
High Light:

70x70 square tube mill

,

customizable square tube mill

,

70x70 square pipe mill

70x70 Square Pipe Making Machine Square Tube Mill





1.Machine General Introduction



it is designed to produce welded steel pipes ,include squre pipe and deformed pipe,LTZ pipe.

Adopting roll pass design, the production line can manufacture welded steel pipes with good quality machining and high precision assembling.and this type machine product all the square tube only need one set roller,no need change roller,save roller cost.



2.Main Parameters and Specifications:



1)Material Specifications:
Standard carbon steel,galvanized steel
Material Low carbon steel and G.I steel
Mechanical properties σb≤520Mpa,σs≤365MPa
Strip Width 100-480mm
Strip Thickness: 1.0-4.0mm
Inner Diameter of Coils Φ508mm
Outer Diameter of Coils Φ1300~φ2000mm
Coil Weight ≤4T
(2)Pipe Specification
Pipe Diameter

Square pipe :25x25-70x70mm

Thickness:1.0-4.0mm

Length 6m
Pipe-cutting Precision 0-6mm
Forming Speed Max 120m/min for 2mm thickness
(3)The buyer should self-supply
Work shop 50x6m, H>5m(crane to ground)
Power Approx.850KW 380V/60Hz/3phases
Circulation Cooling Water(whole system)

Flow:30+30 CBM

Pool Volume:40m3

Cable All cable outside of my machine, you buy after machine fix location.


3.Working Process:

strip steel to coil→uncoiler →shear welder→storage material unit →formed,welding,cooling,accurate pipe Dia. size →accurate pipe length size,cutting→inspection →package



4.Quality and After-sale Service Warranty

Equipment arriving at the buyer, the technical services personnel at the scene debugging, maintenance, equipment commissioning, commissioning, operation and maintenance instruction, responsible for technical training for equipment operation and maintenance personnel of the buyer. Used in users abide by the rules, under normal operating equipment, since 12 months from the date of the arrival of the equipment, such as positively impact on the quality to use, parts damage lead to equipment can't normal work, factory will give the repair or replacement free of charge.





70x70 Pipe Making Machine Customizable Square Tube Mill 0
70x70 Pipe Making Machine Customizable Square Tube Mill 1
