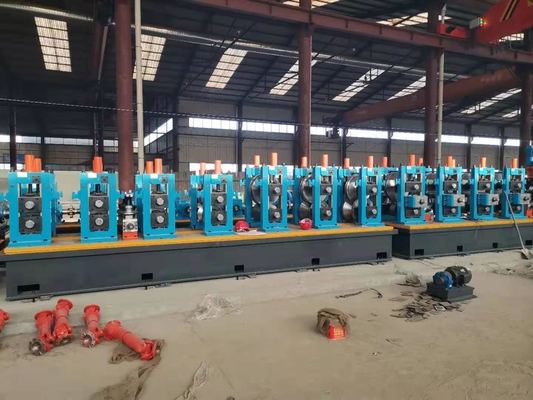

120x120x4mm Direct Forming Steel Pipe Mill Square Tube Making Machine

120x120x4mm Direct Forming Steel Pipe Mill Square Tube Making Machine
120x120x4mm Direct Forming Steel Pipe Mill Square Tube Making Machine 120x120x4mm Direct Forming Steel Pipe Mill Square Tube Making Machine 120x120x4mm Direct Forming Steel Pipe Mill Square Tube Making Machine 120x120x4mm Direct Forming Steel Pipe Mill Square Tube Making Machine

Large Image :  120x120x4mm Direct Forming Steel Pipe Mill Square Tube Making Machine

Product Details:
Place of Origin: China
Brand Name: TENGTIAN
Certification: CE ISO9000 BV
Model Number: 120x120x8
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: standard export package
Delivery Time: 60 wording days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 5 set/month
Detailed Product Description
Model: HG 120 Production: Square Pipe
Feature: Direct Forming Name: Tube Mill
Other Pipe: Square Pipe And Rectangular Pipe Max Size: 50x50-120x120mm
Thickness: 2.0-4.0mm Length: 6-12m
Rollers: Include
High Light:

4mm steel pipe mill

,

square tube making steel pipe mill

,

direct forming square tube mill

120x120x4mm Direct Forming steel Square Tube making Machine price





Machine General Introduction



HG120x120 High-Frequency Welded Pipe Production Line is designed to produce welded round pipes50x50-120x120mm in diameter and 2.0-4.0mm in wall thickness. Adopting roll pass design, the production line can manufacture welded steel pipes with good quality machining and high precision assembling.



Main Parameters and Specifications



(1)Material Specifications:

Standard

Conforming to the YB189-64 standard

Material

Low carbon steel and low alloy constructional steel

Mechanical properties

δs≤345Mpa δb≤610Mpa

Strip Width

200-480mm

Strip Thickness:

2.0-4.0mm

Inner Diameter of Coils

φ480~φ570mm

Outer Diameter of Coils

φ1000~φ1800mm

Coil Weight

≤10T

(2)Pipe Specification

Pipe Diameter

Square pipe:50x50-120x120mm

Same size Rec. pipe

Thickness:2.0-4.0mm

Length

6-12m

Pipe-cutting Precision

0-6mm

Forming Speed

10-50m/min

(3)The buyer should self-supply

Work shop

60x6m, H>5m(crane to ground)

Power

Approx.1212KW 380V/50Hz/3phases

Circulation Cooling Water(whole system)

Flow:20T/h~30 T/h

Pool Volume:30m3

Compressed Air

(whole system)

Flow:5m3/min

Pressure: 5-7kg/ cm2

Others

Seller will supply list



Working Process



strip steel to coil→uncoiler →end straightener→flattener→shear welder→storage material unit →formed,welding,cooling,accurate pipe Dia. size →accurate pipe length size,cutting→inspection →package

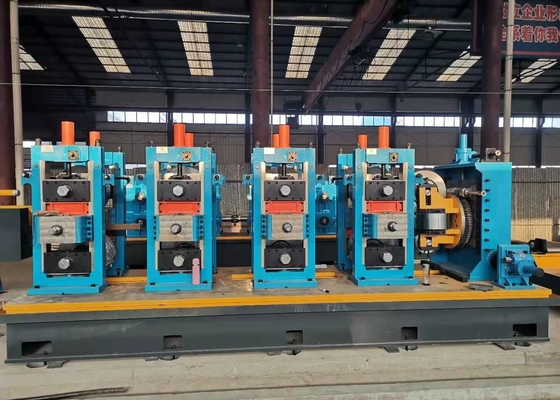

120x120x4mm Direct Forming Steel Pipe Mill Square Tube Making Machine 0



Quality and After-sale Service Warranty



Equipment arriving at the buyer, the technical services personnel at the scene debugging, maintenance, equipment commissioning, commissioning, operation and maintenance instruction, responsible for technical training for equipment operation and maintenance personnel of the buyer. Used in users abide by the rules, under normal operating equipment, since 12 months from the date of the arrival of the equipment, such as positively impact on the quality to use, parts damage lead to equipment can't normal work, factory will give the repair or replacement free of charge.



Our Advantage



For this Line, we adopt “Turks Head Forming Technology”, the advantage as follows:

(1) Save Rollers, Some part of Rollers can be common used. (Especially for Square & Rectangular Pipe)
(2) The welding line can be in any position of pipe.
(3) It can prevent the surface of pipe be scratched.
(4) The Max. Thickness of the Round Pipe and Square Pipe can be same. (Generally, the thickness for square pipe is less than Round pipe)
(5) The forming is much better, the shape of Square & Rectangular pipe is very beautiful. (Very suitable for making Square & Rectangular Pipe)

(6) The 4 sides of turks head forced on the steel pipe at same time, can reduce the damage of the mill, protective the tube mill, Increased the using life.

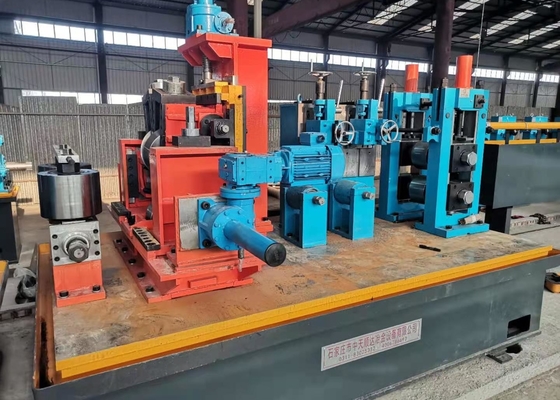

120x120x4mm Direct Forming Steel Pipe Mill Square Tube Making Machine 1



Company Introduction



Hebei tengtian weldedpipe equipment manufacturing co.,ltd is a collection of scientific research,production ,sales and service as one of the high frequency welded pipe equipment and opening cold bend steel equipment professional manufacturers.Our company is specializing in the production of high-frequency welded pipe,slitting,opening cold bend steel,stainless steel units and other equipment of the enterprise,the company has a skilled and business ability strong vibrant team.has been exported to South Korea,Vietnam,Indonesia,South Africa,Kazakhstan and other dozens of countries and regions,by domestic and foreign merchants high praise.

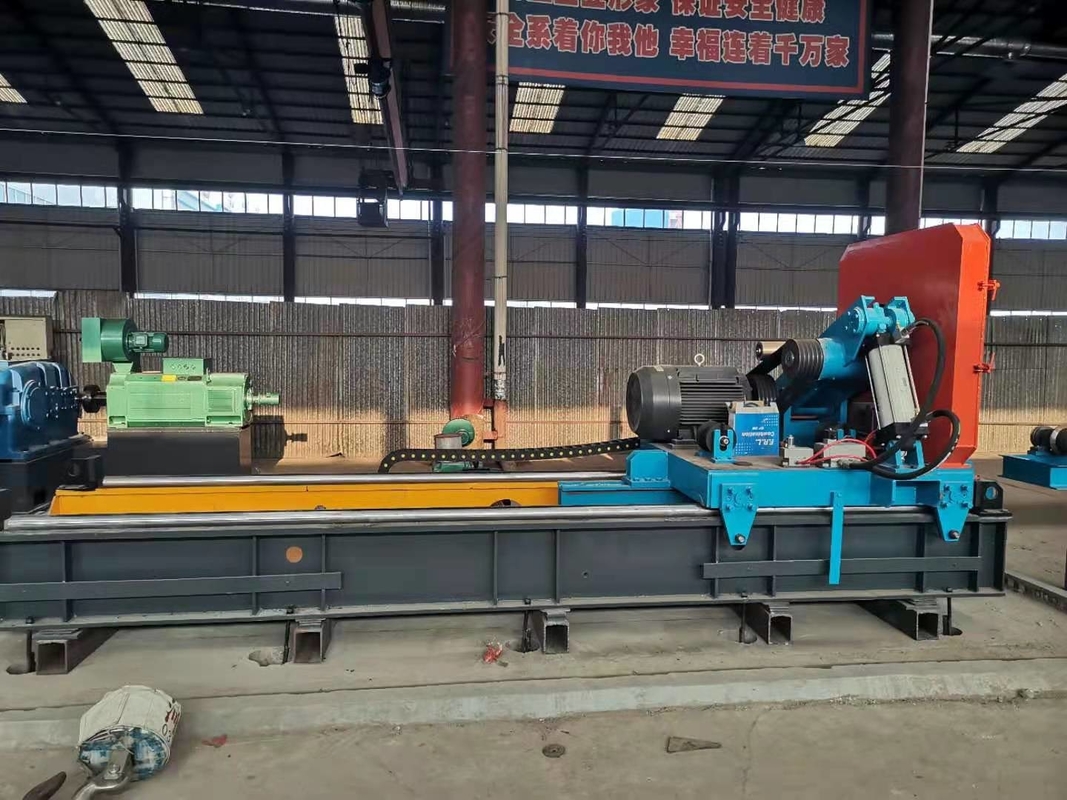

120x120x4mm Direct Forming Steel Pipe Mill Square Tube Making Machine 2
