| Model: | HG 127 | Production: | Round Pipe |
|---|---|---|---|
| Feature: | High Precision | Name: | Tube Mill |
| Other Pipe: | Square Pipe And Rectangular Pipe | Max Size: | 50-127mm |
| Thickness: | 2.0-4.0mm | Length: | 6-12m |
| Rollers: | Include | ||
| High Light: | 127mm welded pipe mill,4mm welded pipe mill,precision welded tube mill |
||

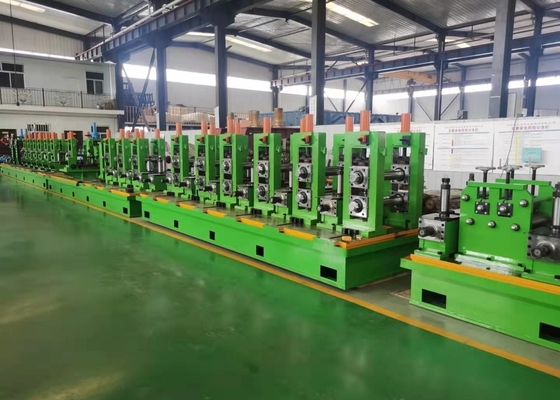

HG127 High-Frequency Welded Pipe Production Line is designed to produce welded round pipes50-127mm in diameter and 2.0-4.0mm in wall thickness. Adopting roll pass design, the production line can manufacture welded steel pipes with good quality machining and high precision assembling.
(1)Material Specifications: | |
Standard | Conforming to the YB189-64 standard |
Material | Low carbon steel and low alloy constructional steel |
Mechanical properties | δs≤345Mpa δb≤610Mpa |
Strip Width | 200-400mm |
Strip Thickness: | 2.0-4.0mm |
Inner Diameter of Coils | φ480～φ570mm |
Outer Diameter of Coils | φ1000～φ1800mm |
Coil Weight | ≤10T |
(2)Pipe Specification | |
Pipe Diameter | Round pipe:50-127mm |
Length | 6-12m |
Pipe-cutting Precision | 0-6mm |
Forming Speed | 10-50m/min |
(3)The buyer should self-supply | |
Work shop | 60x6m, H＞5m(crane to ground) |
Power | Approx.1212KW 380V/50Hz/3phases |
Circulation Cooling Water(whole system) | Flow:20T/h～30 T/h |
Compressed Air | Flow:5m3/min |
Others | Seller will supply list |
strip steel to coil→uncoiler →end straightener→flattener→shear welder→storage material unit →formed,welding,cooling,accurate pipe Dia. size →accurate pipe length size,cutting→inspection →package
Equipment arriving at the buyer, the technical services personnel at the scene debugging, maintenance, equipment commissioning, commissioning, operation and maintenance instruction, responsible for technical training for equipment operation and maintenance personnel of the buyer. Used in users abide by the rules, under normal operating equipment, since 12 months from the date of the arrival of the equipment, such as positively impact on the quality to use, parts damage lead to equipment can't normal work, factory will give the repair or replacement free of charge.
| Equipment Installation |
| All connections and fittings from the power source, air source, water source and hydraulic station to each of the machines, wire cable, pipe of the line. |
| Assistant equipment such as crane, air compressor, air container, water pump, water cooling device,the water pipe of the line, water and gas. |
| Raw material and consumable parts such as steel strip, welding wire, saw blade, engine oil and ferrite. |
