Pipe 219mm Diameter Production Round Tube Mill Carbon Steel Welded

Pipe 219mm Diameter Production Round Tube Mill Carbon Steel Welded
Pipe 219mm Diameter Production Round Tube Mill Carbon Steel Welded Pipe 219mm Diameter Production Round Tube Mill Carbon Steel Welded Pipe 219mm Diameter Production Round Tube Mill Carbon Steel Welded Pipe 219mm Diameter Production Round Tube Mill Carbon Steel Welded

Large Image :  Pipe 219mm Diameter Production Round Tube Mill Carbon Steel Welded

Product Details:
Place of Origin: China
Brand Name: TENGTIAN
Certification: CE ISO9000 BV
Model Number: 219
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: standard export package
Delivery Time: 60 wording days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 5 set/month
Detailed Product Description
Model: HG 219 Production: Round Pipe
Feature: High Precision Name: Tube Mill
Other Pipe: Square Pipe And Rectangular Pipe Max Size: 150-219mm
Thickness: 2.0-4.0mm Length: 6-12m
Rollers: Include
High Light:

219mm diameter round tube mill

,

carbon steel welded round tube mill

,

219mm diameter carbon steel tube mill

Round Pipe Of 219mm diameter production Carbon Steel Welded Pipe Mill





Machine General Introduction

HG 219 High-Frequency Welded Pipe Production Line is designed to produce welded round pipes150-219mm in diameter and 2.0-4.0mm in wall thickness. Adopting roll pass design, the production line can manufacture welded steel pipes with good quality machining and high precision assembling.



Main Parameters and Specifications



(1)Material Specifications:
Standard Conforming to the YB189-64 standard
Material Low carbon steel and low alloy constructional steel
Mechanical properties δs≤345Mpa δb≤610Mpa
Strip Width 200-700mm
Strip Thickness: 2.0-4.0mm
Inner Diameter of Coils φ480~φ570mm
Outer Diameter of Coils φ1000~φ1800mm
Coil Weight ≤10T
(2)Pipe Specification
Pipe Diameter

Round pipe:150-219mm

Same size Rec. pipe

Thickness:2.0-4.0mm

Length 6-12m
Pipe-cutting Precision 0-6mm
Forming Speed 10-50m/min
(3)The buyer should self-supply
Work shop 60x6m, H>5m(crane to ground)
Power Approx.1212KW 380V/50Hz/3phases
Circulation Cooling Water(whole system)

Flow:20T/h~30 T/h

Pool Volume:30m3

Compressed Air

(whole system)

Flow:5m3/min

Pressure: 5-7kg/ cm2

Others Seller will supply list

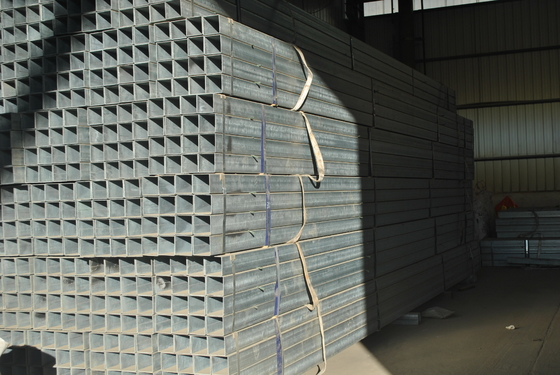

Pipe 219mm Diameter Production Round Tube Mill Carbon Steel Welded 0


Working Process



Scroll up → Uncoil → Cutting head, tail → Strip Steel head-tail butt welding → Spiral accumulator → Forming → High frequency induction welding → Removing external burr → Sizing → Cutting → Checking& collecting → Binding → Weighing → Marking → Accessing Warehouse

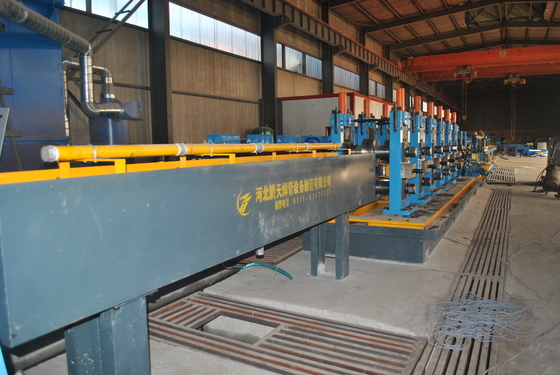

Pipe 219mm Diameter Production Round Tube Mill Carbon Steel Welded 1



Quality and After-sale Service Warranty



Equipment arriving at the buyer, the technical services personnel at the scene debugging, maintenance, equipment commissioning, commissioning, operation and maintenance instruction, responsible for technical training for equipment operation and maintenance personnel of the buyer. Used in users abide by the rules, under normal operating equipment, since 12 months from the date of the arrival of the equipment, such as positively impact on the quality to use, parts damage lead to equipment can't normal work, factory will give the repair or replacement free of charge.



Installation, Commissioning, Test and Training, Warranty



(1) The engineers from the Seller shall supervise the installation on site and fulfill the commissioning

(2) Test two sizes of pipes during the commissioning, the mill line is considered qualified if fluent production of 4 hours for each size is reached.

(3) The Buyer signs in the Certificate of Acceptance.

(4) The Seller trains the ope..rators of the Buyer during the commissioning.

(5) Commissioning: about 3-4 engineers in 30 days.

(6) The Buyer shall pay for the visa fees, international round trip air tickets and the local, such as board and lodging, daily transportation, communication,Insurance, etc. The Buyer shall pay USD120 /day /person to the Seller for the commissioning.

(7) The Buyer shall prepare an interpreter for better communication between the two sides.

(8) The warranty period: Normally 1 year after commissioning, except for the problems caused by user’s mistakes.

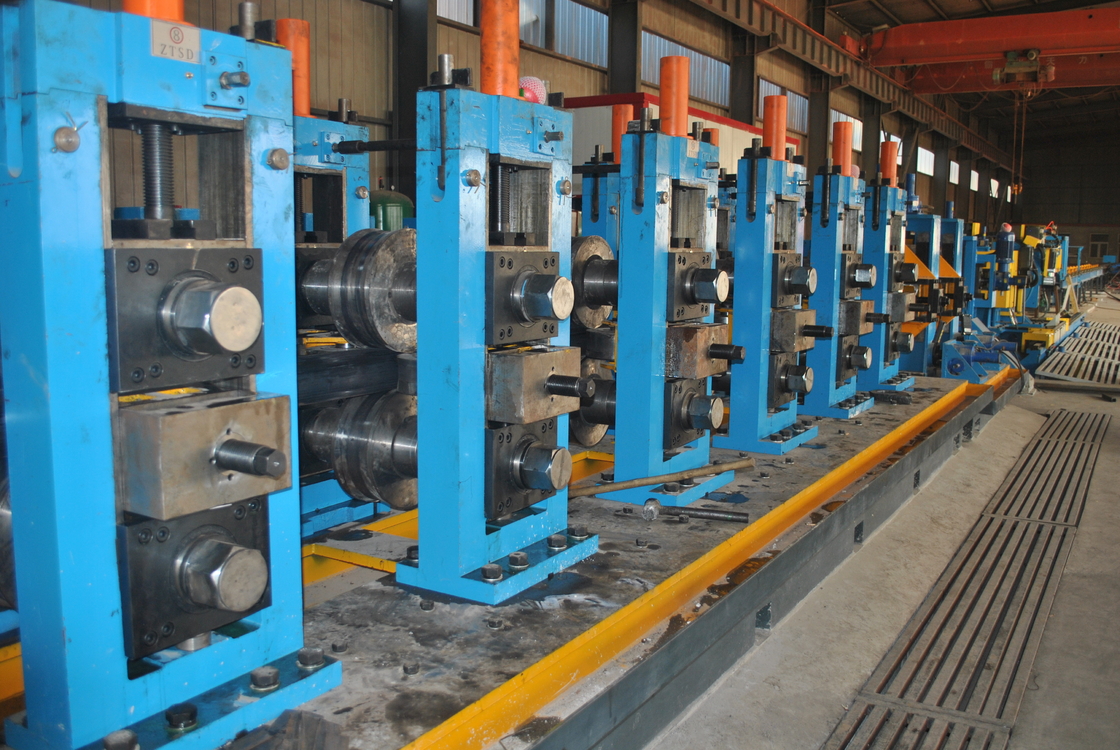

Pipe 219mm Diameter Production Round Tube Mill Carbon Steel Welded 2



About Us

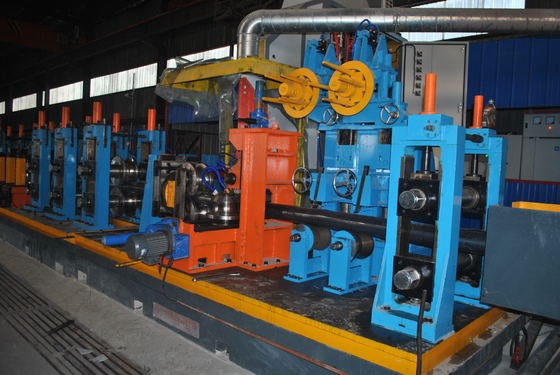

Pipe 219mm Diameter Production Round Tube Mill Carbon Steel Welded 3
