Full Automatic Square Tube Mill 45 m/min Servo Adjustment

Product Details:

Place of Origin:	Hebei
Brand Name:	TengTian
Certification:	CE, ISO9001, BV
Model Number:	151

Detail Information

Place of Origin:

Hebei

Brand Name:

TengTian

Certification:

CE, ISO9001, BV

Model Number:

151

Applicable Materials:

Sjr225

Cutting Method:

Cold Saw

Product Name:

Full Automatic Production Line

Speed:

45 M/min

Equipment Specification:

Customer Specified

Forming Method:

Roller Squeeze

Warranty:

One Year

Material:

Low Carbon HRC

Forming Type:

Direct Forming

Work Shop:

90 X 5 M, H＞3m ( Crane To Ground )

Highlight:

High Light

Highlight:

square erw pipe mill

high speed erw pipe mill

erw square tube mill

Trading Information

Minimum Order Quantity:

1 Set

Price:

$100000 to $1 million

Packaging Details:

Export waterproof and Seaworthy packing.

Delivery Time:

120 work days

Payment Terms:

L/C,T/T

Supply Ability:

50 Sets/Year

Product Description

Square Tube ERW Pipe Mill High Speed Full Automatic Servo Adjustment

Product Specifications

Attribute	Value
Applicable materials	sjr225
Cutting method	cold saw
Product name	Full Automatic Production Line
Speed	45 m/min
Equipment Specification	customer specified
Forming method	Roller Squeeze
Warranty	One year
Material	Low carbon HRC
Forming type	direct forming
Work shop	90 x 5 m, H＞3m (crane to ground)

Product Overview

The Square Tube ERW Pipe Mill High Speed Full Automatic Servo Adjustment is designed to manufacture various section steels used in metallurgy, construction, transportation, machinery, and vehicle industries. This advanced production line utilizes steel strip as raw material to produce cold-rolled section steel through reliable cold-rolled forming technology.

The system incorporates PROFIBUS technology in its control system to ensure highly synchronized operation and optimal product quality. With all indicators and operational costs maintained at the lowest levels, this machine offers an economical solution for cold-rolled section steel production.

Key Features

Rapid roller adjustment capability
Easy specification changes with simple adjustments
Reduced labor requirements and operational costs
Extended equipment service life
Individual component repairability

Available Models

No.	Model	Size	Thickness (mm)	Roll Weight (mm)	Forming Speed (m/min)	Installed Capacity (kw)
1	200	20x20-50x50	1-3	5	20-80	900
2	600	60x60-150x150	2-7	10	20-60	1400
3	800	80x80-200x200	2.5-10	15	20-40	1600
4	1050	100x100-250x250	3-12.7	20	15-30	2600
5	1250	120x120-300x300	3-14	30	10-25	3200
6	1400	150x150-350x350	4-14	30	8-20	3600
7	1600	200x200-400x400	4-16	30	8-15	3900
8	2000	250x250-500x500	4-20	40	8-15	4200

Equipment Components

No.	Component Name
1	Winding and unwinding reels
2	Straightener & leveler
3	Automatic shear and welding
4	Feeder and punching machine
5	Automatic forming and sizing part
6	Cutting machine
7	Via rollers
8	Automatic packing and palletizing

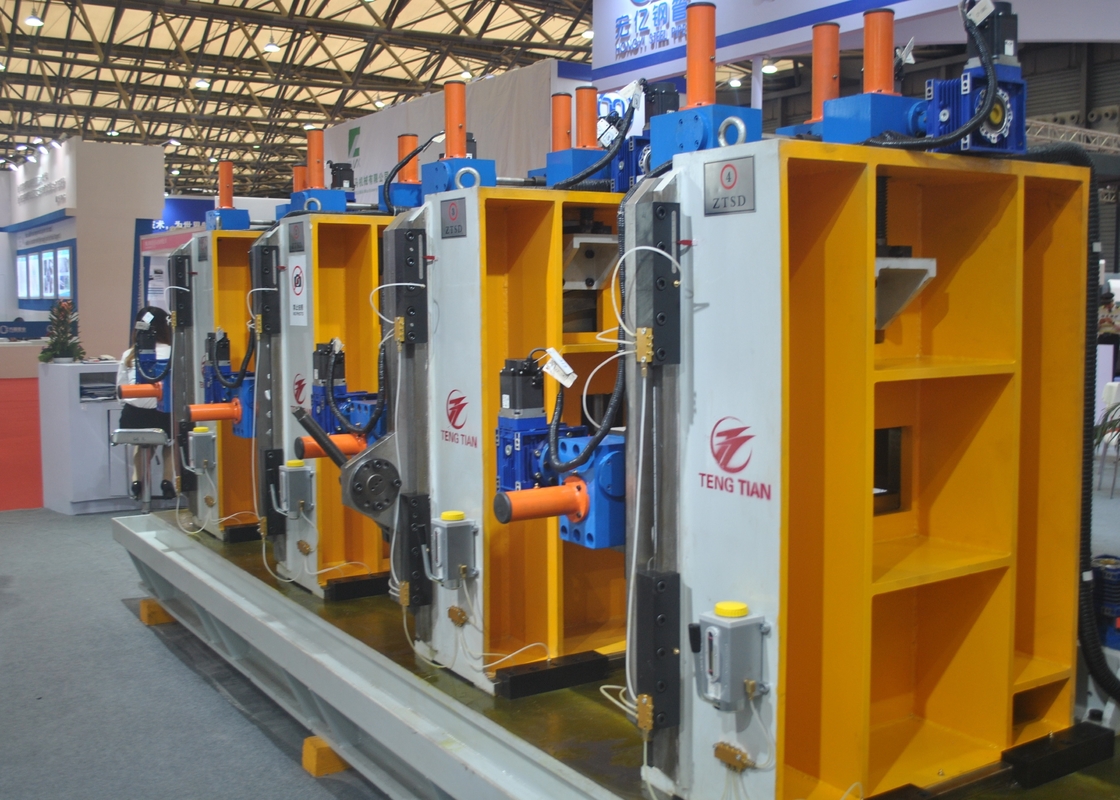

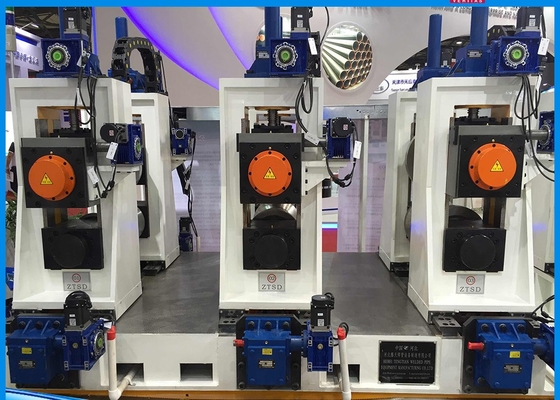

Product Images
