PLC Control CNC Automatic Tube Mill for High Precision Pipe Production

Product Details:

Place of Origin:	Hebei
Brand Name:	TengTian
Certification:	CE, ISO9001, BV
Model Number:	512

Detail Information

Place of Origin:

Hebei

Brand Name:

TengTian

Certification:

CE, ISO9001, BV

Model Number:

512

Material:

Low Carbon HRC

Applicable Materials:

Q235

Warranty:

One Year

Forming Method:

MOLD Squeeze

Cutting Method:

Cold Saw

Product Name:

Full Automatic Production Line

Speed:

15 M/min

Equipment Specification:

Customer Specified

Forming Type:

Direct Forming

Work Shop:

90 X 5 M, H＞3m ( Crane To Ground )

Highlight:

High Light

Highlight:

plc control automatic tube mill

cnc automatic tube mill

high precision tube rolling mill

Trading Information

Minimum Order Quantity:

1 Set

Price:

$100000 to $1 million

Packaging Details:

Export waterproof and Seaworthy packing.

Delivery Time:

300 work days

Payment Terms:

L/C,T/T

Supply Ability:

50 Sets/Year

Product Description

PLC Control CNC High Precision Produce Pipe Machine Automatic Tube Mill

Product Specifications

Attribute	Value
Material	Low carbon HRC
Applicable materials	Q235
Warranty	One year
Forming method	MOLD Squeeze
Cutting method	Cold saw
Product name	Full Automatic Production Line
Speed	15 m/min
Equipment Specification	Customer specified
Forming type	Direct forming
Work shop	90 x 5 m, H＞3m (crane to ground)

Machine Components

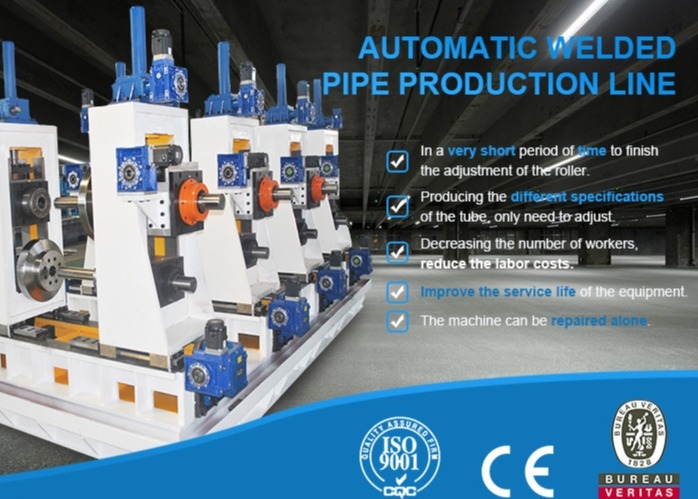

Forming parts: Seven frame horizontal roll stands, four empty curving stands, four vertical roll racks, and one feeding rack
Welding parts: Five roller extruding rolls, two scraping scar racks, and one polish rack
Sharping parts: Four roller racks
Electric control: Multipoint PLC control system

Product Overview

This full-automatic ERW steel tube mill/pipe mill line represents China's first fully automatic pipe making machine designed to meet international market requirements. Combining our LW series unit with FF forming technology, this equipment produces square and rectangular tubes with adjustable width and height specifications. The machine delivers precise, smooth cuts without burrs, maintaining high precision throughout production.

Available Models

No.	Model	Size	Thickness (mm)	Roll Weight (mm)	Forming Speed (m/min)	Installed Capacity (kw)
1	200	20x20-50x50	1-3	5	20-80	900
2	600	60x60-150x150	2-7	10	20-60	1400
3	800	80x80-200x200	2.5-10	15	20-40	1600
4	1050	100x100-250x250	3-12.7	20	15-30	2600
5	1250	120x120-300x300	3-14	30	10-25	3200
6	1400	150x150-350x350	4-14	30	8-20	3600
7	1600	200x200-400x400	4-16	30	8-15	3900
8	2000	250x250-500x500	4-20	40	8-15	4200

Equipment Composition

Winding and unwinding reels
Straightener & leveler
Automatic shear and welding
Feeder and punching machine
Automatic forming and sizing part
Cutting machine
Via rollers
Automatic packing and palletizing
