High Speed Carbon Steel Pipe Square Tube Welded Pipe Mill

High Speed Carbon Steel Pipe Square Tube Welded Pipe Mill
High Speed Carbon Steel Pipe Square Tube Welded Pipe Mill High Speed Carbon Steel Pipe Square Tube Welded Pipe Mill

Large Image :  High Speed Carbon Steel Pipe Square Tube Welded Pipe Mill

Product Details:
Place of Origin: CHINA
Brand Name: TENGTIAN
Certification: CE ISO9000 BV
Model Number: HG76
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: standard export package
Delivery Time: 90 wording days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 5 set/month
Detailed Product Description
Production: Square Pipe,round Pipe Speed: 20-100m/min
Max Size: 80x80mm Thickness: 5.0mm
Roller Material: Cr12/Cr12Mov Steel Material: CRC/HRC/GI STEEL
High Light:

high speed erw pipe mill

,

carbon steel erw pipe mill

,

erw carbon steel welded pipe mill

High Speed Carbon Steel Pipe Square Tube Welded Pipe Mill





1.Machine General Introduction



The welded pipe mill is our company in order to meet the requirements of the international market, according to our company LW series unit designed to produce welded steel pipes ,include round pipe , squre pipe and deformed pipe,LTZ pipe.Adopting roll pass design, the production line can manufacture welded steel pipes with good quality machining and high precision assembling.



2.Main Parameters and Specifications:



Model Side Range Thickness Production speed
HG20 8~ 20mm 0.3 -1 mm 30 - 120m/min
HG32 12~ 32 mm 0.3 - 2.0 mm 30 - 120m/min
HG50 17 ~50 mm 0.8 - 2.5 mm 30 - 110m/min
HG60 17~ 60mm 0.8 - 3 mm 30 - 100m/min
HG76 20~ 76mm 1 - 3 mm 30 - 100m/min
HG89 30 ~ 89 mm 1 - 4 mm 30 - 80m/min
HG114 50 ~ 114 mm 1.5 - 5.0 mm 30 - 60m/min
HG165 76 ~ 165mm 3 - 7 mm 30 - 50m/min
HG219 114~ 219 mm 4 - 8 mm 20 - 40m/min
HG273 165 ~ 273 mm 4 - 10 mm 15 - 30m/min
HG325 219 ~ 325 mm 4 - 12 mm 10 - 30m/min
HG426 219 ~ 426 mm 4 - 16 mm 8 - 25m/min
HG508 273~ 508 mm 4 - 20 mm 8 - 20m/min



the machine size can design as customer different require.



3.Working Process:

strip steel to coil→uncoiler →end straightener→flattener→shear welder→storage material unit →formed,welding,cooling,accurate pipe Dia. size →accurate pipe length size,cutting→inspection →package



4.Quality and After-sale Service Warranty

Equipment arriving at the buyer, the technical services personnel at the scene debugging, maintenance, equipment commissioning, commissioning, operation and maintenance instruction, responsible for technical training for equipment operation and maintenance personnel of the buyer. Used in users abide by the rules, under normal operating equipment, since 12 months from the date of the arrival of the equipment, such as positively impact on the quality to use, parts damage lead to equipment can't normal work, factory will give the repair or replacement free of charge.

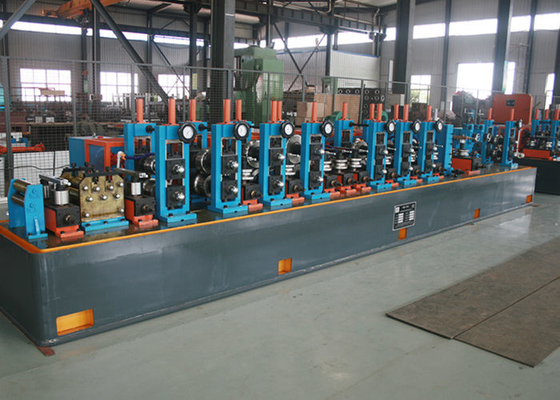

High Speed Carbon Steel Pipe Square Tube Welded Pipe Mill 0

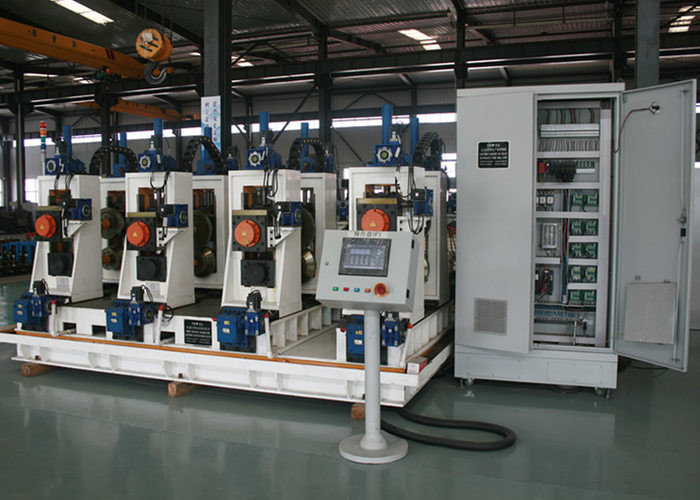

High Speed Carbon Steel Pipe Square Tube Welded Pipe Mill 1
