HG 200 Tube Mill Machine for 100-200mm Square Rectangular Pipes

Name: HG 200 Tube Mill Machine for 100-200mm Square Rectangular Pipes
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: 200 x 200 x 8 mm
Price: 50,000.00 USD
Availability: InStock

Product Details:

Place of Origin:	China
Brand Name:	TENGTIAN
Certification:	CE ISO9000 BV
Model Number:	200 x 200 x 8 mm

Detail Information

Place of Origin:

China

Brand Name:

TENGTIAN

Certification:

CE ISO9000 BV

Model Number:

200 x 200 x 8 mm

Production Name:

Tube Mill Machine

Model:

HG 200

Feature:

High Quality And High Precision

Other Pipe:

Square Pipe And Rectangular Pipe

Max Size:

100 X 100 - 200 X 200 Mm

Thickness:

2 . 0 - 8 . 0 Mm

Length:

6 - 12 M

Rollers:

Include

Power(w):

1000kw

Key Words:

Square Pipe Milling Machine Tube Mill Machine

Highlight:

High Light

Highlight:

8mm thickness square tube mill

fast speed square tube mill

fast speed square pipe mill

Trading Information

Minimum Order Quantity:

1 set

Price:

$100000 to $1 million

Packaging Details:

standard export package

Delivery Time:

60 wording days

Payment Terms:

L/C,T/T,Western Union,MoneyGram

Supply Ability:

5 set/month

Product Description

High Quality 200 X 200 X 8 Mm Square Pipe Milling Machine Tube Mill Machine

Product Specifications

Attribute	Value
Production Name	Tube Mill Machine
Model	HG 200
Feature	High quality and high precision
Pipe Types	Square pipe and Rectangular pipe
Max Size	100 x 100 - 200 x 200 mm
Thickness	2.0 - 8.0 mm
Length	6 - 12 m
Rollers	Included
Power	1000kw

Machine Overview

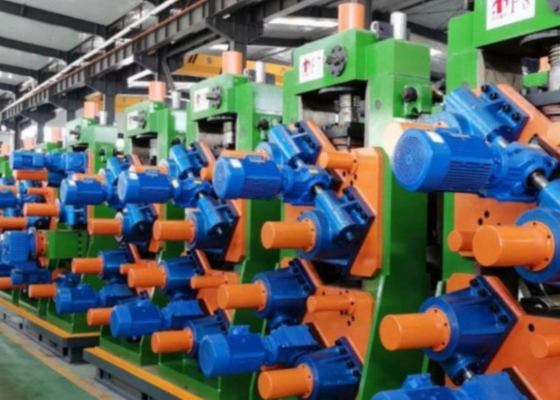

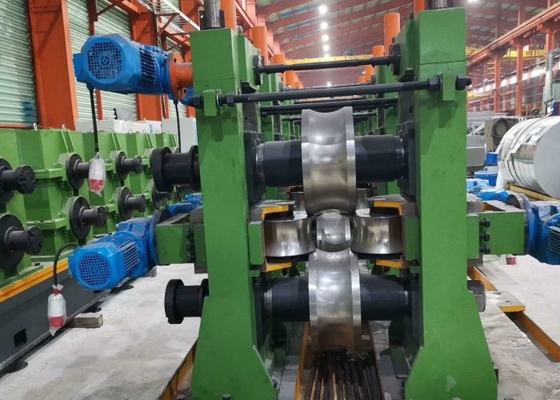

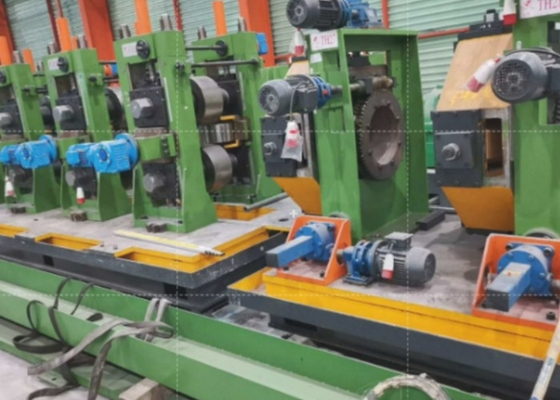

This 200 X 200 X 8 mm square tube mill is designed for high-speed production of welded square tubes ranging from 100 x 100 - 200 x 200 mm in diameter with wall thicknesses of 2.0 - 8.0 mm. Featuring advanced roll pass design, this production line delivers welded steel pipes with exceptional machining quality and high-precision assembly.

Technical Specifications

Material Specifications

Standard: Conforming to YB189-64 standard
Material: Low carbon steel and low alloy constructional steel
Mechanical properties: δs ≤ 345 Mpa, δb ≤ 610 Mpa
Strip Width: 400 - 800 mm
Strip Thickness: 2.0 - 8.0 mm
Inner Diameter of Coils: φ480 - φ570 mm
Outer Diameter of Coils: φ1000 - φ1800 mm
Coil Weight: ≤ 18 T

Pipe Specifications

Pipe Diameter: Square pipe 100 x 100 - 200 x 200 mm (same size for rectangular pipe)
Thickness: 2.0 - 8.0 mm
Length: 6 -12 m
Pipe-cutting Precision: 0 - 6 mm
Forming Speed: 10 - 50 m/min

Buyer Requirements

Workshop: 60 x 6 m, H > 5m (crane to ground)
Power: Approx 1212 KW, 380V/50 Hz/3 phases
Circulation Cooling Water: Flow: 20-30 T/h, Pool Volume: 30 m³
Compressed Air: Flow: 5 m³/min, Pressure: 5-7 kg/cm²
Other requirements will be supplied by seller

Production Process

strip steel to coil → uncoiler → end straightener → flattener → shear welder → storage material unit → forming, welding, cooling, accurate pipe diameter sizing → accurate pipe length sizing, cutting → inspection → packaging

Quality Assurance & Service

Our technical personnel will provide on-site debugging, maintenance, and commissioning services upon equipment arrival. We offer comprehensive training for operation and maintenance personnel. The equipment comes with a 12-month warranty from the date of arrival. Under normal operating conditions, we provide free repair or replacement for any quality-related issues that prevent normal operation.
