| Production Name: | Tube Mill Machine | Forming Method: | FFX Forming Technology |
|---|---|---|---|
| Running Speed: | Max. 60 M / Min | Pipe Shape: | Round |
| Pipe Diameter: | 45 - 102 Mm | Max.Thickness For Round Pipe: | 1 . 0 - 4 . 0 Mm |
| Welding Type: | High Frequency Welding | Key Words: | Round Shape Tube Rolling Mill Tube Mill Machine |
| High Light: | 89mm erw tube mill machine,round shape erw tube mill machine,1mm thick high speed tube mill |
||

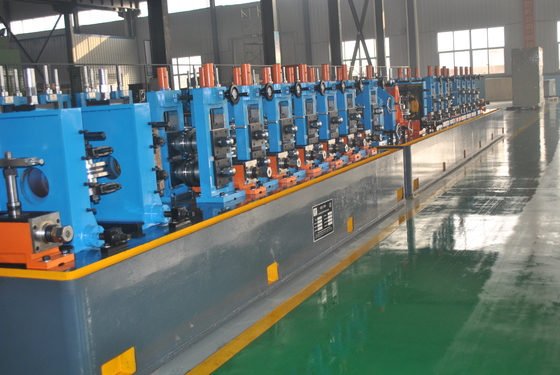

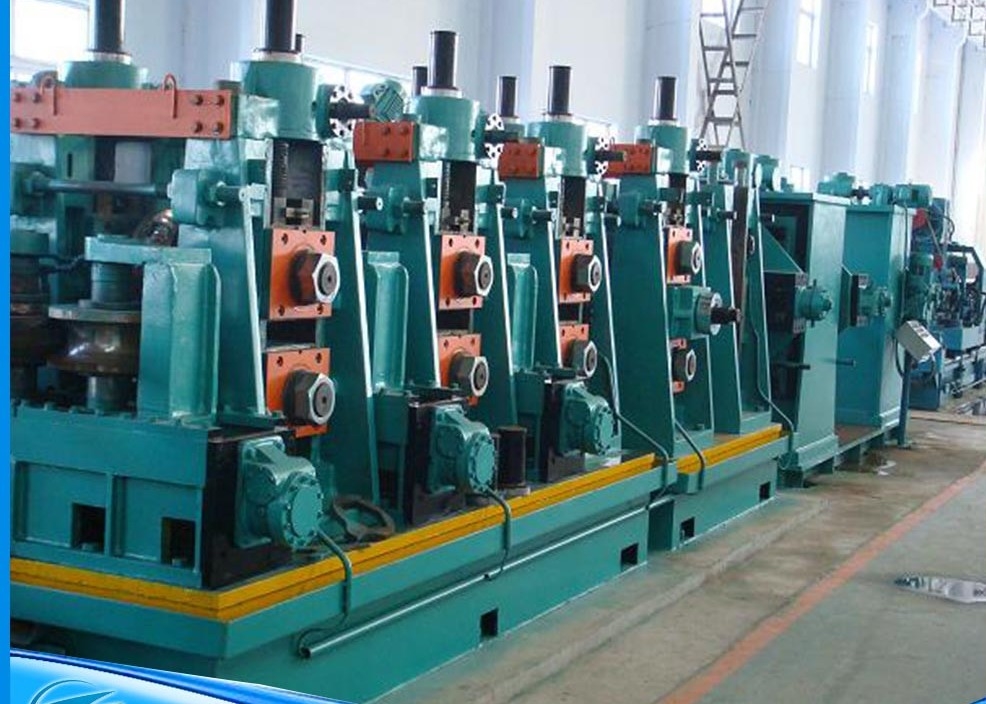

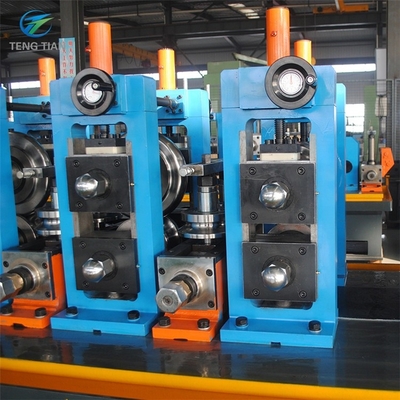

HG89 high frequency straight welded pipe mill line is used to manufacture welded steel pipe.After we absorbed advanced pipe making technology from both abroad and domestic, our innovative designed production line and each single unit of the production line is not only economical but also practical.
Round pipe size: 45 -- 102 mm Square pipe size: 40 × 40 -- 60 × 80 mm Pipe thickness: 1 . 0 - 4 . 0 mm
As an CE & ISO9001:2008 certified pipe making machine manufacturer and supplier in China. Based on our high quality, reliable performance and long using life, our machines exported to Turkey, Egypt, Morrcco, Kazakhstan, Uzbekistan, Tajikistan, Syria, Iran, Iraq, Mexico, Sri Lanka, Pakistan, Thailand, Vietnam, and other over 30 countries.
1. Raw Material
| 1 | Mateairal | Low carbon steel and low alloy constructional steel |
| 2 | Material properties |
σb≤380Mpa,σs≤275MPa |
| 3 | ID of the steel strips | Φ 508 mm |
| 4 | OD of the steel strips | Φ 1800 mm |
| 5 | Coiler weight | Max.6 T |
2. Production Range:
| Round Pipe | φ 45 - 102 mm | Thickness: 1 . 0 - 4 . 0 mm |
3. H.F. Welder:300kw Hi-frequency welder
4. Line Spees: Max.160 m / min
5. Tube Length: 4 - 6m
6. Cutting Accuracy: ±1 . 5 mm
7. Size of whole line: about 80 X 6 m
