High Frequency Welded Pipe Mill 60m/Min Hf Straight Seam Carbon Steel Pipe Mill Manufacturing Machine

Name: High Frequency Welded Pipe Mill 60m/Min Hf Straight Seam Carbon Steel Pipe Mill Manufacturing Machine
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: HG 114
Price: 50,000.00 USD
Availability: InStock

Product Details:

Place of Origin:	China
Brand Name:	TENGTIAN
Certification:	CE ISO9000 BV
Model Number:	HG 114

Detail Information

Place of Origin:

China

Brand Name:

TENGTIAN

Certification:

CE ISO9000 BV

Model Number:

HG 114

Product Name:

High Frequency Welded Pipe Mill 60m/Min Hf Straight Seam Carbon Steel Pipe Mill Manufacturing Machine

Feature:

High Frequency

Other Pipe:

Round Pipe And Square Pipe

Max Size:

50 - 101 Mm

Thickness:

1 . 0 - 4 . 0 Mm

Length:

4 - 6 M

Rollers:

Include

Warranty:

One Year

Key Words:

High Frequency Welded Pipe Tube Mill

Highlight:

High Light

Highlight:

60m/min carbon steel pipe mill

high frequency carbon steel pipe mill

60m/min high frequency welding tube mill

Trading Information

Minimum Order Quantity:

1 set

Price:

$100000 to $1 million

Packaging Details:

standard export package

Delivery Time:

100 wording days

Payment Terms:

L/C, D/A, D/P, T/T

Supply Ability:

5 set/year

Product Description

60 m/min HF Straight Seam Steel Pipe Manufacturing Machine Welded Pipe Mill

1.Machine General Introduction

HG114 High-Frequency Welded Pipe Mill Line is designed to produce welded pipes of 50～101 mm in diameter and 1.0～4.0mm in wall thickness as well as square and rectangular pipes and deformed pipes of the corresponding size.Adopting roll pass design, the production line can manufacture welded steel pipes with good quality machining and high precision assembling.

2.Main Parameters and Specifications:

⑴ Material Specifications:

Material	low carbon steel galvanize and crabon steel tube
Mechanical properties	σb≤520Mpa,σs≤340MPa
strip width	160 - 320 mm
strip thickness	1 . 0 - 4 . 0 mm
I.D of Coils	480 - 510 mm
O.D of Coils	1000 - 1600 mm
Coil Weight	≤ 5T

⑵ Welded Pipe Specification

Pipe Diameter	Φ 50 ～ φ 101 mm
pipe thickness	1 . 0 - 4 . 0 mm
Finish pipe length	4 - 6 m
Cut length accuracy	± 3 mm
Forming speed	20 - 60 m/min

⑶ workshop require : 100 m X 8 m ,at least 5m high

Notice:You can modify it according to the actual length of the workshop

3.Equipment composition:

Hydraulic uncoiler

Straight head and pinch leveling machine

Shear and welder

Horizontal accumulator

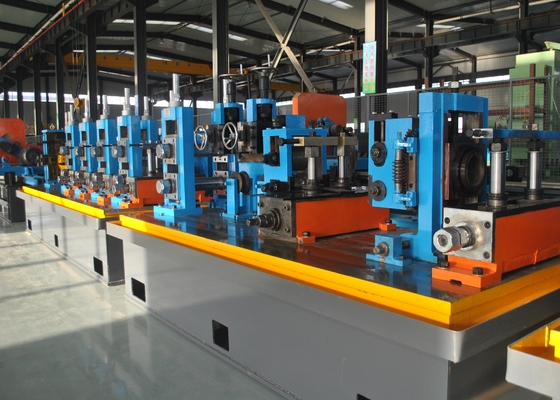

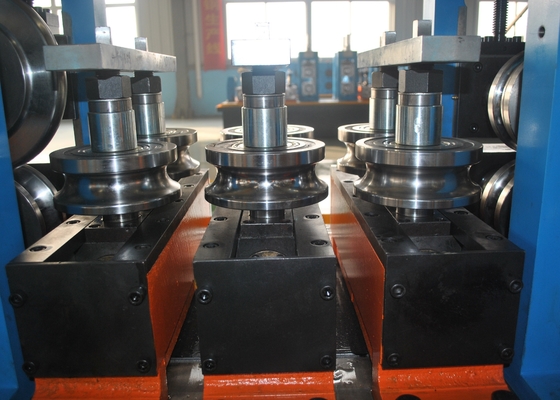

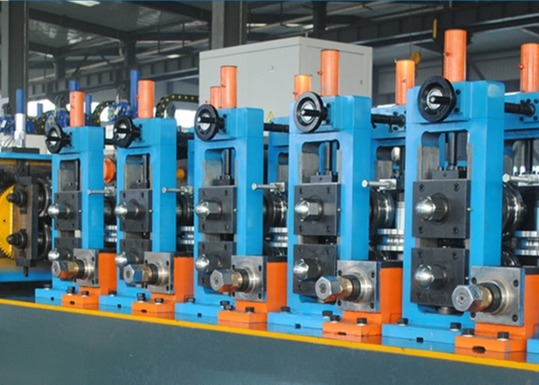

Forming and Sizing Mill

Cold saw

Run out table

Automatic stacking machine

High Frequency Welder

The equipment is arranged in the finishing part of the straight seam steel pipe production line, and is used for water pressure test of the straight seam welded steel pipe. The technical level meets the requirements of the ASTM standard for steel pipe hydrostatic test.

4.Offline Discussion

High Frequency Welded Pipe Mill 60m/Min Hf Straight Seam Carbon Steel Pipe Mill Manufacturing Machine 0

High Frequency Welded Pipe Mill 60m/Min Hf Straight Seam Carbon Steel Pipe Mill Manufacturing Machine 1
