| Machine Name: | Welded Pipe Mill | Product: | Welded Pipe |
|---|---|---|---|
| Feature: | High Speed | Material: | Carbon Steel And Galvanized Steel |
| Other Pipe: | Round Pipe | Max Size: | 159mm |
| Thickness: | 12mm | Length: | 6-12m |
| Rollers: | Include | Model: | 159mm |
| Key Words: | Welded Pipe Mill | ||
| High Light: | 159mm welded pipe mill,high speed welded pipe mill,159mm welded tube mill |
||

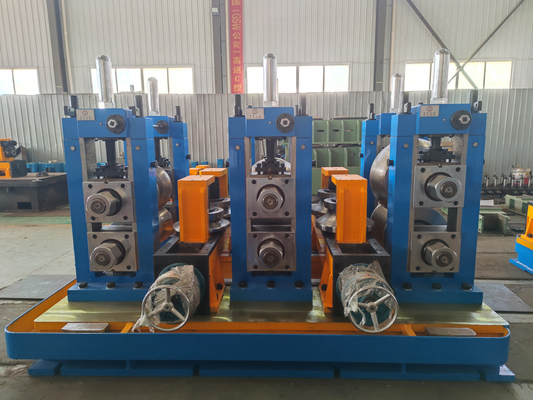

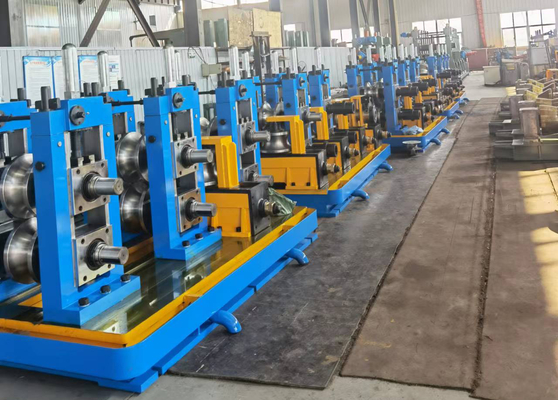

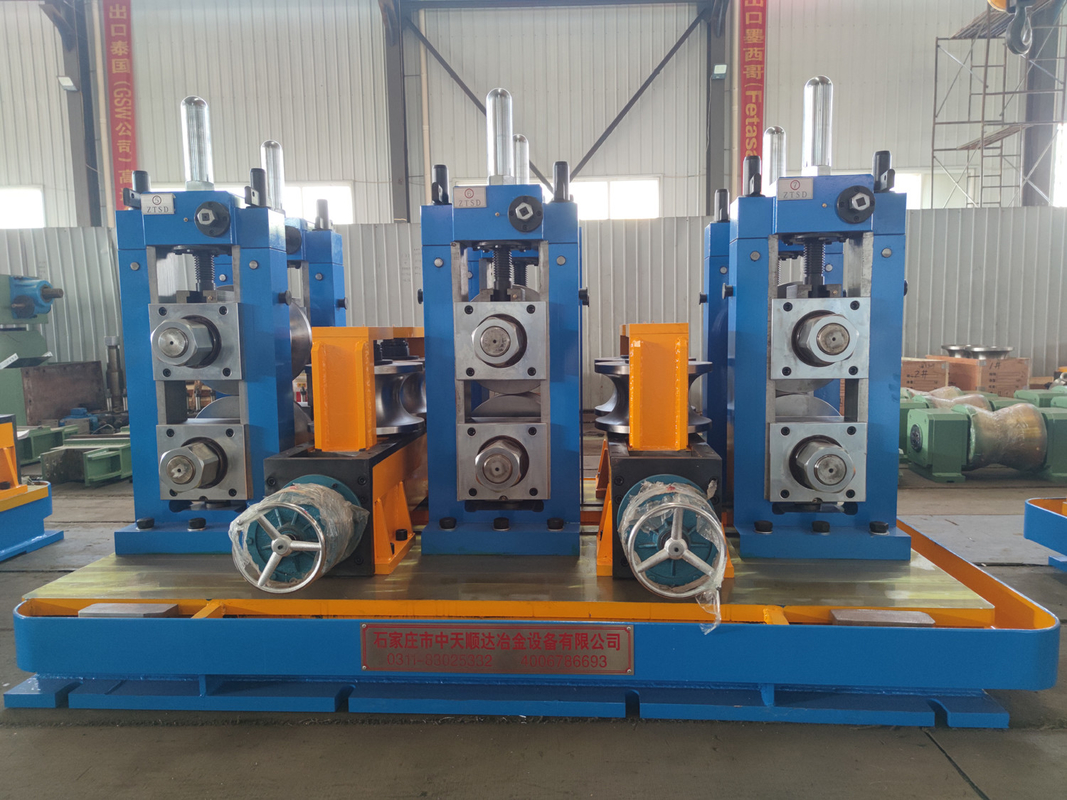

Welded Pipe Mill General Introduction
it is designed to produce welded steel pipes ,include squre pipe and deformed pipe.
Adopting roll pass design, the production line can manufacture welded steel pipes with good quality machining and high precision assembling.
Square pipe : 89-159mm
Thickness:3-6mm
|
(1)Material Specifications: |
|
|
Standard |
Internatioanl standard tube mill machine |
|
Material |
galvanized steel |
|
Mechanical properties |
σb≤520Mpa,σs≤365MPa |
|
Strip Width |
280-500mm |
|
Strip Thickness: |
3-6mm |
|
Inner Diameter of Coils |
Φ508mm |
|
Outer Diameter of Coils |
Φ1300～φ2000mm |
|
Coil Weight |
≤8T |
|
(2)Pipe Specification |
|
|
Pipe Diameter |
round pipe :89-159mm |
|
Length |
6-12m |
|
Pipe-cutting Precision |
0-6mm |
|
Forming Speed |
max 50m/min for 1 mm thickness |
|
(3)The buyer should self-supply |
|
|
Work shop |
60x12m, H＞5m(crane to ground) |
|
Power |
Approx.2500KW 380V/60Hz/3phases |
|
Circulation Cooling Water(whole system) |
Flow:30+30 CBM |
|
Compressed Air |
Flow:5m3/min |
|
Cable |
All cable outside of my machine, you buy after machine fix location. |
strip steel to coil→uncoiler →end straightener→flattener→shear welder→storage material unit →formed,welding,cooling,accurate pipe Dia. size →accurate pipe length size,cutting→inspection →package
