| Production Name: | Friction Saw Cutting Carbon Steel Round Erw Pipe Mill Pipe Making Equipment | Feature: | Round Tube Mill |
|---|---|---|---|
| Other Pipe: | Rectangle Pipe And Square Pipe | Max Size: | 25 - 60 Mm |
| Thickness: | 0 . 6 - 3 . 5 Mm | Length: | 4 - 6 M |
| Rollers: | Include | Warranty: | One Year |
| Key Words: | Round Erw Pipe Mill Pipe Making Equipment | ||
| High Light: | Carbon Steel Erw Pipe Mill,Round Erw Pipe Mill,Friction Saw Cutting Erw Pipe Mill |
||

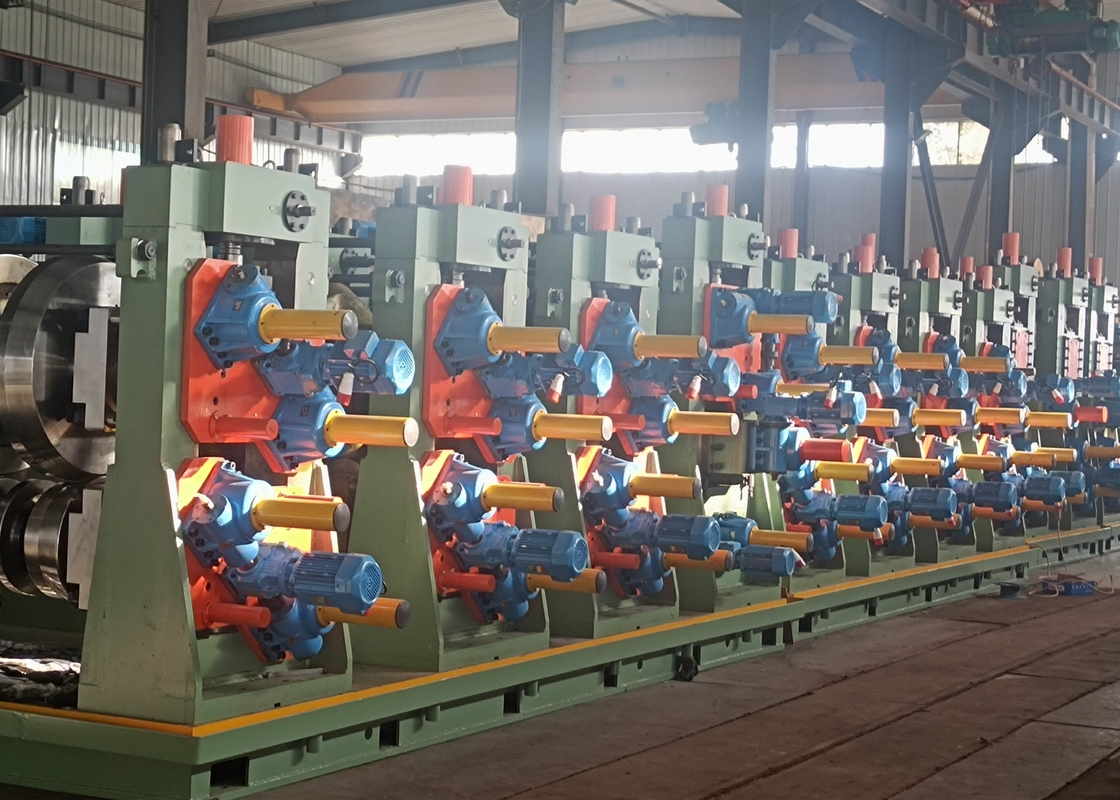

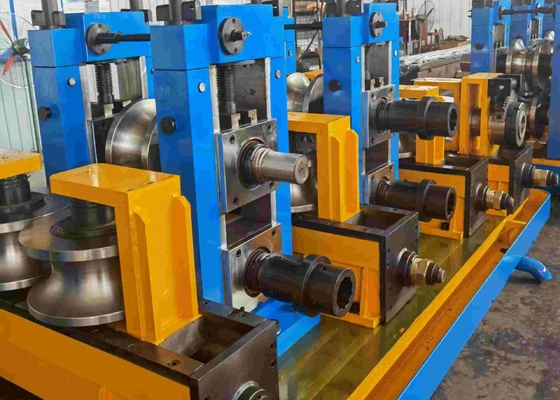

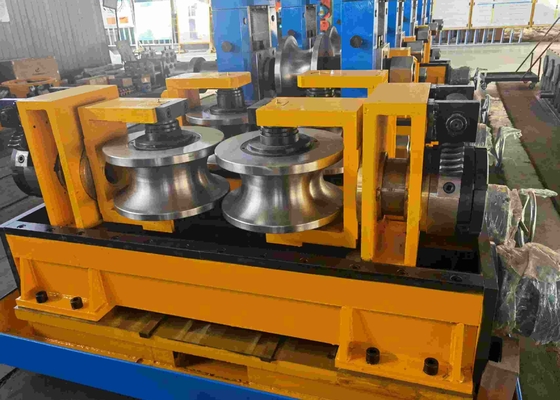

60 high frequency welded pipe mill line is used to manufacture welded steel pipe.Pipe welder is use for producing welded pipe and corresponding square pipe and profiled pipe.The composition of equipment is from uncoiler to cutting saw.Rolling speed can be adjusted correspondingly within suitable range of pipe diameter and wall thickness.
⑴ Material Specifications:
| Material | low carbon steel galvanize and crabon steel tube |
| Mechanical properties | σb≤520Mpa,σs≤340MPa |
| strip width | 100 - 190 mm |
| strip thickness | 0 . 6 - 3 . 5 mm |
| I.D of Coils | Φ 480 - 510 mm |
| O.D of Coils | φ 1000 - 1600 mm |
| Coil Weight | ≤ 4T |
⑵ Welded Pipe Specification
| Pipe Diameter | Φ 25～ φ 60 mm |
| pipe thickness | 0 . 6 - 3 . 5 mm |
| Finish pipe length | 4 - 6 m |
| Cut length accuracy | ± 3 mm |
| Forming speed | 20 - 70 m/min |
⑶ workshop require : 100 m X 8 m ,at least 5m high
Notice:You can modify it according to the actual length of the workshop
1, Instruction Manual of Pipe Mill(provided at the time of a month before delivery time)
2, Inspection Certificate (provided at the delivery time)
3, Loading Order (Provided at the delivery time)
4, Layout Drawing (provided at the time of a month before delivery time)
5, Ground Base Drawing (provided at the time of a month before delivery time)
6, Electrical Principle Diagram
7, Overall Assembly Drawing of every unit of the line
8, Part Diagram of Vulnerable Parts
