Low Alloy Steel 1.5mm Pipe Making Machine Custom Welded Pipe Mill

Product Details:

Place of Origin:	China
Brand Name:	TENGTIAN
Certification:	CE ISO9000 BV
Model Number:	127

Detail Information

Place of Origin:

China

Brand Name:

TENGTIAN

Certification:

CE ISO9000 BV

Model Number:

127

Production Name:

Low Alloy Steel 1.5mm Pipe Making Machine Professional Custom Pipe Mill

Feature:

Professional Customed

Other Pipe:

Round Pipe And Square Pipe

Max Size:

50 X 50 - 100 X 100 Mm

Thickness:

1 . 5 - 4 . 0 Mm

Length:

4 - 12 M

Warranty:

One Year

Key Words:

50 - 100 Mm Welded Pipe Production Line

Highlight:

High Light

Highlight:

1.5mm Pipe Making Machine

100 X 100 Mm Pipe Mill

Low Alloy Steel Pipe Mill

Trading Information

Minimum Order Quantity:

1 set

Price:

$100000 to $1 million

Packaging Details:

standard export package

Delivery Time:

100 wording days

Payment Terms:

L/C,D/A,D/P,T/T

Supply Ability:

5 set/year

Product Description

Low Alloy Steel 1.5mm Pipe Making Machine Customed

Product Specifications

Attribute	Value
Production Name	Low Alloy Steel 1.5mm Pipe Making Machine Professional Custom Pipe Mill
Feature	Professional Customed
Pipe Types	Round pipe and square pipe
Max Size	50 x 50 - 100 x 100 mm
Thickness	1.5 - 4.0 mm
Length	4 - 12 m
Warranty	One year

Product Overview

The 127 high frequency welded pipe mill line is designed for manufacturing welded steel pipes. Incorporating advanced pipe making technology from domestic and international sources, our innovative production line offers both economical and practical solutions for pipe manufacturing.

Key Specifications

Square pipe size: 50 x 50 - 100 x 100 mm
Pipe thickness: 1.5 - 4.0 mm

Material Specifications

Parameter	Value
Material	Low carbon steel, galvanized and carbon steel tube
Mechanical properties	σb≤520Mpa, σs≤365MPa
Strip width	200 - 400 mm
Strip thickness	1.5 - 4.0 mm
I.D of Coils	Φ 508 - 610 mm
O.D of Coils	φ 2000 mm
Coil Weight	≤ 10T

Welded Pipe Specifications

Parameter	Value
Square Pipe Diameter	Φ 50 - φ 100 mm
Pipe thickness	1.5 - 4.0 mm
Finish pipe length	4 - 12 m
Cut length accuracy	± 3 mm
Forming speed	15 - 60 m/min

Workspace Requirements

Minimum workshop dimensions: 100m x 6m, with at least 5m ceiling height.

Note: Can be modified according to actual workshop length requirements.

Quality Assurance & After-Sales Service

Our technical personnel will provide on-site debugging, maintenance, and operation training upon equipment arrival. The warranty covers 12 months from equipment arrival date. Under normal operating conditions, we provide free repair or replacement for any quality-related parts damage.

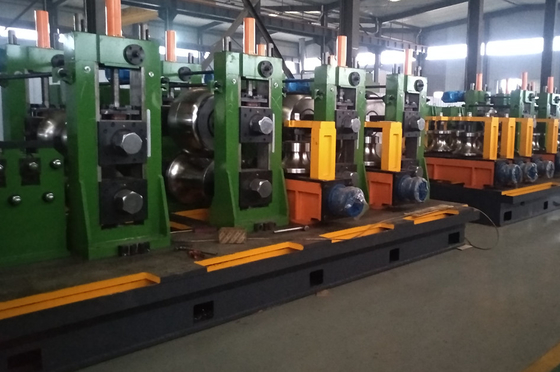

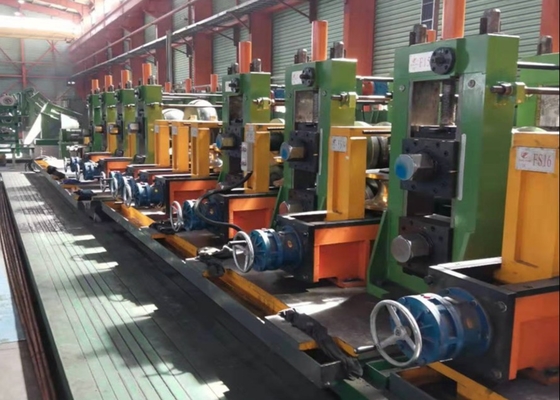

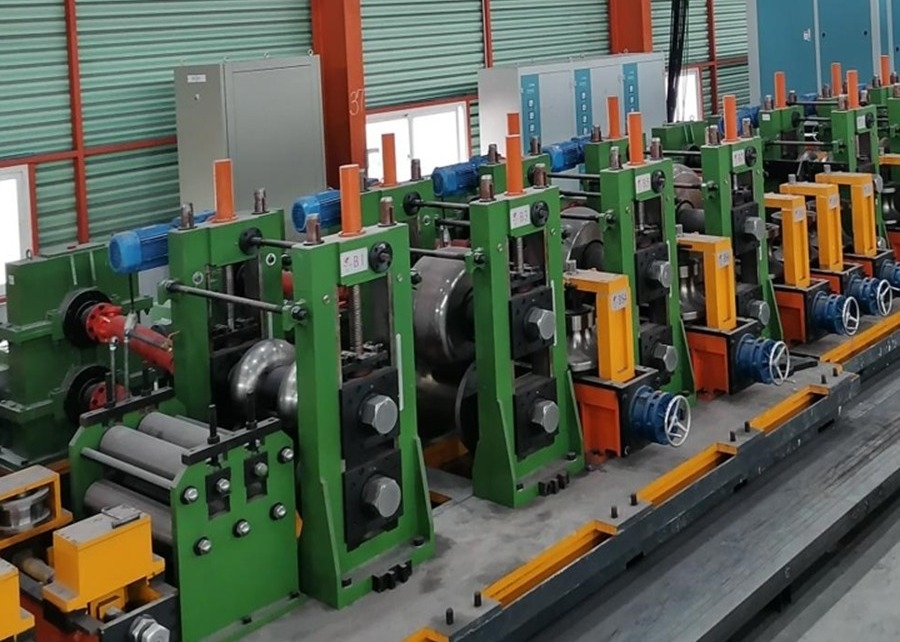

Product Gallery
