25t/h ERW Pipe Mill for 8mm Carbon Steel Square Tubes

Name: 25t/h ERW Pipe Mill for 8mm Carbon Steel Square Tubes
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: HG750
Price: 50,000.00 USD
Availability: InStock

Product Details:

Place of Origin:	China
Brand Name:	TENG TIAN
Certification:	ISO9001/BV
Model Number:	HG750

Detail Information

Place of Origin:

China

Brand Name:

TENG TIAN

Certification:

ISO9001/BV

Model Number:

HG750

Product Name:

Square ERW Pipe Manufacturing Machine 25t / Hour Thickness 8mm

After-sales Service Provided:

Engineers Available To Service Machinery Overseas

Pipe Material:

Carbon Steel

Voltage:

380V

Power(w):

800KW

Speed:

25ton / Hour

Pipe Shape:

Round, Square & Rectangular

Round Pipe Diameter:

55X55－160X160mm

Warranty:

1 Year

Keywords:

Thickness 8mm ERW Tube Making Machine

Highlight:

High Light

Highlight:

8mm ERW Pipe Manufacturing Machine

Square ERW Pipe Manufacturing Machine

8mm ERW Pipe Mill Machine

Trading Information

Minimum Order Quantity:

1set

Price:

$100000 to $1 million

Packaging Details:

Seaworthy packing

Delivery Time:

3 months

Supply Ability:

150 units a year

Product Description

Square ERW Pipe Manufacturing Machine 25t/Hour Thickness 8mm

Key Specifications

Attribute	Value
Product name	Square ERW Pipe Manufacturing Machine 25t/Hour Thickness 8mm
After-sales service	Engineers available to service machinery overseas
Pipe material	Carbon Steel
Voltage	380V
Power	800KW
Speed	25ton/hour
Pipe Shape	Round, Square & Rectangular
Round Pipe Diameter	55X55－160X160mm
Warranty	1 year

Product Overview

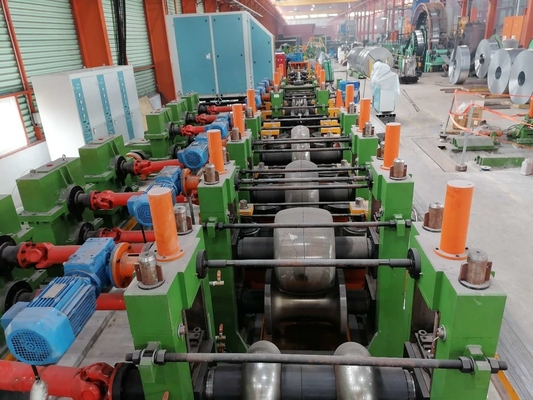

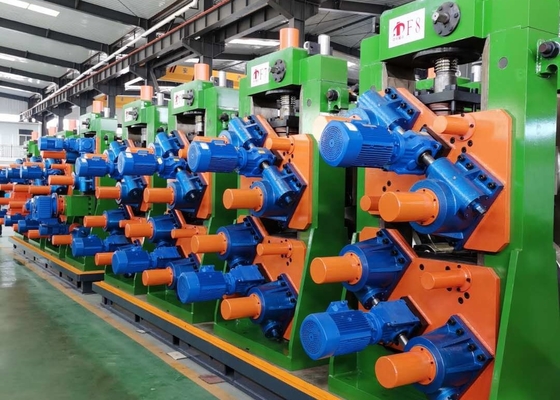

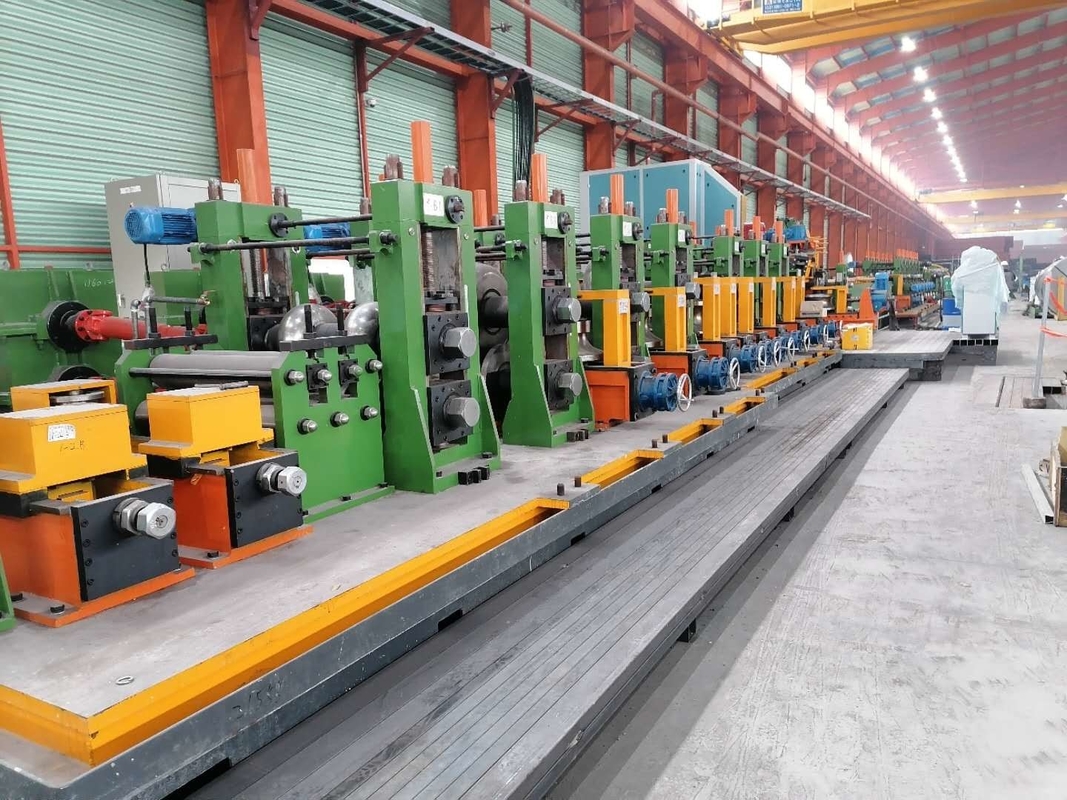

This automatic square and rectangular tube mill line combines our LW series unit with FF forming technology to meet international market requirements. The cold-formed multi-point pre-bending process ensures smooth deformation without stress concentration, enhancing steel pipe strength.

Key Features

Combined mold design allows production of rectangular steel pipes in any specification within range
90% reduction in required rolls and roll change time
80% increase in production capacity
Ideal for multiple varieties and small batch production

ERW Pipe Mill Models

Serial	Model	Thickness(mm)	Specification(mm)	Speed(m/min)	Main Engine(kw)	Power(kw)	Area
1	H20	0.3-1	8-20	30-120	55	60	7*50
2	H32	0.3-2.0	12-32	30-120	75	100	7*50
3	H50	0.8-2.5	16-50	30-110	110	150	7*60
4	H60	0.8-3	20-60	30-100	132	200	7*65
5	H76	1-3	12-76	30-100	320	250	8*80
6	H89	1-4	32-89	30-80	350	300	8*80
7	HG114	1.5-5	45-114	30-60	400	300	10*100
8	HG165	3-7	60-165	30-50	600	400	10*110
9	HG219	4-8	114-219	20-40	800	500	12*150
10	HG273	4-10	114-273	15-30	1000	600	18*160
11	HG325	4-12	165-325	10-30	1200	600	18*180
12	HG426	4-16	165-426	8-25	1400	800	18*180
13	HG508	4-20	219-508	8-20	2000	1000	21*180

Production Process

Loading car
Uncoil
Cutting and Welding
Accumulator
Forming, HF welding, anneal welder, Deburring, Cooling, Sizing, Straightening
STD Cold-cutting saw
Transmitting
Hydrostatic testing
End facer
Straightener
Packing
Storage

Our Service Commitment

Installation & Training: We provide engineers for machine installation and operator training.

Warranty: 1-year quality guarantee with lifetime repair support. Free repair parts during warranty period (excluding human error).

Pre-Sale Service: Workshop design and production output planning.

After-Sale Support: Installation, training, and skilled engineer assistance.

Extended Support: Option for engineer assistance for several months to improve output and reduce waste.

Project Design: Complete project planning for stainless steel/carbon steel pipe production.

Shipping: We handle all loading and shipping arrangements.
