| Product Name: | Blue Color Welded Pipe Equipment Round Square Pipe Product Line Max Speed 120m / Min ERW Pipe Mill | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
|---|---|---|---|
| Pipe Material: | Carbon Steel | Voltage: | 380V |
| Power(w): | 600KW | Speed: | 80-120m / Min |
| Pipe Shape: | Round, Square & Rectangular | Round Pipe Diameter: | 38-76mm |
| Warranty: | 1 Year | Keywords: | Max Speed 120m / Min ERW Pipe Mill |
| High Light: | Blue Color ERW Pipe Mill,120m / Min ERW Pipe Mill,Blue ERW Pipe Mill |
||

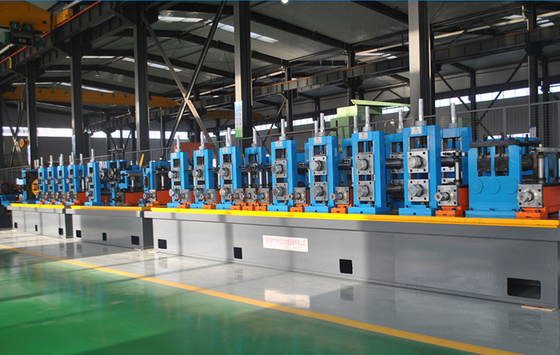

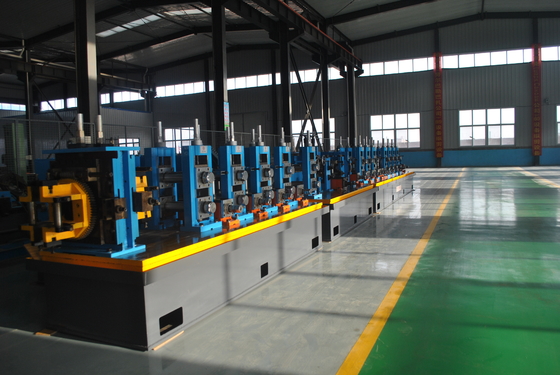

It is designed to produce welded steel pipes ,include round pipe , squre pipe and deformed pipe.

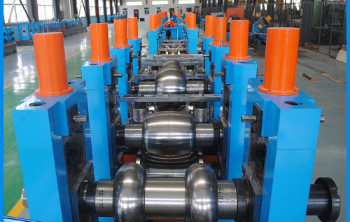

Adopting roll pass design, the production line can manufacture welded steel pipes with good quality machining and high precision assembling.
|
Pipe Diameter |
Round pipe:φ38-76mm Square pipe :30x30,40x40,50x50, 60x60mm Rec Pipe:40x20,50x30,60x40,75x45mm Thickness:0.9-4.5mm |
|
Length |
6-15m |
|
Pipe-cutting Precision |
0-6mm |
|
Forming Speed |
0.9-2.0 Max 120m/min 1.5-3.0 Max 100m/min 3.0-4.5 Max 80m/min |
|
Serial number |
Model |
Thickness(mm) |
Specification(mm) |
Speed(m/min) |
main engine(kw) |
Power(kw) |
area |
|
1 |
H20 |
0.3-1 |
8-20 |
30-120 |
55 |
60 |
7*50 |
|
2 |
H32 |
0.3-2.0 |
12-32 |
30-120 |
75 |
100 |
7*50 |
|
3 |
H50 |
0.8-2.5 |
16-50 |
30-110 |
110 |
150 |
7*60 |
|
4 |
H60 |
0.8-3 |
20-60 |
30-100 |
132 |
200 |
7*65 |
|
5 |
H76 |
1-3 |
12-76 |
30-100 |
320 |
250 |
8*80 |
|
6 |
H89 |
1-4 |
32-89 |
30-80 |
350 |
300 |
8*80 |
|
7 |
HG114 |
1.5-5 |
45-114 |
30-60 |
400 |
300 |
10*100 |
|
8 |
HG165 |
3-7 |
60-165 |
30-50 |
600 |
400 |
10*110 |
|
9 |
HG219 |
4-8 |
114-219 |
20-40 |
800 |
500 |
12*150 |
|
10 |
HG273 |
4-10 |
114-273 |
15-30 |
1000 |
600 |
18*160 |
|
11 |
HG325 |
4-12 |
165-325 |
10-30 |
1200 |
600 |
18*180 |
|
12 |
HG426 |
4-16 |
165-426 |
8-25 |
1400 |
800 |
18*180 |
|
13 |
HG508 |
4-20 |
219-508 |
8-20 |
2000 |
1000 |
21*180 |
Loading car→Uncoil →Cutting and Welding → Accumulator → Forming, HF welding, anneal welder, Deburring, Cooling, Sizing, Straightening →STD Cold-cutting saw →Transmitting → hydrostatic testing → End facer → Straightener→Packing → Storage
1.) We will send the engineer for the installation and training your workers how to operate this machine in correct way.
2.) Warranty Team
One year quality guarantee, life guarantee repair. Within quality guarantee period, except for failures caused by human error, repair parts will be provided for free. After the quality guarantee period, only charge the cost of the spare parts.
3.) We supply the pre-sell and after-sell service.
pre-sell service: workshop design, and production output design
after-sell service: installation and training, and the skilled engineer for working.
4.) We can also sent the engineer working for you serval months or 1 year. The engineer will help you to improve the output, reduce the waste and decrease the cost.
5.) We supply the pre-sell service-Design for whole project for stainless steel pipe making/ carbon steel pipe making.
6.) We will be responsible for the loading and shipping .
