Automatic ERW Pipe Mill for 40x40mm Square Steel Pipes

Name: Automatic ERW Pipe Mill for 40x40mm Square Steel Pipes
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: HG40
Price: 50,000.00 USD
Availability: InStock

Product Details:

Place of Origin:	China
Brand Name:	TENGTIAN
Certification:	CE ISO9000 BV
Model Number:	HG40

Detail Information

Place of Origin:

China

Brand Name:

TENGTIAN

Certification:

CE ISO9000 BV

Model Number:

HG40

Product Name:

Automatic ERW Pipe Mill For Square Pipe 40x40mm

Product:

Steel Round Pipe And Square Pipe

Feature:

Precision

Material:

Carbon Steel And Galvanized Steel

Other Pipe:

Rectangular Pipe

Max Size:

40x40mm

Thickness:

3mm

Length:

3-6m

Rollers:

Not Include

Key Words:

Automatic ERW Pipe Mill

Highlight:

High Light

Highlight:

Automatic ERW Pipe Mill

Square ERW Pipe Mill

40x40mm ERW Pipe Mill

Trading Information

Minimum Order Quantity:

1 set

Price:

$100000 to $1 million

Packaging Details:

standard export package

Delivery Time:

90 wording days

Payment Terms:

L/C,T/T,Western Union,MoneyGram

Supply Ability:

5 set/month

Product Description

Automatic ERW Pipe Mill For Square Pipe 40x40mm

Product Specifications

Attribute	Value
Product Name	Automatic ERW Pipe Mill For Square Pipe 40x40mm
Product	Steel round pipe and square pipe
Feature	Precision
Material	Carbon steel and galvanized steel
Other pipe	Rectangular pipe
Max size	40x40mm
Thickness	3mm
Length	3-6m
Rollers	Not included

Product Overview

The HG40 High-Frequency Welded Pipe Production Line is engineered to manufacture round pipes (25-50mm) and corresponding square pipes with thickness ranging from 1-3mm. Featuring precision roll pass design, this production line delivers high-quality welded steel pipes with excellent machining quality and assembly precision.

Available Pipe Sizes

Round pipe: 15-50mm
Square pipe: 10x10mm, 15x15mm, 20x20mm, 40x40mm
Rectangular pipe: 20x10mm, 20x30mm
Thickness: 1-3mm

Technical Specifications

Standard	International standard tube mill machine
Material	Galvanized steel
Mechanical properties	σb≤520Mpa, σs≤365MPa
Strip Width	50-120mm
Strip Thickness	1-3mm
Inner Diameter of Coils	Φ508mm
Outer Diameter of Coils	Φ1300～φ2000mm
Coil Weight	≤5T
Pipe-cutting Precision	0-6mm
Forming Speed	Max 80m/min for 1mm thickness

Buyer Requirements

Workshop: 60x12m, H＞5m (crane to ground)
Power: Approx. 3500KW 380V/60Hz/3phases
Circulation Cooling Water (whole system): Flow: 30+30 CBM, Pool Volume: 40m³
Compressed Air (whole system): Flow: 5m³/min, Pressure: 5-7kg/cm²
Cable: All cables outside of machine to be purchased after machine installation

Production Process

Strip steel to coil → uncoiler → end straightener → flattener → shear welder → storage material unit → forming, welding, cooling, accurate pipe diameter sizing → accurate pipe length sizing, cutting → inspection → packaging

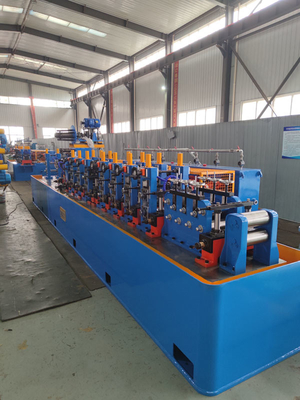

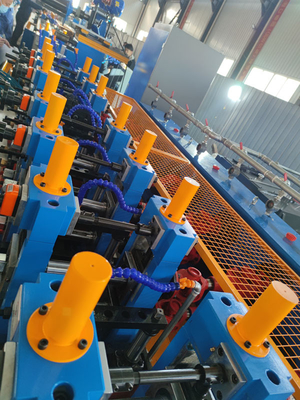

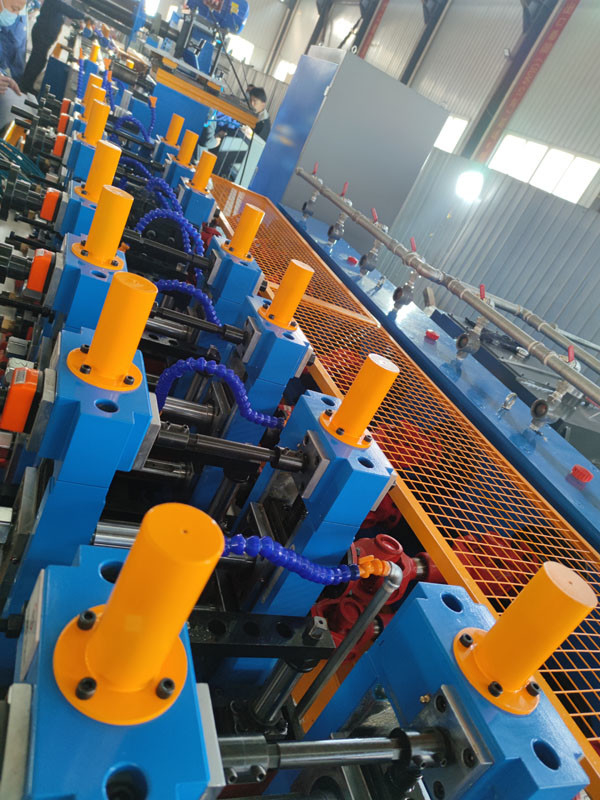

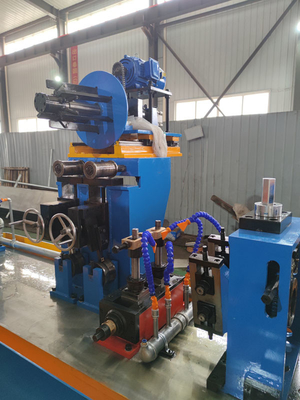

Product Gallery
