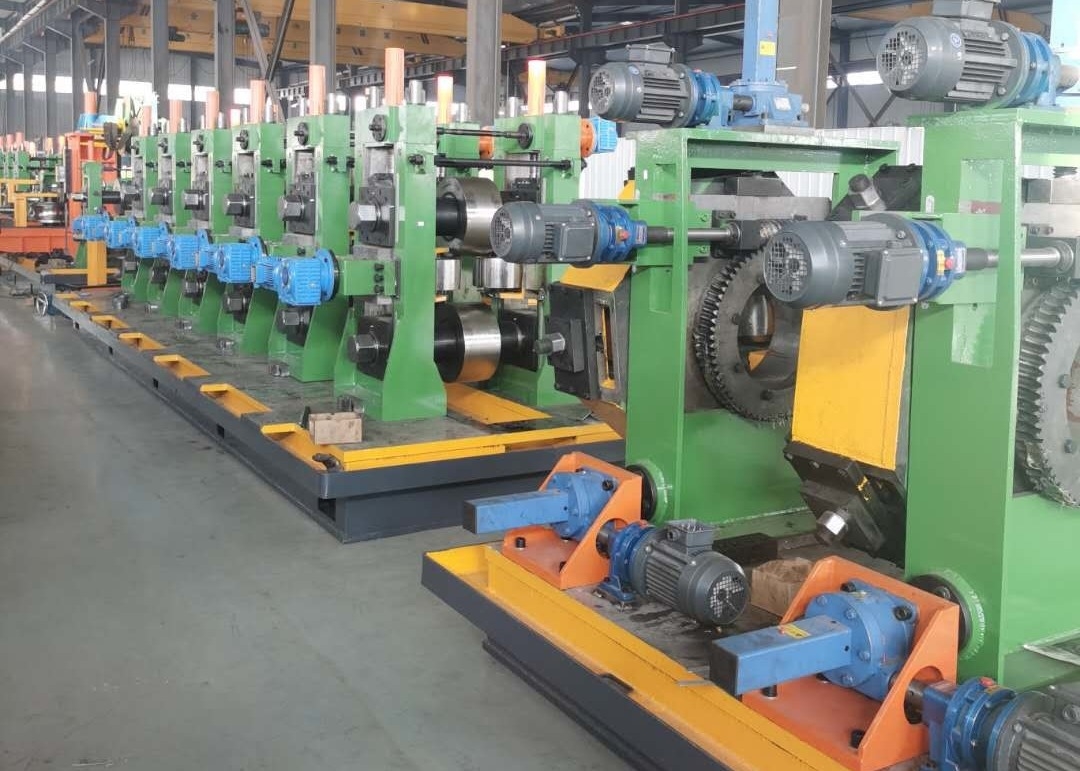

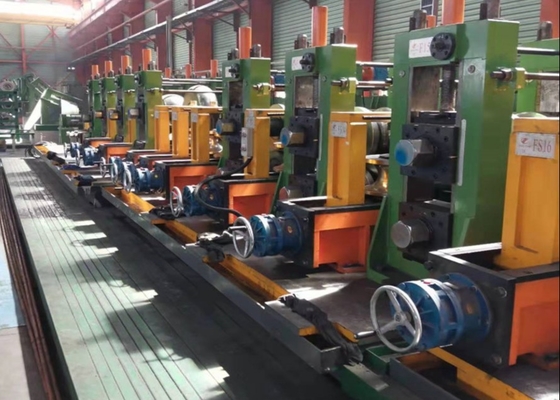

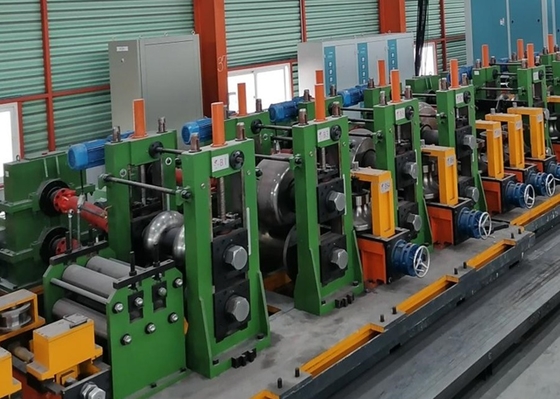

114Mm Quick Change Roller High Frequency Tube Mill Straight Seam Steel

Large Image : 114Mm Quick Change Roller High Frequency Tube Mill Straight Seam Steel

Product Details:

Place of Origin:	Hebei
Brand Name:	TengTian
Certification:	CE, ISO9001, BV
Model Number:	114

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	$100000 to $1 million
Packaging Details:	Export waterproof and Seaworthy packing.
Delivery Time:	300 work days
Payment Terms:	L/C, T/T, D/A, T/T
Supply Ability:	4 Sets/Year

Contact Now

Detailed Product Description

Product Name:	High Frequency Welded Pipe Mill 114Mm Quick Change Roller High Frequency Welded Pipe Mill Straight Seam Steel	Equipment Specification:	High Frequency And Precision
Forming Method:	Roller Squeeze	Warranty:	One Year
Pipe Material:	Steel	Pipe Shape:	Round And Square
Thickness:	1 . 5 Mm - 5 . 0 Mm	Pipe Diameter:	45 - 114
Raw Material:	Steel	Key Words:	High Frequency Welded Pipe Mill
Highlight:	114Mm high frequency tube mill , Quick Change high frequency tube mill , 114Mm hf tube mill

Straight Seam Steel 114 Mm Quick Change Roller Pipe Making Mill Equipment High Frequency Welded Pipe Mill

114 Mm Quick Change Roller Pipe Making Mill Equipment High Frequency Welded Pipe Mill Production Introduction and Process

114 high frequency welded pipe mill line is used to manufacture welded steel pipe.After we absorbed advanced pipe making technology from both abroad and domestic, our innovative designed production line and each single unit of the production line is not only economical but also practical.

Pipe size: 76 - 114 mm Pipe thickness: 1.5 - 4 . 0 mm

Loading car → Uncoil → Flattening → End Shear & Butt Welding → Accumulator → Forming → High-frequency induction welding→ Removing external burr → Cooling → Sizing → Cutting → Layout table

114 Mm Quick Change Roller Pipe Making Mill Equipment High Frequency Welded Pipe Mill Equipment composition

No.	Name
1	Uncoiler
2	Straightener & leveler
3	Automatic shear and welding
4	Feeder and punching machine
5	Automatic forming and sizing part
6	Cutting machine
7	Packing and palletizing

114 Mm Quick Change Roller Pipe Making Mill Main Parameters and Specifications:

⑴ Material Specifications:

Material	low carbon steel galvanize and crabon steel tube
Mechanical properties	σb≤520Mpa,σs≤340MPa
strip width	230 - 360 mm
strip thickness	1 . 5 - 4 . 0 mm
I.D of Coils	520 - 580 mm
O.D of Coils	1000 - 1600 mm
Coil Weight	≤ 7T

⑵ Welded Pipe Specification

Pipe Diameter	Φ 76～ φ 114 mm
pipe thickness	1 . 5 - 4 . 0 mm
Finish pipe length	4 - 6 m
Cut length accuracy	± 3 mm
Forming speed	40 - 50 m/min

(3)Power, Water & Air Supply

1	Power	Power Volume of the Line	Approx.800KW
		Power Source	415V/50Hz/3phases
2	Circulation Cooling Water	Flow	30T/h～40 T/h
		Pool Volume	60m³
3	Compressed Air	Flow	5m³/min
		Pressure	5～7kg/ cm²
