Precision Tube Mill for Round Pipe 45-102mm Diameter Carbon Steel

Name: Precision Tube Mill for Round Pipe 45-102mm Diameter Carbon Steel
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: HG89
Price: 50,000.00 USD
Availability: InStock

Product Details:

Place of Origin:	China
Brand Name:	TENGTIAN
Certification:	CE ISO9000 BV
Model Number:	HG89

Detail Information

Place of Origin:

China

Brand Name:

TENGTIAN

Certification:

CE ISO9000 BV

Model Number:

HG89

Product Name:

Precision Tube Mill For Round Pipe Large Diameter 102mm Industrial Tube Mills

Max Size:

32 - 89 Mm

Thickness:

1.0 - 4.0 Mm

Length:

Warranty:

One Year

Pipe Material:

Carbon Steel

Pipe Shape:

Round

Keyword:

Precision Tube Mill

Highlight:

High Light

Highlight:

102mm Industrial Tube Mills

Carbon Steel Precision Tube Mill

102mm Precision Tube Mill

Trading Information

Minimum Order Quantity:

1 set

Price:

$100000 to $1 million

Packaging Details:

standard export package

Delivery Time:

100 wording days

Payment Terms:

L/C,D/A,D/P,T/T

Supply Ability:

5 set/year

Product Description

Precision Tube Mill For Round Pipe Large Diameter 102mm Industrial Tube Mills

Product Specifications

Attribute	Value
Product Name	Precision Tube mill For Round Pipe Large Diameter 102mm Industrial Tube Mills
Max size	32 - 89 mm
Thickness	1.0 - 4.0 mm
Length	6m
Warranty	One year
Pipe material	Carbon steel
Pipe shape	Round

The high-precision round welded pipe production line is designed to produce welded pipes with diameters ranging from Φ45-Φ102 mm and wall thicknesses of 1.0-4.0 mm. This equipment offers exceptional precision and stability, with main components processed by CNC machining centers to ensure accuracy throughout the entire machine and guarantee superior product quality.

As a CE & ISO9001:2008 certified pipe making machine manufacturer and supplier based in China, our machines are exported to over 30 countries worldwide including Turkey, Egypt, Morocco, Kazakhstan, and Mexico, recognized for their high quality, reliable performance, and long service life.

Main Parameters and Specifications

Material Specifications

Material	Low carbon steel and low alloy constructional steel
Strip width	160 - 320 mm
Strip thickness	1.0 - 4.0 mm
I.D of Coils	508 mm
O.D of Coils	1800 mm
Coil Weight	6 T

Welded Pipe Specification

Round Pipe Diameter	Φ45～φ102 mm
Pipe thickness	1.0 - 4.0 mm
Finish pipe length	6 m
Cut length accuracy	±3 mm
Forming speed	20 - 60 m/min

Workshop requirements: 6m wide, 80m long, with at least 5m clearance from ceiling rails to ground. Note: Can be modified according to actual workshop length.

Production Line Components

Hydraulic uncoiler
Automatic Shear and welder
Spiral horizontal accumulator

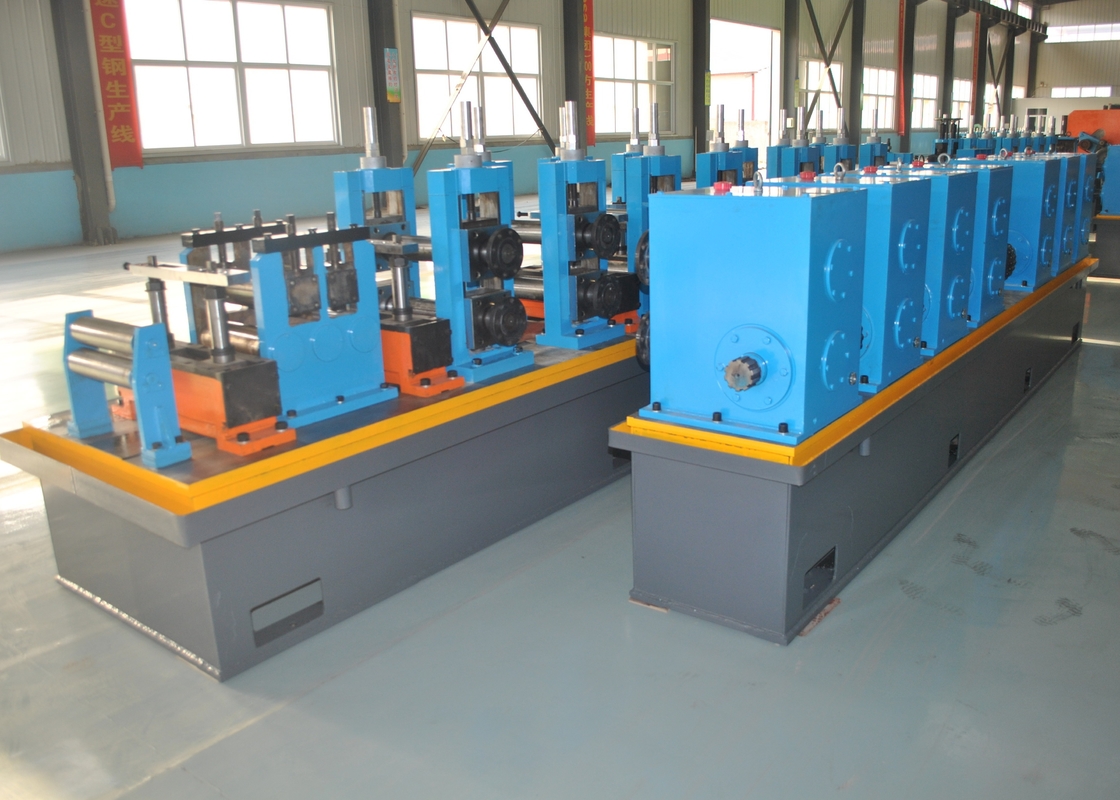

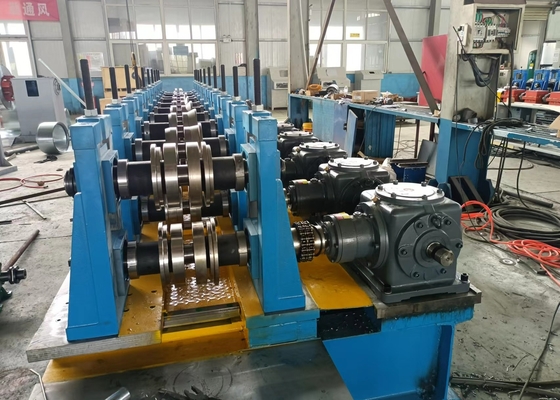

Forming and Sizing Mill (including forming stand, weld seam guide stand, squeeze roll stand, welding bead cutter, water cooling unit, sizing stand, and gear box)
Cold saw
Run out table
300Kw High Frequency Welder
