Precision Tube Mill for 76mm Round and Square Pipes

Name: Precision Tube Mill for 76mm Round and Square Pipes
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: HG76
Price: 50,000.00 USD
Availability: InStock

Product Details:

Place of Origin:	China
Brand Name:	TENGTIAN
Certification:	CE ISO9000 BV
Model Number:	HG76

Detail Information

Place of Origin:

China

Brand Name:

TENGTIAN

Certification:

CE ISO9000 BV

Model Number:

HG76

Machine Name:

Precision Tube Mill Rolling Forming 76mm Round Tube

Product:

Round Pipe And Square Pipe

Feature:

Precision

Material:

Carbon Steel And Galvanized Steel

Other Pipe:

Rectangular Pipe

Max Size:

76mm

Thickness:

1-3mm

Length:

3-6m

Rollers:

Not Include

Model:

76mm

Key Words:

Precision Tube Mill

Highlight:

High Light

Highlight:

High Frequency Welded Pipe Mill 76mm

Precision Tube Mill 76mm

Round Tube Mill 76mm

Trading Information

Minimum Order Quantity:

1 set

Price:

$100000 to $1 million

Packaging Details:

standard export package

Delivery Time:

90 wording days

Payment Terms:

L/C,T/T,Western Union,MoneyGram

Supply Ability:

5 set/month

Product Description

Precision Tube Mill Rolling Forming 76mm Round Tube

Product Specifications

Attribute	Value
Machine Name	Precision Tube Mill Rolling Forming 76mm Round tube
Product	Round pipe and square pipe
Feature	Precision
Material	Carbon steel and galvanized steel
Other pipe	Rectangular pipe
Max size	76mm
Thickness	1-3mm
Length	3-6m
Rollers	Not included
Model	76mm

Product Overview

The HG76 High-Frequency Welded Pipe Production Line is engineered to manufacture precision square pipes ranging from 30-89mm with thickness of 1-3mm. Utilizing advanced roll pass design, this production line delivers welded steel pipes with exceptional machining quality and high assembly precision.

Technical Specifications

Material Specifications:

Standard: International standard tube mill machine
Material: Galvanized steel
Mechanical properties: σb≤520Mpa, σs≤365MPa
Strip Width: 60-240mm
Strip Thickness: 1-3mm
Inner Diameter of Coils: Φ508mm
Outer Diameter of Coils: Φ1300～φ2000mm
Coil Weight: ≤5T

Pipe Specifications:

Pipe Diameter: 25-76mm
Length: 3-6m
Pipe-cutting Precision: 0-6mm
Forming Speed: max 80m/min for 2mm thickness

Buyer-Supplied Requirements:

Work shop: 60x12m, H＞5m (crane to ground)
Power: Approx.3500KW 380V/60Hz/3phases
Circulation Cooling Water (whole system): Flow:30+30 CBM, Pool Volume:40m³
Compressed Air (whole system): Flow:5m³/min, Pressure: 5-7kg/cm²
Cable: All cable outside of machine to be supplied by buyer after machine installation

Production Process

Strip steel to coil → Uncoiler → End straightener → Flattener → Shear welder → Storage material unit → Forming, welding, cooling, accurate pipe diameter sizing → Accurate pipe length sizing, cutting → Inspection → Packaging

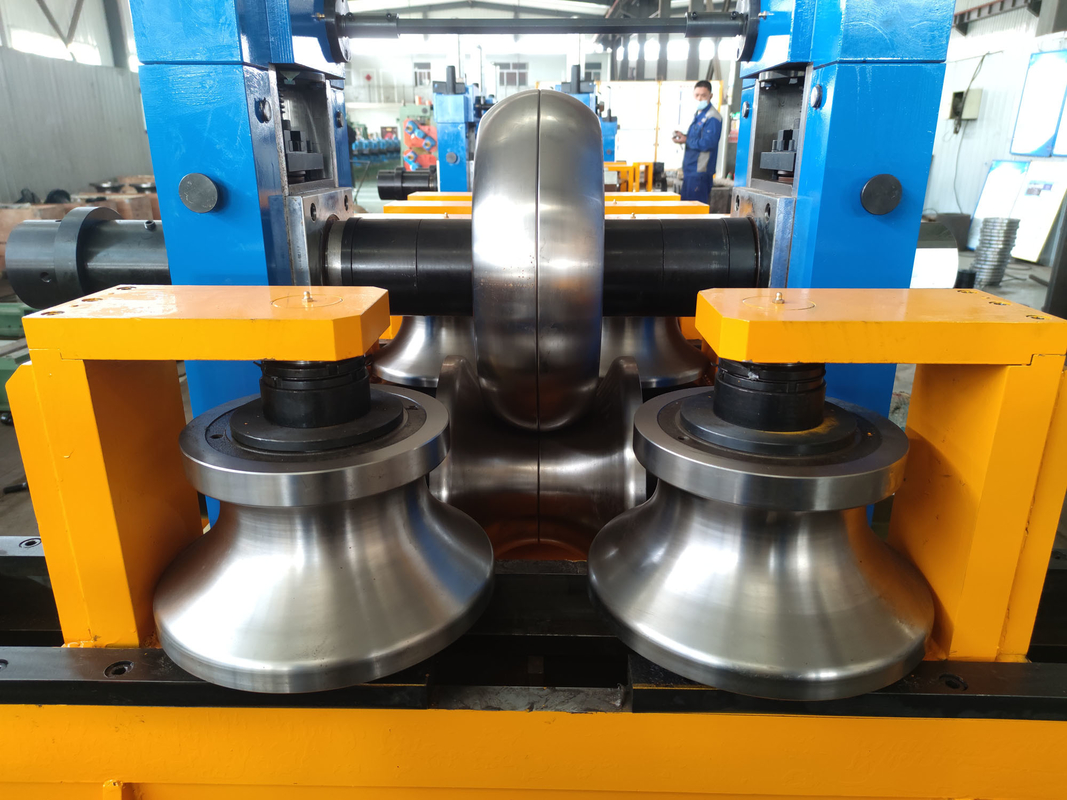

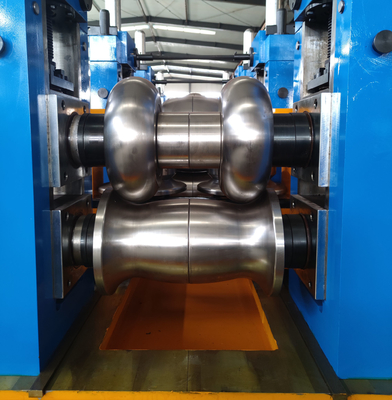

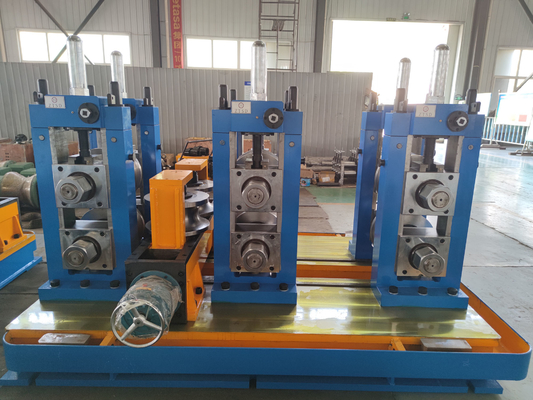

Product Images
