60mm Carbon Steel Tube Mill Machine for Round Pipe Roll Forming

Product Details:

Place of Origin:	China
Brand Name:	TENGTIAN
Certification:	CE ISO9000 BV
Model Number:	60

Detail Information

Place of Origin:

China

Brand Name:

TENGTIAN

Certification:

CE ISO9000 BV

Model Number:

Production Name:

Professional 60 Mm Fast Speed Carbon Steel Tube Mill Machine Round Roll Forming Machine

Feature:

Blue And Round Tube Mill

Other Pipe:

Rectangle Pipe And Square Pipe

Max Size:

25 - 60 Mm

Thickness:

0 . 6 - 3 . 5 Mm

Length:

4 - 6 M

Rollers:

Include

Warranty:

One Year

Key Words:

Tube Mill Machine

Highlight:

High Light

Highlight:

60Mm Carbon Steel Tube Mill

60Mm round pipe roll forming machine

Fast Speed Carbon Steel Tube Mill

Trading Information

Minimum Order Quantity:

1 set

Price:

$100000 to $1 million

Packaging Details:

standard export package

Delivery Time:

100 working days

Payment Terms:

L/C,D/A,D/P,T/T

Supply Ability:

5 set/year

Product Description

Fast Speed 60Mm Carbon Steel Tube Mill Machine Round Pipe Roll Forming Machine

Product Specifications

Production Name	Professional 60 Mm Fast Speed Carbon Steel Tube Mill Machine Round Roll Forming Machine
Feature	Blue and round tube mill
Other pipe types	Rectangle pipe and square pipe
Max size	25 - 60 mm
Thickness	0.6 - 3.5 mm
Length	4 - 6 m
Rollers	Included
Warranty	One year

Professional 60mm Fast Speed Carbon Steel Tube Mill Machine

This welded pipe mill line is designed for manufacturing high-quality welded steel pipes. Combining advanced domestic and international pipe-making technologies, our innovative production line offers both economical and practical solutions for pipe manufacturing.

Available Pipe Sizes

Square pipe: 20X20-60X60mm
Rectangular pipe: 20X25-40X80mm
Pipe thickness: 0.6-3.5mm

Welded Pipe Mill Models

Serial No.	Model	Thickness (mm)	Specification (mm)	Speed (m/min)	Main Engine (kw)	Power (kw)	Area
1	H20	0.3-1	8-20	30-120	55	60	7*50
2	H32	0.3-2.0	12-32	30-120	75	100	7*50
3	H50	0.8-2.5	16-50	30-110	110	150	7*60
4	H60	0.8-3	20-60	30-100	132	200	7*65
5	H76	1-3	12-76	30-100	320	250	8*80
6	H89	1-4	32-89	30-80	350	300	8*80
7	HG114	1.5-5	45-114	30-60	400	300	10*100
8	HG165	3-7	60-165	30-50	600	400	10*110
9	HG219	4-8	114-219	20-40	800	500	12*150
10	HG273	4-10	114-273	15-30	1000	600	18*160
11	HG325	4-12	165-325	10-30	1200	600	18*180
12	HG426	4-16	165-426	8-25	1400	800	18*180
13	HG508	4-20	219-508	8-20	2000	1000	21*180

Technical Parameters and Specifications

Material Specifications

Material	Low carbon steel, galvanized and carbon steel tube
Mechanical properties	σb≤520Mpa, σs≤340MPa
Strip width	100 - 190 mm
Strip thickness	0.6 - 3.5 mm
I.D of Coils	Φ 480 - 510 mm
O.D of Coils	φ 1000 - 1600 mm
Coil Weight	≤ 4T

Welded Pipe Specifications

Pipe Diameter	Φ 25～ φ 60 mm
Pipe thickness	0.6 - 3.5 mm
Finish pipe length	4 - 6 m
Cut length accuracy	± 3 mm
Forming speed	20 - 70 m/min

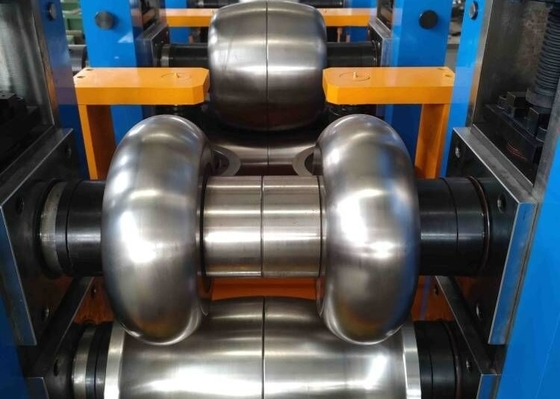

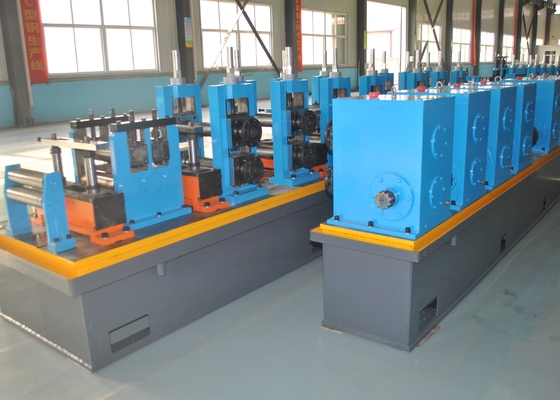

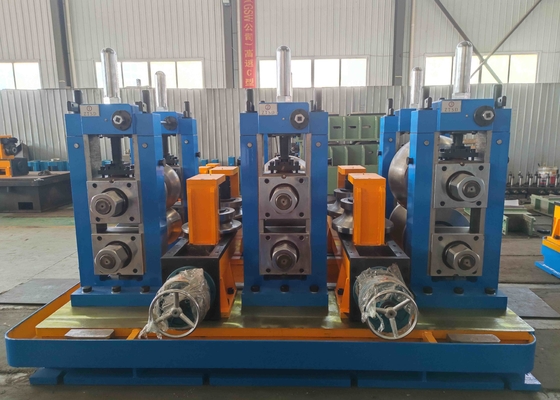

Operation Scenes
