Construction Milling Saw 19mm-76mm Pipe Making Machine Automatic Tube Mill

Large Image : Construction Milling Saw 19mm-76mm Pipe Making Machine Automatic Tube Mill

Product Details:

Place of Origin:	CHINA
Brand Name:	TENGTIAN
Certification:	ISO9001.BV,CE
Model Number:	76

Payment & Shipping Terms:

Minimum Order Quantity:	1SET
Price:	$100000 to $1 million
Packaging Details:	Export waterproof and Seaworthy packing.
Delivery Time:	60 work days
Payment Terms:	L/C, T/T, Western Union, MoneyGram
Supply Ability:	5 Sets/Year

Contact Now

Detailed Product Description

Production Name:	Construction Milling Saw 19mm-76mm Pipe Making Machine Automatic Tube Mill	Application:	Tube Production
Voltage:	380V/220V	Pipe Diameter:	19-76mm
Thickness:	0.8-3.0mm	Speed:	30-120m/min
Key Words:	Pipes Making Process Steel Line
Highlight:	Construction Milling Saw Automatic Tube Mill , 76mm Pipe Making equipment , 19mm Automatic Tube Mill

Construction Milling Saw 19mm-76mm Pipe Making Machine Automatic Tube Mill

Construction Milling Saw Automatic Round Tube Mill Pipes Making Process Steel Line General Introduction:

Construction Milling Saw 19mm-76mm Pipe Making Machine Automatic Tube Mill is specially used for producingΦ19.05-Φ76.2mm, δ0.8-3.0mm high-frequency straight seam welded pipe and corresponding square pipe and special-shaped pipe(δ≤2.5mm). The composition of equipment is from uncoiler to fixed length cutting saw. Rolling speed can be adjusted correspondingly within suitable range of pipe diameter and wall thickness.

Automatic Round Tube Mill Dimension range of processing steel tube:

(1) O.D.: Φ19.05-Φ76.2mm

(2) Square pipe size: 18x18~60x60mm

(3) rectangle pipe size:15x20~40x80mm

(4) Wall thickness: 0.8-3.0mm(square pipe and special-shaped pipeδ≤2.5mm)

(5) Length: 4-8m

Milling speed: 30-80M/min

Automatic Round Tube Mill Product Process Flow:

raw material (steel coil) → uncoiling → shearing and end welding → material accumulating → non-power leveling → mill-forming → high-frequency welding → removing burrs outside of weld seam → cooling → sizing → roughly straightening → fixed length cutting → finishing tube

Tube Mill Other Model:

Model	Diameter Range	Pipe Thickness	Line Speed(m/min)
HG20	8-25.4MM	0.3-1.2MM	120
HG32	10-32MM	1.4-1.5MM	120
HG50	16-76MM	0.7-2.5MM	30-120
HG76	25-76MM	1-4MM	30-100
HG89	32-89MM	1-4.5MM	30-80
HG114	45-114MM	1.5-5.0MM	30-60
HG165	60-165MM	3-7MM	30-50
HG219	114-219MM	4-8MM	20-40
HG273	114-273MM	4-10MM	15-30
HG325	165-325MM	4-10MM	10-30
HG426	165-426MM	4-12.7MM	8-25
HG508	219-508MM	4-16MM	8-20

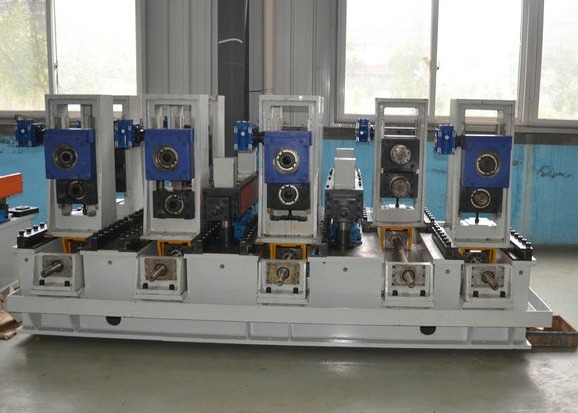

Construction Milling Saw 19mm-76mm Pipe Making Machine Automatic Tube Mill 0

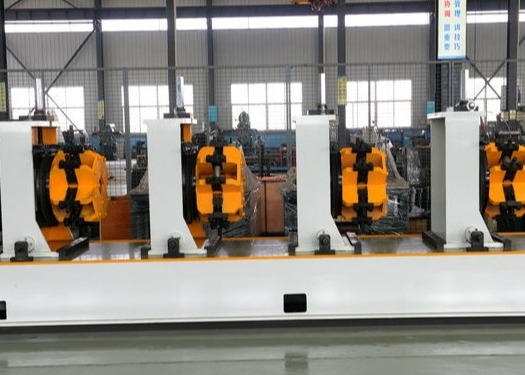

Construction Milling Saw 19mm-76mm Pipe Making Machine Automatic Tube Mill 1
