100x100mm High Speed HRC Automatic Tube Mill Square Tube Forming Machine

Large Image : 100x100mm High Speed HRC Automatic Tube Mill Square Tube Forming Machine

Product Details:

Place of Origin:	Hebei
Brand Name:	Tengtian
Certification:	CE,ISO9001,BV
Model Number:	HG100x100

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	$100000 to $1 million
Packaging Details:	Export waterproof and Seaworthy packing.
Delivery Time:	four month
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	30 Sets

Contact Now

Detailed Product Description

Mill Name:	100x100mm Square Steel Pipe Forming Automatic Tube Mill High Speed	Material:	HRC,CRC,Galvanised Steel
Pipe Diamete:	30x30-100x100mm	Pipe Thickness:	2.0-6.0mm
Welding Type:	High Frequency Welding	Pipe Shape:	Square,rectangular,LTZ
Roller Materoal:	Cr12/SKD11	Key Words:	Automatic Tube Mill
Highlight:	100x100mm Automatic Tube Mill , 100x100mm Square Tube Forming Machine , HRC Automatic Tube Mill

100x100mm Square Steel Pipe Forming Automatic Tube Mill High Speed

Product Description:

100x100mm Square Steel Pipe Forming Automatic Tube Mill High Speed is used to manufacture welded steel pipe.After we absorbed advanced pipe making technology from both abroad and domestic, can product different size,shape tube and ensure the tube precision.square pipe size: 30x30--100x100mm Pipe thickness: 2.0-6.0mm,we has different model tube mill machine,also can design according to customer different require.

Main Parameters and Specifications:

Material Specifications

Conforming to the YB189-64 standard
Material	Low carbon steel and low alloy constructional steel
Mechanical properties	σb≤380Mpa,σs≤275MPa
strip width	120～400mm
strip thickness	2.0～6.0mm
I.D of Coils	Φ508mm
O.D of Coils	φ1800mm
Coil Weight	≤6T

Welded Pipe Specification

square tube size	30x30-100x100mm
pipe thickness	2.0-6.0mm
Finish pipe length	4-8m
Cut length accuracy	±2mm
Forming speed	10-60m/min

working process

strip steel to coil→uncoiler →shear welder→storage material unit →formed,welding,cooling,accurate pipe Dia. size →accurate pipe length size,cutting→inspection →package

ERW Tube Mill Other Model

Model	Diameter Range	Pipe Thickness	Line Speed(m/min)
HG20	8-25.4MM	0.3-1.2MM	120
HG32	10-32MM	1.4-1.5MM	120
HG50	16-76MM	0.7-2.5MM	30-120
HG76	25-76MM	1-4MM	30-100
HG89	32-89MM	1-4.5MM	30-80
HG114	45-114MM	1.5-5.0MM	30-60
HG165	60-165MM	3-7MM	30-50
HG219	114-219MM	4-8MM	20-40
HG273	114-273MM	4-10MM	15-30
HG325	165-325MM	4-10MM	10-30
HG426	165-426MM	4-12.7MM	8-25
HG508	219-508MM	4-16MM	8-20

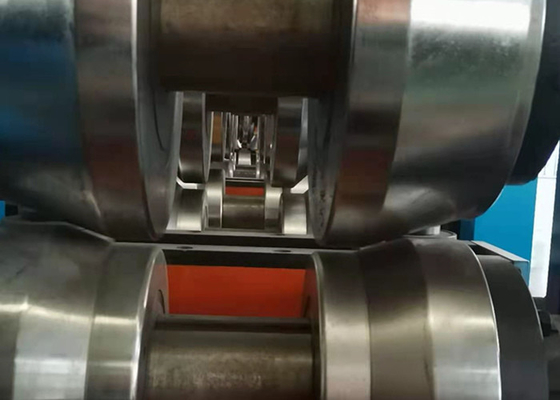

100x100mm High Speed HRC Automatic Tube Mill Square Tube Forming Machine 0

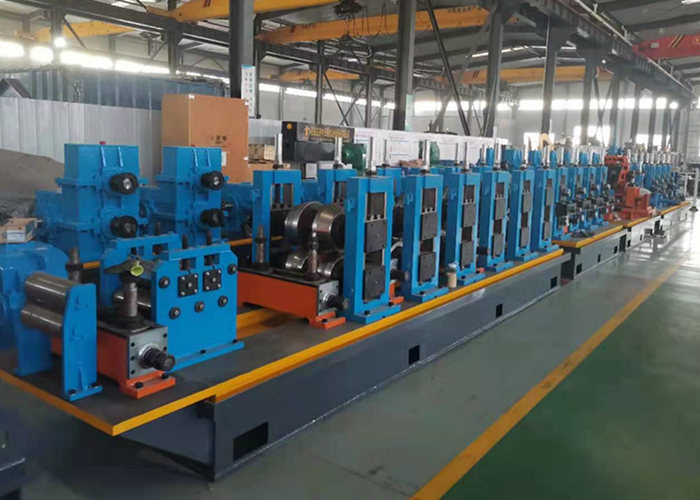

100x100mm High Speed HRC Automatic Tube Mill Square Tube Forming Machine 1

100x100mm High Speed HRC Automatic Tube Mill Square Tube Forming Machine 2

100x100mm High Speed HRC Automatic Tube Mill Square Tube Forming Machine 3
