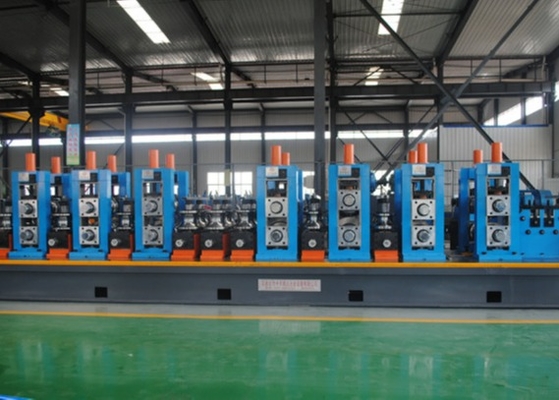

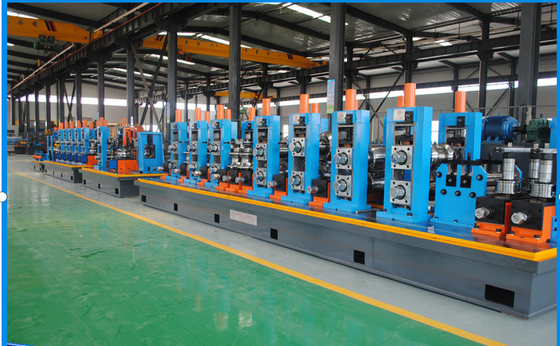

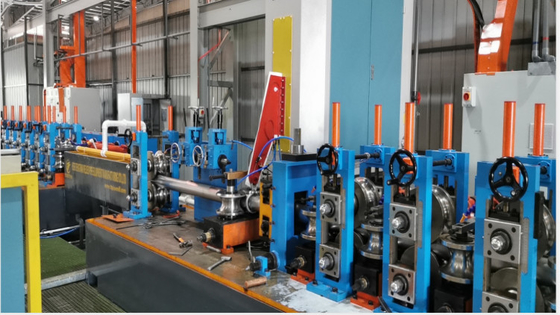

16mm-76mm Low Carbon Steel SS Pipe Making Machine FF Forming Steel Pipe Production Line

16mm-76mm Low Carbon Steel SS Pipe Making Machine FF Forming Steel Pipe Production Line
16mm-76mm Low Carbon Steel SS Pipe Making Machine FF Forming Steel Pipe Production Line 16mm-76mm Low Carbon Steel SS Pipe Making Machine FF Forming Steel Pipe Production Line 16mm-76mm Low Carbon Steel SS Pipe Making Machine FF Forming Steel Pipe Production Line

Large Image :  16mm-76mm Low Carbon Steel SS Pipe Making Machine FF Forming Steel Pipe Production Line

Product Details:
Place of Origin: China
Brand Name: TENGTIAN
Certification: CE ISO9000 BV
Model Number: 76
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: $100000 to $1 million
Packaging Details: standard export package
Delivery Time: 100 working days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 5 set/year
Detailed Product Description
Mill Name: 16mm-76mm Low Carbon Steel SS Pipe Making Machine FF Forming Steel Pipe Production Line Model: 16 - 76 Mm
Feature: FF Forming Other Pipe: Round , Square And Rectangular Pipe
Max Size: 16 - 76 Mm Thickness: 0 . 4 - 2 . 75 Mm
Length: 4 M - 6 M Rollers: Include
Warranty: One Year Key Words: Size 16-76mm Low Carbon Steel /SS
Highlight:

16mm SS Pipe Making Machine

,

SS Pipe Making Machine FF Forming

,

ss pipe manufacturing machine FF Forming

16mm-76mm Low Carbon Steel SS Pipe Making Machine FF Forming Steel Pipe Production Line



1.16mm-76mm Low Carbon Steel SS Pipe Making Machine FF Forming Steel Pipe Production Line General Introduction



16mm-76mm Low Carbon Steel SS Pipe Making Machine FF Forming Steel Pipe Production Line is used to manufacture welded steel pipe.After we absorbed advanced pipe making technology from both abroad and domestic, our innovative designed production line and each single unit of the production line is not only economical but also practical.



Round pipe size: 16--76mm    Round pipe thickness:0.4-2.75mm   Square tube size:15×15--60×60mm   Square Pipe thickness: 0.4-2.0mm



2.16mm-76mm Low Carbon Steel SS Pipe Making Machine FF Forming Steel Pipe Production Line Basic Parameters



Material Specifications:



Conforming to the YB189-64 standard
Material Low carbon steel and low alloy constructional steel
Mechanical properties σb≤380Mpa,σs≤275MPa
strip width 50~240mm
strip thickness 0.4~2.75mm
I.D of Coils Φ508mm
O.D of Coils φ1800mm
Coil Weight ≤3.0T




Welded Pipe Specification



Round Pipe Diameter Φ16~φ76mm
pipe thickness 0.4-2.75mm
Finish pipe length 4-6m
Cut length accuracy ±2mm
Forming speed 60-120m/min


3.Working Process:


strip steel to coil→uncoiler →end straightener→flattener→shear welder→storage material unit →formed,welding,cooling,accurate pipe Dia. size →accurate pipe length size,cutting→inspection →package


4.Quality and After-sale Service Warranty



Equipment arriving at the buyer, the technical services personnel at the scene debugging, maintenance, equipment commissioning, commissioning, operation and maintenance instruction, responsible for technical training for equipment operation and maintenance personnel of the buyer. Used in users abide by the rules, under normal operating equipment, since 12 months from the date of the arrival of the equipment, such as positively impact on the quality to use, parts damage lead to equipment can't normal work, factory will give the repair or replacement free of charge.



1.) We will send the engineer for the installation and training your workers how to operate this machine in correct way.
2.) Warranty Team
One year quality guarantee, life guarantee repair. Within quality guarantee period, except for failures caused by human error, repair parts will be provided for free. After the quality guarantee period, only charge the cost of the spare parts.
3.) We supply the pre-sell and after-sell service.
pre-sell service: workshop design, and production output design
after-sell service: installation and training, and the skilled engineer for working.
4.) We can also sent the engineer working for you serval months or 1 year. The engineer will help you to improve the output, reduce the waste and decrease the cost.
5.) We supply the pre-sell service-Design for whole project for stainless steel pipe making/ carbon steel pipe making.
6.) We will be responsible for the loading and shipping .



16mm-76mm Low Carbon Steel SS Pipe Making Machine FF Forming Steel Pipe Production Line 0

16mm-76mm Low Carbon Steel SS Pipe Making Machine FF Forming Steel Pipe Production Line 1
