100m/Min Welded Precision Square Tube Mill 19.1-50.8mm

Name: 100m/Min Welded Precision Square Tube Mill 19.1-50.8mm
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: HG76
Price: 50,000.00 USD
Availability: InStock

Product Details:

Place of Origin:	China
Brand Name:	TENG TIAN
Certification:	ISO9001/BV
Model Number:	HG76

Detail Information

Place of Origin:

China

Brand Name:

TENG TIAN

Certification:

ISO9001/BV

Model Number:

HG76

Product Name:

100m/Min Welded Precision 19.1×19.1-50.8×50.8mm Square Tube Mill

After-sales Service Provided:

Engineers Available To Service Machinery Overseas

Pipe Material:

Carbon Steel

Voltage:

380V

Power(w):

450KW

Speed:

40-100 M / Min

Pipe Shape:

Round, Square & Rectangular

Round Pipe Diameter:

19.1×19.1-50.8×50.8mm

Warranty:

1 Year

Keywords:

Color Blue Square Tube Mill

Highlight:

High Light

Highlight:

100m/min Precision Tube Mill

Precision Tube Mill High Production

Welded Tube Mill High Production

Trading Information

Minimum Order Quantity:

1set

Price:

$100000 to $1 million

Packaging Details:

Seaworthy packing

Delivery Time:

3 months

Supply Ability:

150 units a year

Product Description

100m/Min Welded Precision 19.1×19.1-50.8×50.8mm Square Tube Mill

Product Specifications

Attribute	Value
Product name	100m/Min Welded Precision 19.1×19.1-50.8×50.8mm Square Tube Mill
After-sales service	Engineers available to service machinery overseas
Pipe material	Carbon Steel
Voltage	380V
Power	450KW
Speed	40-100 m/min
Pipe Shape	Round, Square & Rectangular
Round Pipe Diameter	19.1×19.1-50.8×50.8mm
Warranty	1 year

Product Description

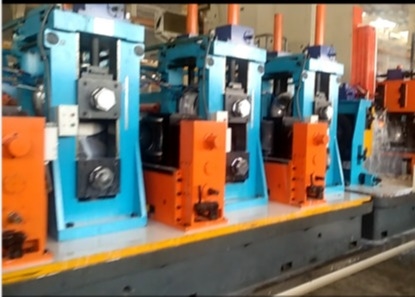

The 100m/Min Welded Precision Square Tube Mill is designed for manufacturing high-quality welded steel pipes. Incorporating advanced pipe making technology from domestic and international sources, our innovative production line offers both economical and practical solutions for pipe manufacturing.

Square pipe size: 19.1×19.1-50.8×50.8mm
Round pipe size: 19.1×38.1-25.4×76.2mm
Pipe thickness: Maximum 1.0mm

Available Models

Serial No.	Model	Thickness (mm)	Specification (mm)	Speed (m/min)	Main Engine (kw)	Power (kw)	Area
1	H20	0.3-1	8-20	30-120	55	60	7*50
2	H32	0.3-2.0	12-32	30-120	75	100	7*50
3	H50	0.8-2.5	16-50	30-110	110	150	7*60
4	H60	0.8-3	20-60	30-100	132	200	7*65
5	H76	1-3	12-76	30-100	320	250	8*80
6	H89	1-4	32-89	30-80	350	300	8*80
7	HG114	1.5-5	45-114	30-60	400	300	10*100
8	HG165	3-7	60-165	30-50	600	400	10*110
9	HG219	4-8	114-219	20-40	800	500	12*150
10	HG273	4-10	114-273	15-30	1000	600	18*160
11	HG325	4-12	165-325	10-30	1200	600	18*180
12	HG426	4-16	165-426	8-25	1400	800	18*180
13	HG508	4-20	219-508	8-20	2000	1000	21*180

Production Process

Loading car
Uncoil
Cutting and Welding
Accumulator
Forming, HF welding, anneal welder, Deburring, Cooling, Sizing, Straightening
STD Cold-cutting saw
Transmitting
Hydrostatic testing
End facer
Straightener
Packing
Storage

Our Service

Engineer dispatch for installation and operator training
One year quality guarantee with lifetime repair service
Pre-sale services including workshop design and production output planning
After-sale services including installation, training, and technical support
Option for extended engineer support (several months to 1 year)
Complete project design services for stainless steel and carbon steel pipe production
Responsibility for loading and shipping arrangements
