Product Details:
Payment & Shipping Terms:
|
Product Name: | Diameter 1/2"-2Inch Tube Mill Line Max 100m/Min Steel Pipe Production Line | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
---|---|---|---|
Pipe Material: | Carbon Steel | Voltage: | 380V |
Power(w): | 600KW | Speed: | 40-100m / Min |
Pipe Shape: | Round, Square & Rectangular | Square Pipe Diameter: | 10*40-41*41mm |
Warranty: | 1 Year | Keywords: | Max 100 M / Min Color White Speed Steel Pipe Production Line |
Highlight: | 2Inch Tube Mill Production Line,Tube Mill Production Line 100m/Min,steel pipe production line 100m/Min |

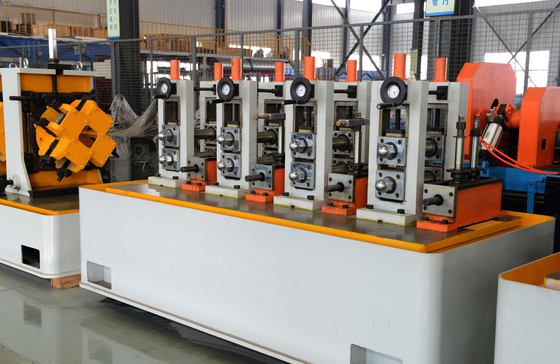

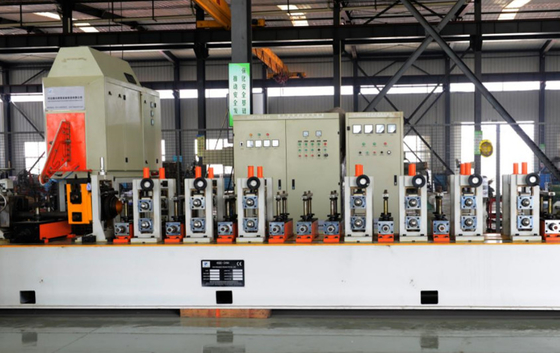

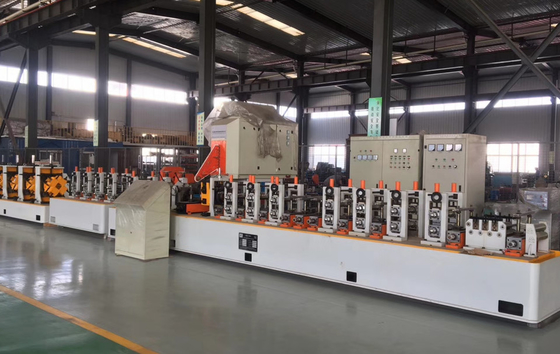

HG50 high frequency straight welded pipe mill line is used to manufacture welded steel pipe.After we absorbed advanced pipe making technology from both abroad and domestic, our innovative designed production line and each single unit of the production line is not only economical but also practical.
Round pipe size: 12.7--53mm
Square tube size:10×10--41×41mm
Pipe thickness: 0.6-2.0mm
Serial number |
Model |
Thickness(mm) |
Specification(mm) |
Speed(m/min) |
main engine(kw) |
Power(kw) |
area |
1 |
H20 |
0.3-1 |
8-20 |
30-120 |
55 |
60 |
7*50 |
2 |
H32 |
0.3-2.0 |
12-32 |
30-120 |
75 |
100 |
7*50 |
3 |
H50 |
0.8-2.5 |
16-50 |
30-110 |
110 |
150 |
7*60 |
4 |
H60 |
0.8-3 |
20-60 |
30-100 |
132 |
200 |
7*65 |
5 |
H76 |
1-3 |
12-76 |
30-100 |
320 |
250 |
8*80 |
6 |
H89 |
1-4 |
32-89 |
30-80 |
350 |
300 |
8*80 |
7 |
HG114 |
1.5-5 |
45-114 |
30-60 |
400 |
300 |
10*100 |
8 |
HG165 |
3-7 |
60-165 |
30-50 |
600 |
400 |
10*110 |
9 |
HG219 |
4-8 |
114-219 |
20-40 |
800 |
500 |
12*150 |
10 |
HG273 |
4-10 |
114-273 |
15-30 |
1000 |
600 |
18*160 |
11 |
HG325 |
4-12 |
165-325 |
10-30 |
1200 |
600 |
18*180 |
12 |
HG426 |
4-16 |
165-426 |
8-25 |
1400 |
800 |
18*180 |
13 |
HG508 |
4-20 |
219-508 |
8-20 |
2000 |
1000 |
21*180 |
Loading car→Uncoil →Cutting and Welding → Accumulator → Forming, HF welding, anneal welder, Deburring, Cooling, Sizing, Straightening →STD Cold-cutting saw →Transmitting → hydrostatic testing → End facer → Straightener→Packing → Storage
1.) We will send the engineer for the installation and training your workers how to operate this machine in correct way.
2.) Warranty Team
One year quality guarantee, life guarantee repair. Within quality guarantee period, except for failures caused by human error, repair parts will be provided for free. After the quality guarantee period, only charge the cost of the spare parts.
3.) We supply the pre-sell and after-sell service.
pre-sell service: workshop design, and production output design
after-sell service: installation and training, and the skilled engineer for working.
4.) We can also sent the engineer working for you serval months or 1 year. The engineer will help you to improve the output, reduce the waste and decrease the cost.
5.) We supply the pre-sell service-Design for whole project for stainless steel pipe making/ carbon steel pipe making.
6.) We will be responsible for the loading and shipping .
