600KW Square Tube Mill for 40x40-60x80mm Pipes 60m/Min

Product Details:

Place of Origin:	CHINA
Brand Name:	TENGTIAN
Certification:	ISO9001.BV,CE
Model Number:	89

Detail Information

Place of Origin:

CHINA

Brand Name:

TENGTIAN

Certification:

ISO9001.BV,CE

Model Number:

Production Name:

40×40--60×80mm Pipe 600KW 60m/Min Pipe Making Machine Square Tube Mill

Application:

Natural Gas,Drain Pipe,3 NB Tube Production

Voltage:

380V/220V

Pipe Diameter:

16-76mm

Thickness:

1.2-4.0mm

Speed:

Max60m/min

Power(w):

600KW

Key Words:

Speed 60m/Min Square Tube Mill

Highlight:

High Light

Highlight:

Square Tube Mill 600KW

square pipe mill 600KW

60×80mm Pipe Making Machine

Trading Information

Minimum Order Quantity:

1SET

Price:

$100000 to $1 million

Packaging Details:

Export waterproof and Seaworthy packing.

Delivery Time:

60 work days

Payment Terms:

L/C,T/T,Western Union,MoneyGram

Supply Ability:

50 Sets/Year

Product Description

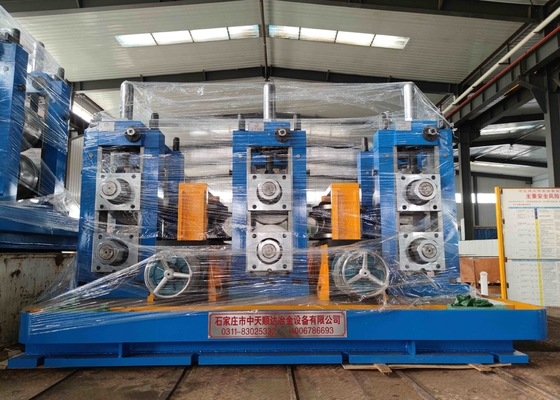

40×40--60×80mm Pipe 600KW 60m/Min Pipe Making Machine Square Tube Mill

Product Attributes

Attribute	Value
Production Name	40×40--60×80mm Pipe 600KW 60m/Min Pipe Making Machine Square Tube Mill
Application	Natural gas, Drain Pipe, 3 NB Tube Production
Voltage	380V/220V
Pipe diameter	16-76mm
Thickness	1.2-4.0mm
Speed	Max60m/min
Power(w)	600KW
Key words	Speed 60m/Min Square Tube Mill

Product Description

The 40×40--60×80mm Pipe 600KW 60m/Min Pipe Making Machine Square Tube Mill is used to manufacture welded steel pipe. After absorbing advanced pipe making technology from both abroad and domestic, our innovative designed production line and each single unit of the production line is not only economical but also practical.

Round pipe size: 45--102mm

Square pipe size: 40×40--60×80mm

Pipe thickness: 1.0-4.0mm

Production Process

Uncoiler
Shear & welding machine
Accumulator (Cage)

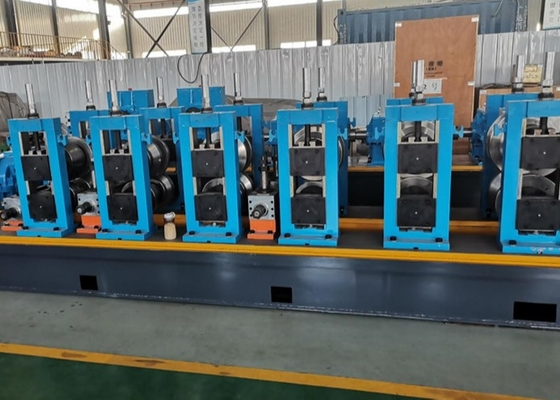

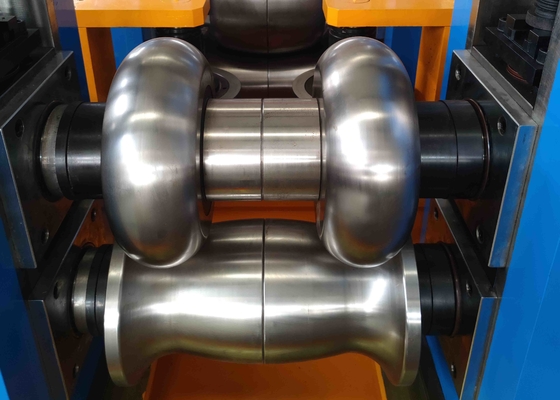

Forming machine
HF welding
Sizing machine
Flying saw (Cold saw)
Run out table
Hydro testing
End facing for API standard

We can equip online testing equipment, like Hydro testing equipment, End facing equipment, UT testing, ECT testing etc.

Main Parameters and Specifications

Material Specifications:

Standard	Conforming to the YB189-64 standard
Material	Low carbon steel and low alloy constructional steel
Mechanical properties	σb≤380Mpa, σs≤275MPa
Strip width	50～240mm
Strip thickness	1.2-4.0mm
I.D of Coils	Φ508mm
O.D of Coils	φ1800mm
Coil Weight	≤3.0T

Welded Pipe Specification:

Round Pipe Diameter	19.7-63.5mm
Pipe thickness	1.2-4.0mm
Finish pipe length	4-6m
Cut length accuracy	±2mm
Forming speed	100m/min

Our Service

We will send the engineer for the installation and training your workers how to operate this machine correctly
One year quality guarantee, life guarantee repair
We supply pre-sell and after-sell service including workshop design, production output design, installation and training
We can send engineers to work for you several months or 1 year to improve output, reduce waste and decrease costs
We supply pre-sell service - Design for whole project for stainless steel pipe making/carbon steel pipe making
We will be responsible for the loading and shipping
