Product Details:
Payment & Shipping Terms:
|
| Production Name: | Diameter 25mm - 76mm Max 100m/Min Speed Color Blue Tube Mill Machine | Pipe Diameter: | 25-76mm |
|---|---|---|---|
| Product Speed: | Max 100m/min | Material: | Carbon Steel,stainless Steel,low Alloy Steel |
| Cutting Saw: | Friction Saw Cutting | Pipe Thickness: | 4.0-10.0mm |
| Key Word: | Max 100m/Min Speed Welded Pipe Mill | After-sales Service Provided: | Commissioning And Training |
| Voltage: | 380V | Key Words: | Max 100m/Min Speed Precision Tube Mill |
| High Light: | 76mm Tube Mill Machine,25mm carbon steel tube mill,carbon steel tube mill Fast Speed |
||

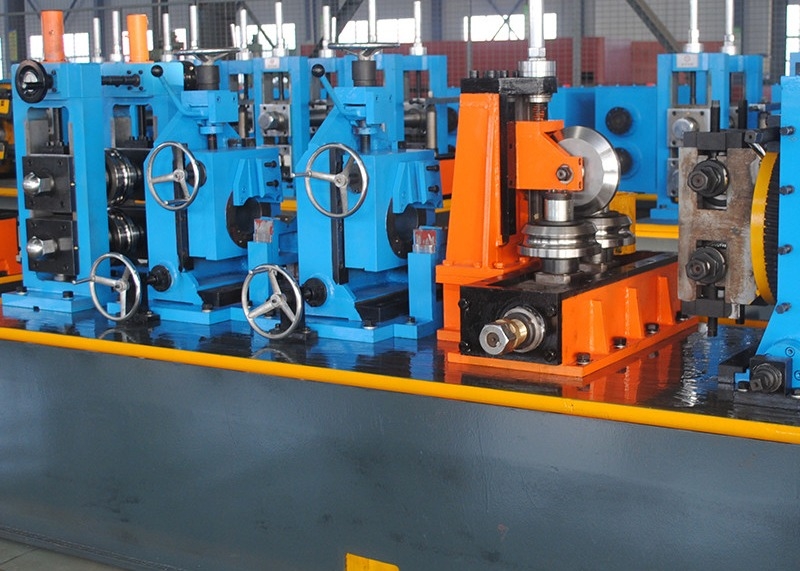

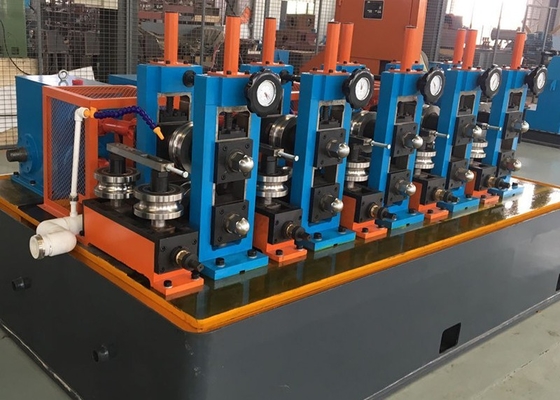

It is designed to produce welded steel pipes ,include round pipe , square pipe and deformed pipe.
Adopting roll pass design, the production line can manufacture welded steel pipes with good quality machining and high precision assembling.
material(steel coil)→uncoiler→shear and welder→horizontal(or cage) accumulator→forming mill→HF soild welder→sizing mill→rounghly straightening(turkey head)→cut off machine→run out table
| stands of forming mill | 7 |
| stands of sizing mill | 5 |
| shaft material | 40Cr |
| round pipe diameter | 19-76mm |
| Round pipe thickness | 1.5-3.0mm |
| square pipe size | 15×15-60×60mm |
| square pipe thickness |
1.5-2.0mm
|
| Model | Diameter Range | Pipe Thickness | Line Speed(m/min) |
| HG20 | 8-25.4MM | 0.3-1.2MM | 120 |
| HG32 | 10-32MM | 1.4-1.5MM | 120 |
| HG50 | 16-76MM | 0.7-2.5MM | 30-120 |
| HG76 | 25-76MM | 1-4MM | 30-100 |
| HG89 | 32-89MM | 1-4.5MM | 30-80 |
| HG114 | 45-114MM | 1.5-5.0MM | 30-60 |
| HG165 | 60-165MM | 3-7MM | 30-50 |
| HG219 | 114-219MM | 4-8MM | 20-40 |
| HG273 | 114-273MM | 4-10MM | 15-30 |
| HG325 | 165-325MM | 4-10MM | 10-30 |
| HG426 | 165-426MM | 4-12.7MM | 8-25 |
| HG508 | 219-508MM | 4-16MM | 8-20 |
we Shall be responsilbe for quality problem resulted from design and manufacture with one year after successfull installation and debugging and all the expenses for replacing parts and components( exclude human factors and vulerable components ) shall be born by us !
1) Factory will send 1-2technical engineers for installation and testing operation
2) The site, the equipment foundation, cool constructions etc. responsible by buyer according to equipment material which provides by supplier, the equipment for installation (lift equipment, tool etc.), the installation accessory material (wire, drive pipe, water pipe and so on), the labor force arranged by the buyer.
3) The buyer is responsible for power supply, water supply and gas supply to the equipment interface connector
4) Buyer Preparation Notes
