114.3mm Square Tube Mill with 60m/Min Forming Speed

Name: 114.3mm Square Tube Mill with 60m/Min Forming Speed
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: HG114
Price: 50,000.00 USD
Availability: InStock

Product Details:

Place of Origin:	China
Brand Name:	TENG TIAN
Certification:	ISO9001/BV
Model Number:	HG114

Detail Information

Place of Origin:

China

Brand Name:

TENG TIAN

Certification:

ISO9001/BV

Model Number:

HG114

Product Name:

114.3mm Square Tube Mill Max Forming Speed 60m/Min

After-sales Service Provided:

On-Site Engineers

Pipe Material:

Carbon Steel

Voltage:

380V

Power(w):

1500KW

Speed:

20 - 60m / Min

Pipe Shape:

Round, Square & Rectangular

Round Pipe Diameter:

33.4mm-114.3mm

Warranty:

1 Year

Keywords:

Pipe Diameter 114.3mm Square Tube Mill

Highlight:

High Light

Highlight:

114.3mm Square Pipe making machine

Square Pipe making machine 60m/Min

114.3mm square tube making machine

Trading Information

Minimum Order Quantity:

1set

Price:

$100000 to $1 million

Packaging Details:

Seaworthy packing

Delivery Time:

3 months

Supply Ability:

150 units a year

Product Description

114.3mm Square Tube Mill Max Forming Speed 60m/Min

Product Specifications

Attribute	Value
Product name	114.3mm Square Tube Mill Max Forming Speed 60m/Min
After-sales service provided	On-Site Engineers
Pipe material	Carbon Steel
Voltage	380V
Power	1500KW
Speed	20 - 60m / min
Pipe Shape	Round, Square & Rectangular
Round Pipe Diameter	33.4mm-114.3mm
Warranty	1 year

Product Description

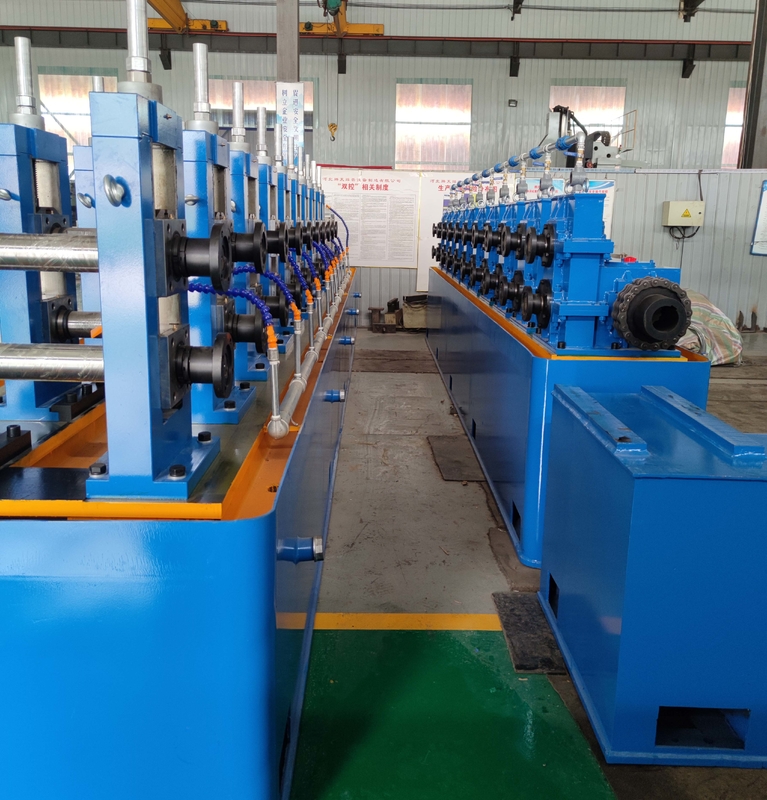

The 114.3mm Square Tube Mill with Max Forming Speed of 60m/Min is engineered to produce high-quality welded pipes ranging from 50-101.6mm in diameter with wall thicknesses of 1.0-4.0mm. This versatile production line also manufactures square, rectangular, and deformed pipes of corresponding sizes. Featuring advanced roll pass design, this system delivers superior machining quality and high-precision assembly.

Available Models

Serial No.	Model	Thickness (mm)	Specification (mm)	Speed (m/min)	Main Engine (kw)	Power (kw)	Area
1	H20	0.3-1	8-20	30-120	55	60	7*50
2	H32	0.3-2.0	12-32	30-120	75	100	7*50
3	H50	0.8-2.5	16-50	30-110	110	150	7*60
4	H60	0.8-3	20-60	30-100	132	200	7*65
5	H76	1-3	12-76	30-100	320	250	8*80
6	H89	1-4	32-89	30-80	350	300	8*80
7	HG114	1.5-5	45-114	30-60	400	300	10*100
8	HG165	3-7	60-165	30-50	600	400	10*110
9	HG219	4-8	114-219	20-40	800	500	12*150
10	HG273	4-10	114-273	15-30	1000	600	18*160
11	HG325	4-12	165-325	10-30	1200	600	18*180
12	HG426	4-16	165-426	8-25	1400	800	18*180
13	HG508	4-20	219-508	8-20	2000	1000	21*180

Production Process

Loading car → Uncoil → Cutting and Welding → Accumulator → Forming, HF welding, anneal welder, Deburring, Cooling, Sizing, Straightening → STD Cold-cutting saw → Transmitting → hydrostatic testing → End facer → Straightener → Packing → Storage

Our Comprehensive Service

1) On-site installation and operator training by our engineers

2) Warranty coverage: One year quality guarantee with lifetime repair support. Free repair parts during warranty period (excluding human error). After warranty, only parts cost applies.

3) Complete pre-sales and after-sales support including workshop design, production output planning, installation, and training.

4) Optional extended engineer support (several months to 1 year) to optimize output, reduce waste, and lower operational costs.

5) Comprehensive project design services for stainless steel and carbon steel pipe production lines.

6) Full responsibility for loading and shipping arrangements.
