Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
Quality first, Customer first
Sales & Support:
|
Product Details:
Payment & Shipping Terms:
|
| Pipe Length: | 6m-18m | Welding Method: | High Frequency Induction Welding |
|---|---|---|---|
| Control System: | PLC | Pipe Thickness: | 0.5mm-50mm |
| Voltage: | 380V/50Hz/3Phase | Drive Mode: | AC Frequency Conversion |
| Product Name: | Welded Pipe Mill | Material: | Carbon Steel, Alloy Steel, Stainless Steel |
| Weight: | 5-15T | Product Name: | Spiral Welded Steel Pipe Production Line,Automatic HF Welded Pipe Mill |
| Speed: | 0-50m/min | Usage: | Construction Pipe |
| High Light: | 25m/min welded pipe mill,100kw welded pipe mill,high frequency induction welded tube mill |
||

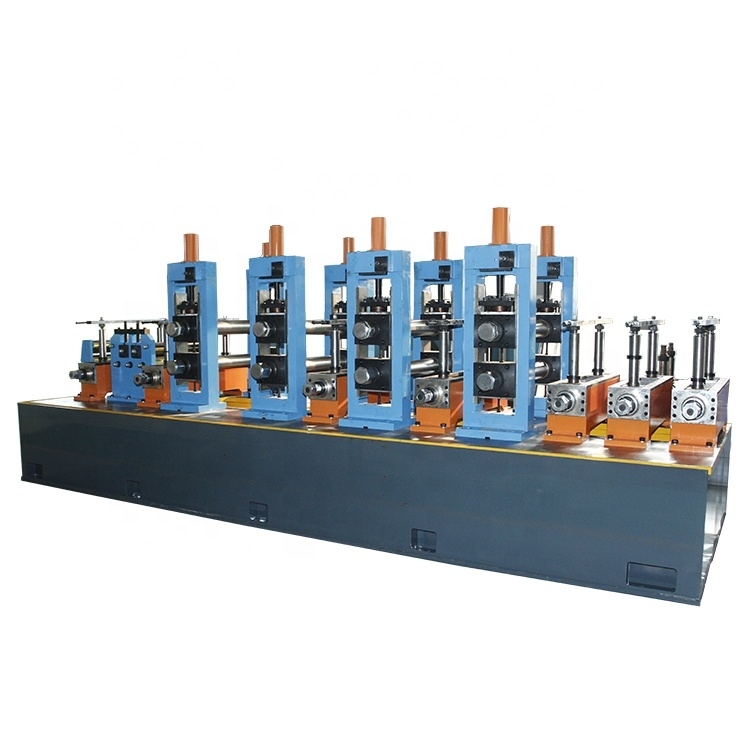

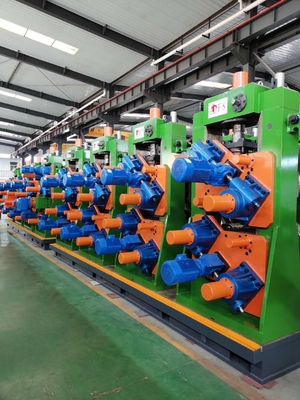

Welded Pipe Mill is a kind of advanced Welded Pipe Forming System, which is specially designed for manufacturing welded pipes. It is a perfect combination of mechanical, electrical and hydraulic technologies. The welding pipe making machine is composed of uncoiler, leveler, forming machine, welding machine, sizing machine, cooling bed, straightener, and run-out table. It is mainly used for producing carbon steel, alloy steel, and stainless steel pipes with an outside diameter of 10-610mm and a wall thickness of 0.5-20mm.
The Welded Pipe Mill is equipped with PLC control system, and the high frequency power range is from 100KW to 1000KW. The pipe length can be customized from 6m to 18m, and the cooling system adopts water cooling for efficient heat dissipation. This welding pipe producing machine has superior performance in terms of high productivity, low energy consumption, and stable quality.
| Parameter | Value |
|---|---|
| Product Name | Welded Pipe Mill |
| Welding Speed | 0-25 m/min |
| Forming Method | Roll Forming |
| Voltage | 380V/50Hz/3Phase |
| Control System | PLC |
| Drive Mode | AC Frequency Conversion |
| Material | Carbon Steel, Alloy Steel, Stainless Steel |
| Welding Method | High Frequency Induction Welding |
| Cooling System | Water Cooling |
| High Frequency Power | 100KW-1000KW |
| Welded Pipe Production Line | Yes |
| Welded Pipe Forming System | Yes |
| Welded Pipe Forming Equipment | Yes |
Welded Pipe Mill is a reliable and high-quality welded pipe manufacturing system from Hebeitengtian. It is well-suited for the production of welded pipes of different diameters ranging from 6mm to 720mm. This welded pipe forming system is certified by CE, ISO9000 and BV, ensuring its high performance and reliability. The minimum order quantity is 1 and the delivery time is around 1 month. The packaging details are available upon request. The payment terms are negotiable and the supply ability is 5 sets per year. The welding method used in this Welded Pipe Mill is High Frequency Induction Welding and the high frequency power is adjustable between 100KW and 1000KW. The forming speed is adjustable between 0 and 20m/min.
Hebeitengtian provides customized services for our welded pipe mill. Our welded pipe fabrication machine, welded pipe forming system, and welded pipe manufacturing equipment are certified by CE, ISO9000, and BV.
Minimum order quantity is 1, and delivery time is 1 month. Payment terms are negotiable. We can provide 5 sets of welded pipe mill per year.
The cooling system is water cooling. The material we used includes carbon steel, alloy steel, and stainless steel. The forming speed is 0-20m/min. The forming method is roll forming. The control system is PLC.
If you are looking for custom made welded pipe mill services, please contact us.
Welded Pipe Mill Technical Support and Service
We provide technical support and service for our Welded Pipe Mill products. Our team of experienced professionals is available to answer any questions you may have about our products and help you find the solutions you need.
We offer:
Our team is committed to providing the highest quality of service and support to ensure that your Welded Pipe Mill is operating at peak performance and reliability.
Packaging and Shipping for Welded Pipe Mill:
The welded pipe mill is usually shipped in wooden crates, steel frames, or other suitable materials. All the necessary padding, protection and support is provided to ensure the safe arrival of the mill. The shipping paperwork is usually available on the day of delivery and must be checked and signed by the customer.
A1: The Brand Name of the Welded Pipe Mill is Hebeitengtian.
A2: The Welded Pipe Mill has CE, ISO9000, BV certifications.
A3: The minimum order quantity for the Welded Pipe Mill is 1.
A4: The Welded Pipe Mill is packaged according to customer requirements.
A5: The delivery time for the Welded Pipe Mill is 1 month.
