ERW Tube Mill Machine for 50x50mm Pipe High Frequency Welding

Product Details:

Place of Origin:	China
Brand Name:	Teng Tian
Certification:	CE,BV,ISO

Detail Information

Place of Origin:

China

Brand Name:

Teng Tian

Certification:

CE,BV,ISO

Product:

ERW Tube Mill Machine 50x50mm Pipe

Production Name:

Tube Mill Machine

Material:

Alloy Steel

Spec:

12-76mm

Thickness:

1-3mm

Type Of Welding:

High Frequency Welding

Forming Method:

FFX Forming Technology

Application:

EN Standard Pipe, ASTM Steel Pipe

Pipe Shape:

Round

Pipe Shape:

Round

After-Sales Service:

Engineers Available To Service Machinery Overseas

Speed:

100m/min

Forming Speed:

80m/min

Forming Speed:

80m/min

Line Speed:

Max.100m/min

Highlight:

High Light

Highlight:

50x50mm Tube Mill Machine

Robust ERW Tube Mill Machine

Robust Pipe Mill Machine

Trading Information

Minimum Order Quantity:

1 SET

Price:

$100000 to $1 million

Packaging Details:

nude packing of Tube Mill Machine, motor covered with wooded case

Delivery Time:

90 days

Payment Terms:

TT,LC

Product Description

Robust ERW Tube Mill Machine For 50x50mm Pipe

Product Specifications

Attribute	Value
Production Name	Tube Mill Machine
Material	Alloy steel
Specification	12-76mm
Thickness	1-3mm
Type Of Welding	High frequency welding
Forming Method	FFX Forming Technology
Application	EN Standard pipe, ASTM steel pipe
Pipe Shape	Round
Speed	100m/min
Forming Speed	80m/min
Line Speed	Max. 100m/min
After-Sales Service	Engineers available to service machinery overseas

Product Description

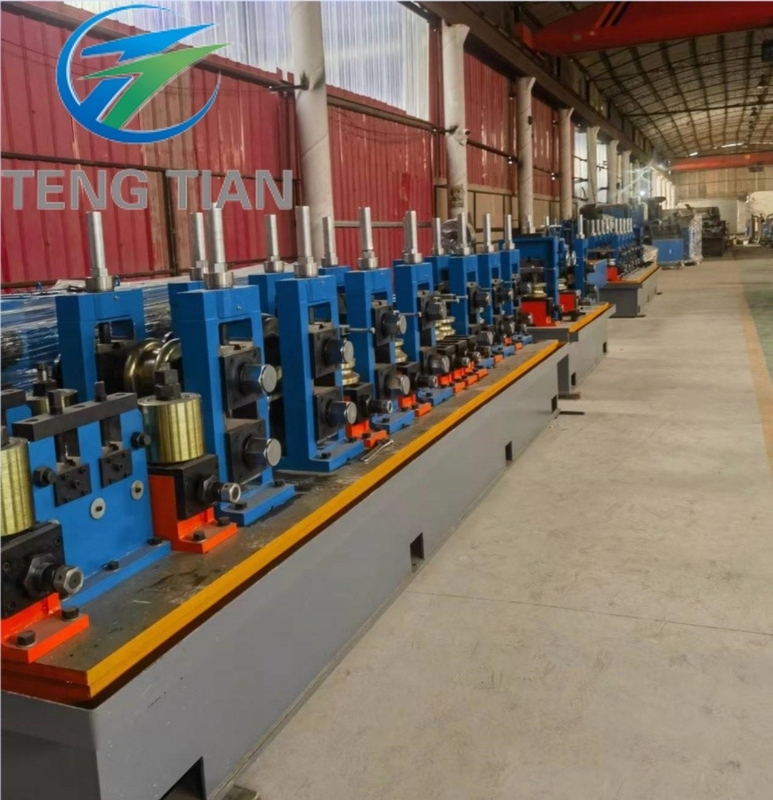

The ERW Tube Mill Machine for 50x50mm pipe is designed for manufacturing high-quality welded pipes with precision. Utilizing advanced roll pass design and FFX forming technology, this machine produces pipes with excellent dimensional accuracy and surface finish.

Material Specifications

Standard	Steel Material	Properties	Strip Width	Thickness	ID	OD	Weight
YB189-64	Q235/Q345	σb≤380Mpa,σs≤275MPa	47-180MM	0.8-3.0MM	Φ508mm	φ2000mm	3TON

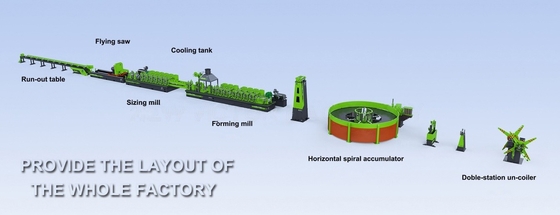

Production Process

Loading car
Uncoil
Cutting and Welding
Accumulator
Forming, HF welding, anneal welder, Deburring, Cooling, Sizing, Straightening
STD Cold-cutting saw
Transmitting
Hydrostatic testing
End facer
Straightener
Packing
Storage

About Our Company

Hebei Tengtian Welded Pipe Equipment Manufacturing Co., Ltd. is a professional manufacturer specializing in pipe mill and cold roll forming machines. We integrate scientific research, production, sales, and service, with our equipment exported to numerous countries including Egypt, Greece, South Korea, Vietnam, Indonesia, and South Africa.

Our Product Lines

Serial No.	Model	Thickness(mm)	Specification(mm)	Speed(m/min)	Main Engine(kw)	Power(kw)	Area
1	H20	0.3-1	8-20	30-120	55	60	7*50
2	H32	0.3-2.0	12-32	30-120	75	100	7*50
3	H50	0.8-2.5	16-50	30-110	110	150	7*60
4	H60	0.8-3	20-60	30-100	132	200	7*65
5	H76	1-3	12-76	30-100	320	250	8*80
6	H89	1-4	32-89	30-80	350	300	8*80
7	HG114	1.5-5	45-114	30-60	400	300	10*100
8	HG165	3-7	60-165	30-50	600	400	10*110
9	HG219	4-8	114-219	20-40	800	500	12*150
10	HG273	4-10	114-273	15-30	1000	600	18*160
