Automatic Tube Mill Welded Pipe Machine 16-60mm 80m/min

Name: Automatic Tube Mill Welded Pipe Machine 16-60mm 80m/min
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: HG60
Price: 50,000.00 USD
Availability: InStock

Product Details:

Place of Origin:	China
Brand Name:	Teng Tian
Certification:	CE,BV, ISO9001
Model Number:	HG60

Detail Information

Place of Origin:

China

Brand Name:

Teng Tian

Certification:

CE,BV, ISO9001

Model Number:

HG60

Product:

Hot Sale Automatic Tube Mill Welded Pipe Making Machine

Key Word:

Automatic Tube Mill

Materials:

Carbon Steel

Type:

Custom

Size Range:

16-60mm

Speed:

80m/min

Cutting Method:

Hydraulic Cutter

Operation Mode:

Automatic

Pipe Material:

Low Carbon Steel

Tube Size:

110-273MM

Warranty:

1 Year

Spec.:

Custom

Highlight:

High Light

Highlight:

Welded Pipe Automatic Tube Mill

Consistent Automatic Tube Mill

Accurate Automatic Tube Mill

Trading Information

Minimum Order Quantity:

1 Set

Price:

$100000 to $1 million

Packaging Details:

nude packing of Tube Mill Machine, motor covered with wooded case

Delivery Time:

90 days

Payment Terms:

TT,LC

Product Description

Consistent Automatic Tube Mill Welded Pipe Making Machine Square Pipe Accurate

Product Attributes

Attribute	Value
Product	Hot Sale Automatic Tube Mill Welded Pipe Making Machine
Key Word	Automatic Tube Mill
Materials	Carbon Steel
Type	Custom
Size Range	16-60mm
Speed	80m/min
Cutting Method	Hydraulic Cutter
Operation Mode	Automatic
Pipe Material	Low Carbon Steel
Tube Size	110-273MM
Warranty	1 Year
Spec.	Custom

Hot Sale Automatic Tube Mill Welded Pipe Making Machine

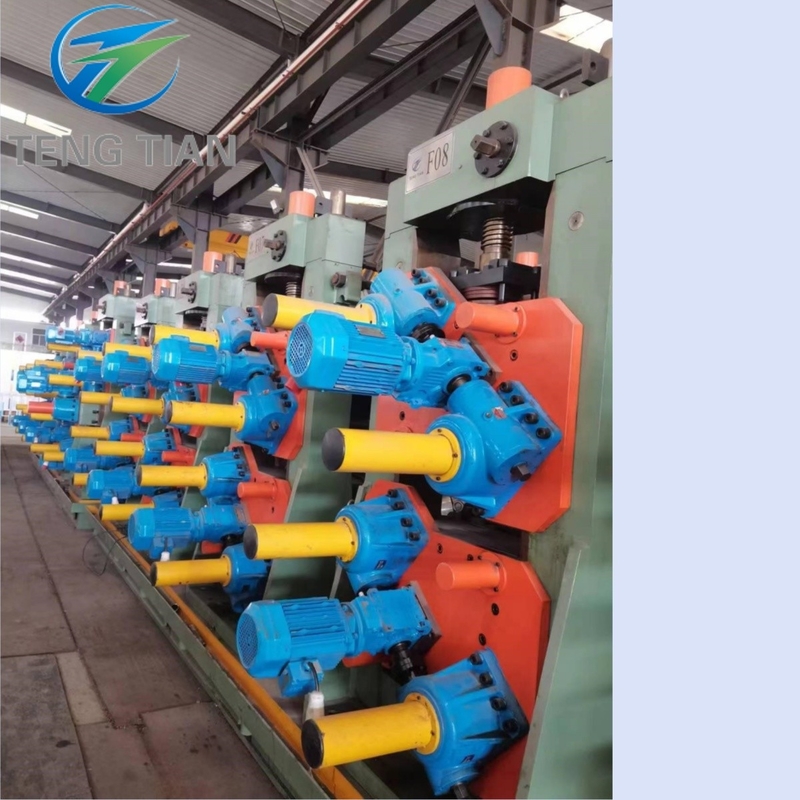

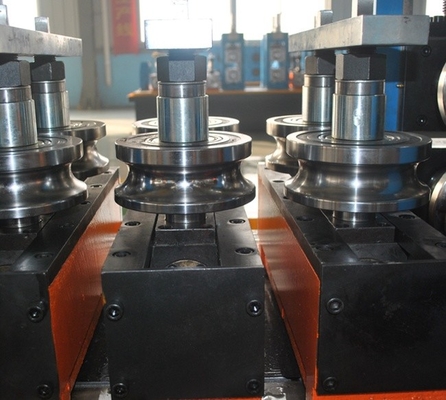

Automatic Tube Mill Welded Pipe Making Machine is our TengTian unit with advanced technical characteristics. The unit uses the world's most advanced FFX/FF forming system, with German COPRA roll forming design software for guide roll design and verification. This system provides stable forming, excellent steel surface quality, and easy specification changes.

Product Specification

Pipe diameter: Ø10mm - Ø508mm, Wall thickness: 0.7mm - 16mm

Key Attributes

Model	Spec.	Thickness	Forming Speed	Main Section Capacity	Solid Welder	Area
HG60	Ø16-Ø60	0.7-2.5(mm)	30-120(m/min)	400 kw	150 kw	12x60(m³)

Series Specifications

No.	Model	Thickness(mm)	Specification(mm)	Speed(m/min)	Main Engine(kw)	Power(kw)	Area
1	H20	0.3-1	8-20	30-120	55	60	7*50
2	H32	0.3-2.0	12-32	30-120	75	100	7*50
3	H50	0.8-2.5	16-50	30-110	110	150	7*60
4	H60	0.8-3	20-60	30-100	132	200	7*65
5	H76	1-3	12-76	30-100	320	250	8*80
6	H89	1-4	32-89	30-80	350	300	8*80
7	HG114	1.5-5	45-114	30-60	400	300	10*100
8	HG165	3-7	60-165	30-50	600	400	10*110
9	HG219	4-8	114-219	20-40	800	500	12*150
10	HG273	4-10	114-273	15-30	1000	600	18*160

Quality and Service Warranty

After the machine arrives, our technical service personnel will provide on-site guidance for operation, debugging, and maintenance, including technical training for your equipment operators and maintenance staff. The entire production line comes with a one-year warranty.

Working Process

Strip steel to coil → Uncoiler → Shear welder → Storage material unit → Forming, welding, cooling, accurate pipe diameter sizing → Accurate pipe length sizing, cutting → Inspection → Packaging
