Product Details:
Payment & Shipping Terms:
|
| Product Name: | Stainless Steel Pipe Making Machines Furniture Steel Pipe Production Line | Keyword: | Steel Pipe Making Machine |
|---|---|---|---|
| Material: | Low Carbon Steel | Diameter: | 14-50 Mm |
| Thickness: | 1.6-2.5 Mm | Speed: | 30-130 M/min |
| Cut: | 1-4 Mm | Power: | 630kw |
| High Light: | furniture steel pipe making machines,furniture steel pipe production line,pipe making machines for furniture steel |
||

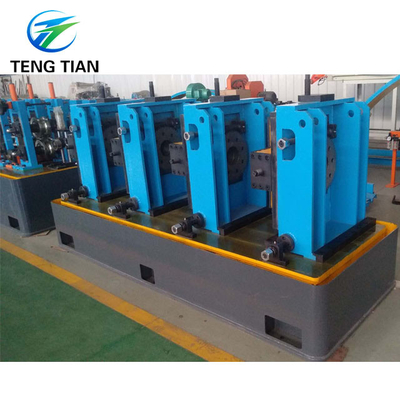

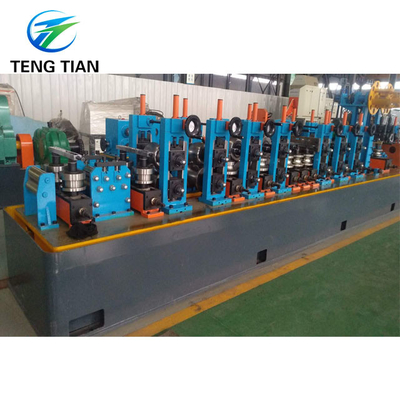

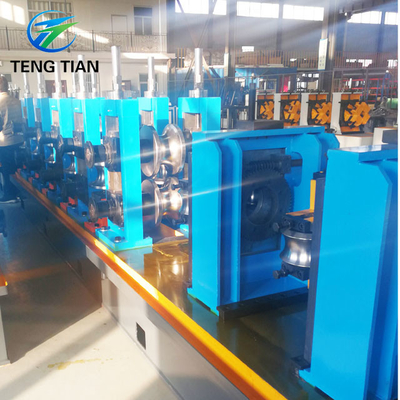

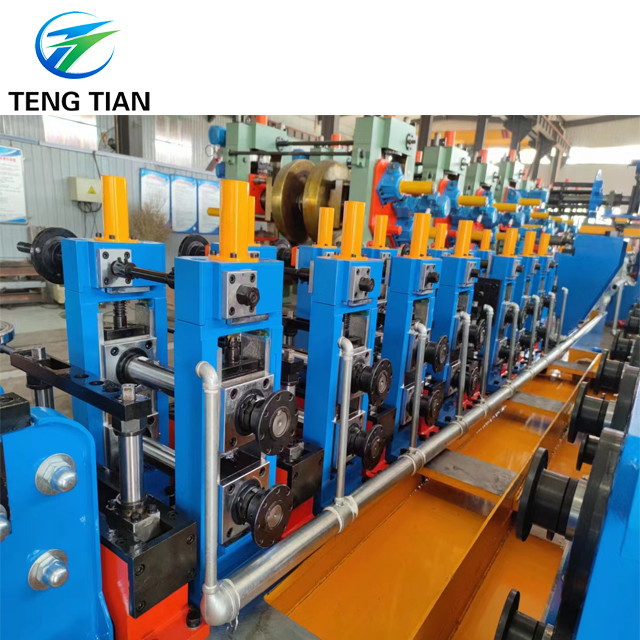

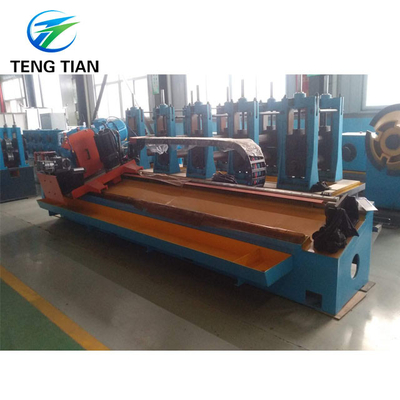

Stainless Steel Pipe Making Machines Furniture Steel Pipe Production Line
Φ50high-frcquency welded pipe production line is designed to produce welded pipes of 16～50mm in diameter and 0.6～3.25mm in wall thickness as well as square and rectangular pipes and formed sections of the corresponding size. The products conform to BS/ASTM Standard. Adopting the advantages of the equipment of the same kind at home and abroad, each element of the production line is designed with new ideas. The application of Germany pass technology, PLC automatic control system and British Euro herm digital speed regulating unit guarantee that the production line works reliably and operates and main tams easily. Being the best inside the stare, the production line can also rival the advanced ones in the world.
The production line sells well in the state and has exported to some countries in South-east Asia. It is deeply received by customers.
| Uncoiler | |
| Type | Double cone |
| Steel coil | ≤ 2 Ton |
| ID | 480mm-600mm |
| OD | 1800mm |
| Width | 150mm |
| Accumulator | |
| Material | Welded Angle steel |
| Feeding Speed | ≥300m/min |
| Capacity | ≥380mm |
| Motor | 2.2kw |
| Forming machine | |
| Main motor power | 2x55 kw |
| H.F.Power, kW | 200KW |
| Forming stand | 6 horizontal, 6 vertical |
| Sizing stand | 6 horizontal, 6 vertical |
