HG219 High Frequency Welded Pipe Mill 114-219mm 4-8mm Thickness

Name: HG219 High Frequency Welded Pipe Mill 114-219mm 4-8mm Thickness
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: HG219
Price: 50,000.00 USD
Availability: InStock

Product Details:

Place of Origin:	Shijiazhuang China
Brand Name:	Tengtian
Certification:	CE,ISO9001, BV
Model Number:	HG219

Detail Information

Place of Origin:

Shijiazhuang China

Brand Name:

Tengtian

Certification:

CE,ISO9001, BV

Model Number:

HG219

Hf Welder Power:

400 KW

Dimension:

25m*2m*1.5m

Model:

HG 219

Control System:

PLC

Speed:

0-60m/min

Wall Thickness Range:

4mm-8mm

Material:

Carbon Steel, Stainless Steel, Galvanized Steel

Round Pipe:

φ114—φ219mm

Hf Welder:

500KW, Solid State

Key Word:

High Frequency Welded Pipe Mill

Coil Inner Diameter:

Φ508mm

Round Pipe Diameter:

114mm-219mm

Cutting Length Precision:

±3mm

Production Speed:

Max 60 M/min

Product Name:

High Frequency Welded Pipe Mill For 114-219mm Pipes Manufacturing Equipment

Drive Motor:

DC 75KW X 2

Description:

Steel Pipe Making Machine

Thickness:

1.5-8.0mm

Production Name:

High Frequency Welded Pipe Mill

Pipe Length:

4-12m

Forming Speed:

20～60m/min

Pipe Thickness Range:

1.5-8.0mm

Forming Method:

Roll Forming

Length:

6-12m

Highlight:

High Light

Highlight:

20mm High Frequency Welded Pipe Mill

76mm High Frequency Welded Pipe Mill

Pipes Manufacturing tube mill machine manufacturer

Trading Information

Minimum Order Quantity:

1 Set

Price:

$100000 to $1 million

Packaging Details:

Standard Export Packing

Delivery Time:

100 days

Payment Terms:

L/C,T/T

Supply Ability:

20 Sets/Yearly

Product Description

High Frequency Welded Pipe Mill For 114-219mm Pipes Manufacturing Equipment

Key Specifications

Attribute	Value
HF Welder Power	400 KW
Dimension	25m × 2m × 1.5m
Model	HG 219
Control System	PLC
Speed	0-60m/min
Wall Thickness Range	4mm-8mm
Material Compatibility	Carbon Steel, Stainless Steel, Galvanized Steel
Round Pipe Diameter	φ114—φ219mm

Product Description

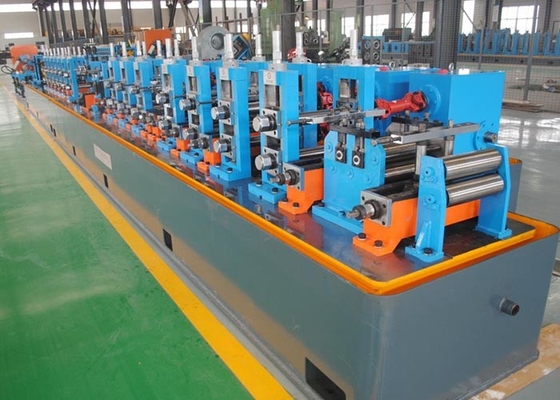

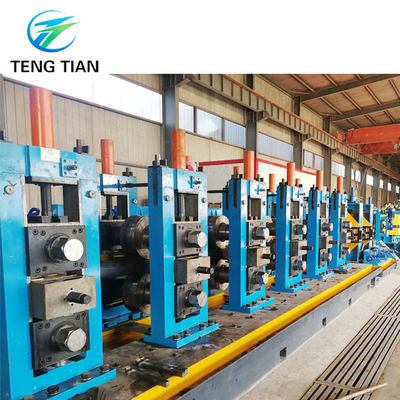

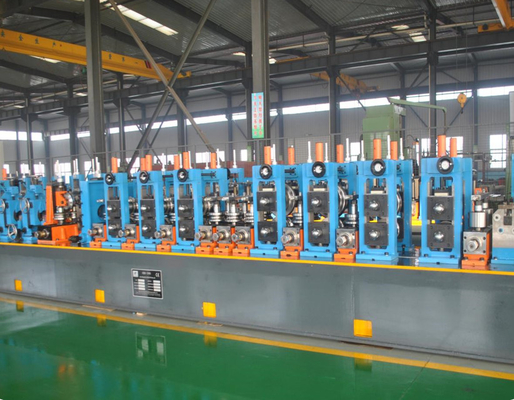

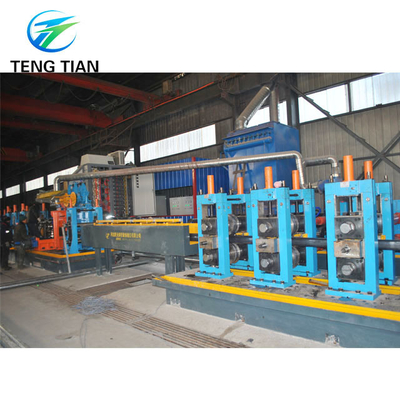

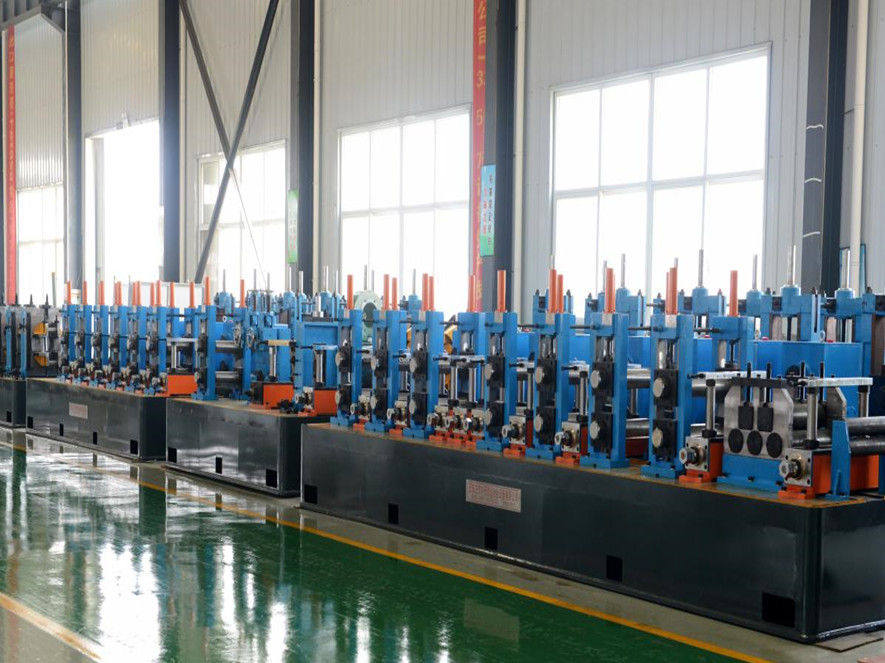

The HG219 High-Frequency Welded Pipe Production Line is designed to produce welded round pipes of Ф114～219mm in diameter with wall thickness of 4.0～8.0mm, as well as square pipes (90×90--170×170mm) with thickness from 4.0-7.0mm. Featuring advanced roll pass design, this production line delivers welded steel pipes with excellent machining quality and high assembly precision.

Technical Parameters

Power Requirement	Approx. 800KW
Power Source	380V/50Hz/3phases
Circulation Cooling Water Flow	30T/h～40 T/h
Compressed Air Flow	5m³/min at 5～7kg/cm²

Model Specifications

Model	Diameter Range	Pipe Thickness	Molding Speed	Motor Power
HG219	114-219mm	4-8mm	20-40m/min	800KW

Our Services

On-site installation and operator training by our engineers
One year quality guarantee with lifetime repair support
Comprehensive pre-sale and after-sale services including workshop design and production output planning
Option for extended engineer support to optimize production output and reduce waste
Complete project design services for stainless steel and carbon steel pipe production
Full responsibility for loading and shipping

Company Profile

With strong technical capabilities and a vibrant team, our company has established significant domestic market share and exports to numerous countries including Korea, Vietnam, Indonesia, and South Africa. Our machines incorporate advanced Japanese technology and are manufactured to strict quality standards.

Certifications

Global Reach

Our equipment has been successfully exported to Egypt, Greece, South Korea, Vietnam, Indonesia, South Africa, and other countries, earning consistent praise from international customers.
