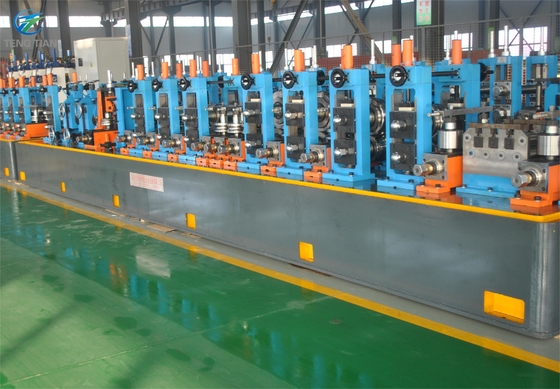

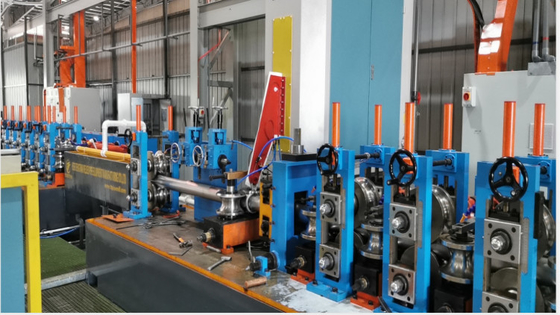

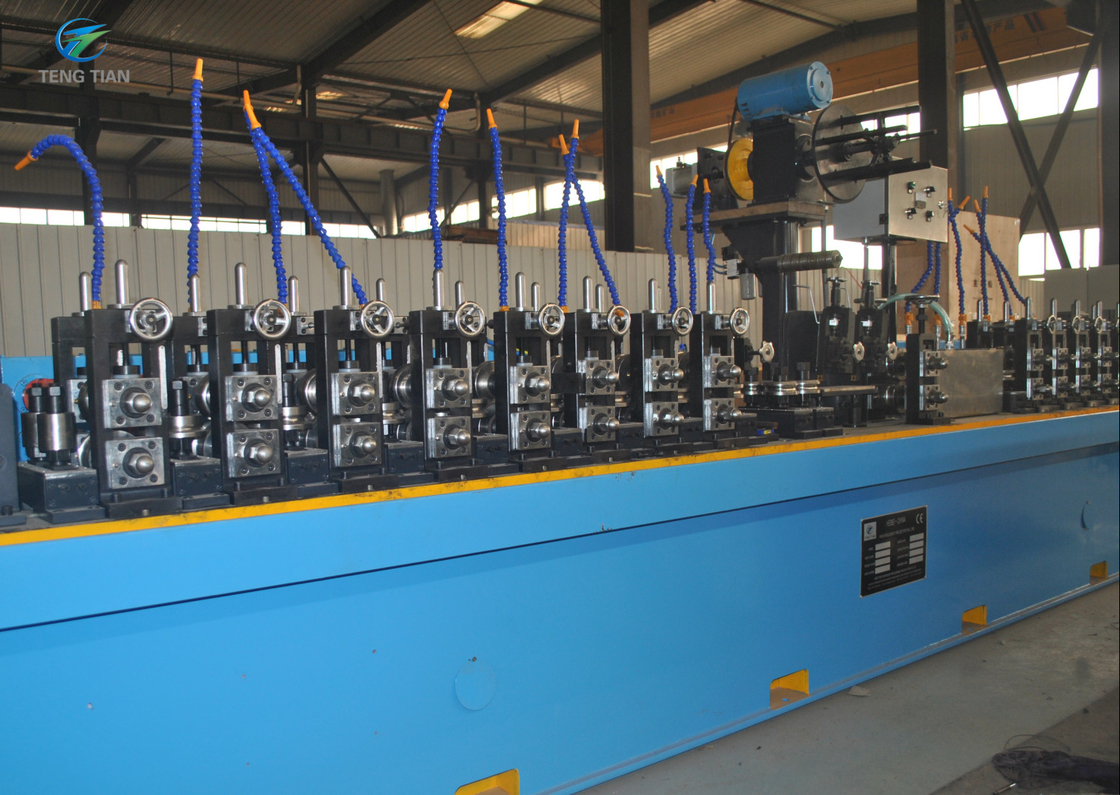

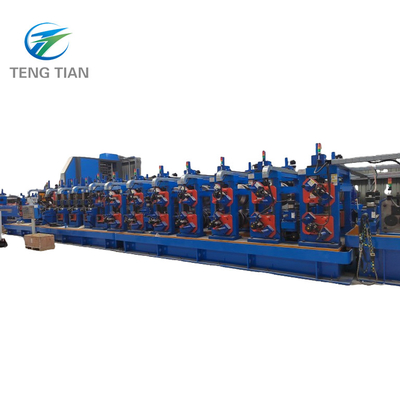

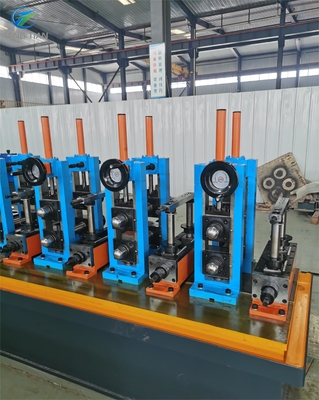

High Precision Tube Mill for Carbon and Stainless Steel Pipe Manufacturing

Large Image : High Precision Tube Mill for Carbon and Stainless Steel Pipe Manufacturing

Product Details:

Place of Origin:	Shijiazhuang China
Brand Name:	Tengtian
Certification:	CE,ISO9001, BV
Model Number:	HG219

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	$100000 to $1 million
Packaging Details:	Standard Export Packing
Delivery Time:	90 days
Payment Terms:	L/C, T/T
Supply Ability:	20 Sets/Yearly

Contact Now

Detailed Product Description

Product Name:	Precision Tube Mill For Easy Specification Changes And Perfect Process	Rollers:	Include
Specification:	φ76mm-φ219mm	Demision:	6m
Max Size:	76 - 219 Mm	Product:	Square Pipe,round
Main Engine:	500KW	Pipe Diameter:	76-219mm
Inspection:	100% Eddy Current Test	Pipe Shape:	Round,square,rectangular
Production:	Round Pipe And Square Pipe	Model:	HG219

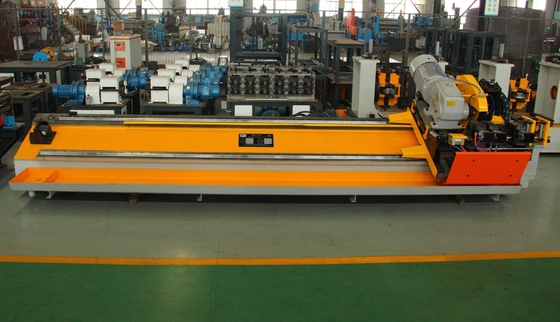

Cutting:	Cold Saw; Without Burr	Usage:	Construction
Warranty:	1 Year	Package:	Wooden Cases Or Wooden Pallets
Type Of Welding:	High Frequency Welding	Main Motor Power:	250KW
Material:	Carbon Steel	Thickness:	4-10mmm
Forming Method:	FFX Forming Technology	Key Word:	Precision Tube Mill
Highlight:	Easy Specification Changes Precision Tube Mill , Perfect Process Precision Tube Mill , Precision stainless steel tube mill machine

Details

High Precision Tube Mill for Carbon and Stainless Steel Pipe Manufacturing 0

Model Number	HG20
Place of Origin	Hebei, China (Mainland)
Molding speed	30-120m/min
Pipe diameter	8-20mm
Pipe Thickness	0.3-1mm
Voltage	380V/220V
Power	55KW
Certification	ISO9001,CE,BV
Pipe shape	Rectangle,round,square
Material of Pipe	Carbon Steel , Stainless Steel and Galvanized Steel

Production flow chart:

Brief introduction of ERW high precision tube rolling mill

HG series high precision straight seam welded pipe production line is used to produce welded steel pipe from 7mm-508mm in diameter and 0.4 mm-20mm in wall thickness. It can also produce special-shaped tubes, such as square tubes, rectangular tubes, elliptical tubes, etc. within the scope of processing circular tubes. ERW pipe production line is a product with advanced technical characteristics. This unit adopts the most advanced FFX and FF forming system in the world, and chooses German COPRA rolling forming design software as the means and final verification of the design guide roll. The unit has formed the advantages of stable, high quality steel surface, easy to change specifications, advanced technology, reliable equipment and perfect production process.

High Precision Tube Mill for Carbon and Stainless Steel Pipe Manufacturing 5

ERW Tube Mill Other Model

Model	Diameter Range	Pipe Thickness	Molding speed(m/min)	Motor Power(KW)	Mechanical area (m³)
HG20	8-20MM	0.3-1MM	30-120	55	7×50
HG32	12-32MM	0.3-2.0MM	30-120	75	7×50
HG50	16-50MM	0.8-2.5MM	30-110	110	7×60
HG60	20-60MM	0.8-3MM	30-100	132	7×65
HG76	12-76MM	1-3MM	30-100	320	8×80
HG89	32-89MM	1-4MM	30-80	350	8×80
HG114	45-114MM	1.5-5.0MM	30-60	400	10×100
HG165	60-165MM	3-7MM	30-50	600	10×110
HG219	114-219MM	4-8MM	20-40	800	12×150
HG273	114-273MM	4-10MM	15-30	1000	18×160
HG325	165-325MM	4-12MM	10-30	1200	18×180
HG426	165-426MM	4-16MM	8-25	1400	18×180
HG508	219-508MM	4-20MM	8-20	2000	21×180

About us

New Full Automation

The company has a strong technical ability, strong business ability, vibrant team. Through the unremitting efforts of all staff, in recent years the company has occupied most of the domestic market, and exported to Korea, Vietnam, Indonesia, South Africa, Kazakhstan and other dozens of countries and regions, from domestic and foreign customers.

Qualification

Our Services

1.) We will send the engineer for the installation and training your workers how to operate this machine in correct way.
2.) Warranty Team
One year quality guarantee, life guarantee repair. Within quality guarantee period, except for failures caused by human error, repair parts will be provided for free. After the quality guarantee period, only charge the cost of the spare parts.
3.) We supply the pre-sell and after-sell service.
pre-sell service: workshop design, and production output design
after-sell service: installation and training, and the skilled engineer for working.
4.) We can also sent the engineer working for you serval months or 1 year. The engineer will help you to improve the output, reduce the waste and decrease the cost.
5.) We supply the pre-sell service-Design for whole project for stainless steel pipe making/ carbon steel pipe making.
6.) We will be responsible for the loading and shipping .

Our customers

Our company specializes in the production of pipe mill, slitting line,cold roll forming,stainless steel pipe mill and other equipment,On the basis of the introduction of the advanced technology of Japan, the company is innovative and the machine are manufactured in strict accordance with the standard of Japan.Advanced configuration,stable quality,excellent performance,with excellent market visibility and reputation,our machine has reached the world's leading level.

Exhibition

Packing and shipping

Our equipment has been exported to dozens of countries and regions such as Egypt, Greece,South Korea,Vietnam,Indonesia,South Africa,etc.,and received favorable comments from domestic and foreign customers.
