Big Diameter Spiral Welding Pipe Mill SAW 1220mm Max

Product Details:

Place of Origin:	China
Brand Name:	TengTian
Certification:	BV,CE,ISO

Detail Information

Place of Origin:

China

Brand Name:

TengTian

Certification:

BV,CE,ISO

Product Name:

Big Diameter Spiral Welding Pipe Mill USA Lincoln Welder Milling Saw For Oil Transportation

Welding Type:

SAW

Running Speed:

3.5mm

Steel Strip Width:

190-1220 Mm

Production Speed:

1-5 M/min

Max Size:

1220 Mm

Cooling Method:

Water Cooling

Accumulator Material:

Carbon Steel

Pipe Thickness:

4-16mm

Keywords:

Big Diameter Welding Pipe Mill

Highlight:

High Light

Highlight:

Big Diameter Spiral Welding Pipe Mill

Oil Transportation Spiral Welding Pipe Mill

Big Diameter steel tube making machine

Trading Information

Minimum Order Quantity:

1 set

Price:

$100000 to $1 million

Packaging Details:

plastic film winding, wooded case for electric components

Delivery Time:

90 days

Supply Ability:

21 sets per year

Product Description

Big Diameter Spiral Welding Pipe Mill with USA Lincoln Welder

Product Specifications

Attribute	Value
Product Name	Big Diameter Spiral Welding Pipe Mill USA Lincoln Welder Milling Saw For Oil Transportation
Welding Type	SAW
Running Speed	3.5mm
Steel Strip Width	190-1220 mm
Production Speed	1-5 m/min
Max Size	1220 mm
Cooling Method	Water Cooling
Accumulator Material	Carbon Steel
Pipe Thickness	4-16mm

Detailed Technical Parameters

Coil Materials

OD	ø190 - ø1250 mm
ID	ø600 - ø760 mm
Grade	Q235B
Wall thickness	4-16 mm
Width	500-1500 mm
Weight	≤20 Tons

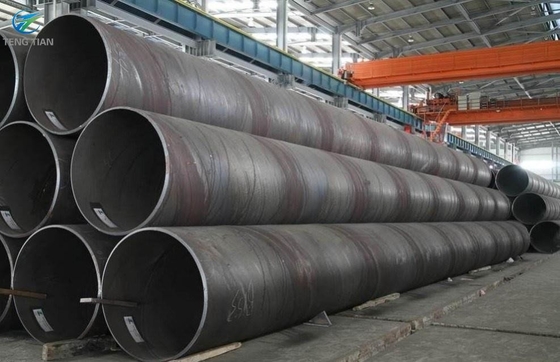

Output Pipe

Diameter	ø190 - ø1220 mm
Wall thickness	4-16 mm
Length	8-12 M
Weight	Max. 20 Tons
Spiral distance	Max. 2200 mm
Standard	GB/T9711 GB/T5037

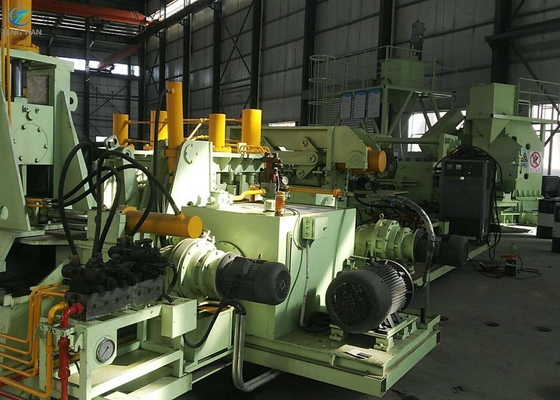

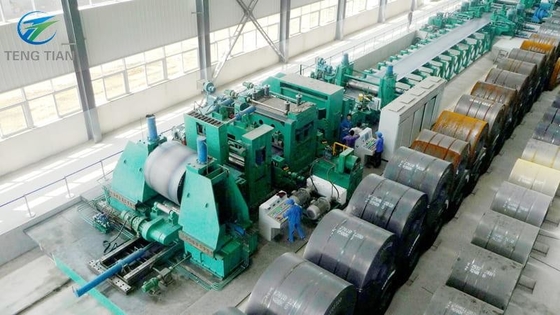

Production Line

Working style	Front pendulum + discontinuous + centralized positioning
Feeding	Left/right (as order)
Forming	Three-roll bending, external control sizing
Forming angle	40°～79°
Blanking	Pendulum roll
Feeding speed	0.6-3.0 m/min
Welding speed	0.5-2.8 m/min
Welder	USA Lincoln DC1500

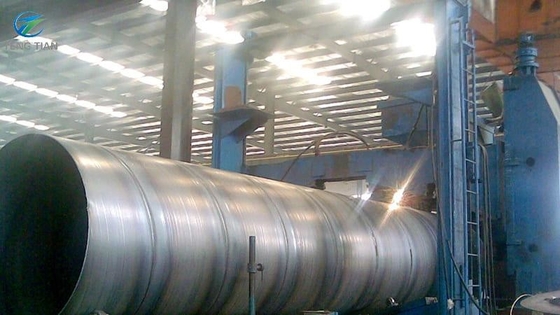

Welding	Single Out+In auto SAW
Productivity	Approx. 100/8 (tons/hour)
Capacity	Approx. 550 kw (include welder)
