Q235 Carbon Steel Pipe Machine for Round Pipes up to 219mm

Name: Q235 Carbon Steel Pipe Machine for Round Pipes up to 219mm
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: HG219
Price: 50,000.00 USD
Availability: InStock

Product Details:

Place of Origin:	China
Brand Name:	TengTian
Certification:	BV,CE,ISO
Model Number:	HG219

Detail Information

Place of Origin:

China

Brand Name:

TengTian

Certification:

BV,CE,ISO

Model Number:

HG219

Product Name:

Q235 Carbon Steel Pipe Making Machine For Round Pipe Various Size

Coild:

Q235

Diameter:

219mm(max.)

Thickness:

6mm

Length:

6-9M

Weight:

8 Tons

Cutter:

Hot Saw

Runout Table:

18M

Highlight:

High Light

Highlight:

Round Carbon Steel Pipe Making Machine

Various Size Steel Pipe Making Machine

Q235 Carbon Steel Pipe Making Machine

Trading Information

Minimum Order Quantity:

1 set

Price:

$100000 to $1 million

Packaging Details:

plastic film winding, wooded case for electric components

Delivery Time:

150 days

Payment Terms:

L/C,T/T

Supply Ability:

21 sets per year

Product Description

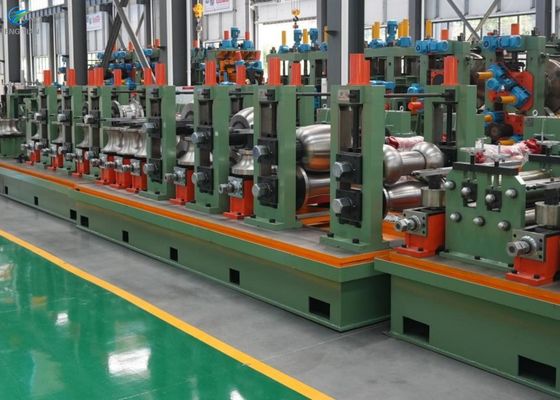

Q235 Carbon Steel Pipe Making Machine For Round Pipe Various Size

Product Specifications

Attribute	Value
Product Name	Q235 Carbon Steel Pipe Making Machine for Round Pipe Various Size
Coil	Q235
Diameter	219mm (max.)
Thickness	6mm
Length	6-9M
Weight	8 Tons
Cutter	Hot saw
Runout Table	18M

Product Description

This Q235 Carbon Steel Pipe Making Machine is designed to produce high-quality welded steel pipes, including round, square, and rectangular pipes. Featuring advanced roll pass design, the production line ensures precise machining and high-quality assembly.

Material Specifications

Standard: Conforming to YB189-64 standard
Material: Low carbon steel and low alloy steel, Q235
Strip Width: 320-700mm
Strip Thickness: 1.5-6.0mm
Inner Diameter of Coils: φ470～φ510mm
Outer Diameter of Coils: Φ1000～φ1800mm
Coil Weight: ≤8T

Pipe Specifications

Pipe Size:
- Round Pipe: ø89-219mm
- Square Pipe: 80x80 - 175x175mm
- Thickness: 1.5-6.0mm
Length: 6m
Forming Speed: 20-50 m/min

Buyer-Supplied Requirements

Total capacity: Around 850 kw
Circulation Cooling Water (whole system):
- Flow: 20T/h～30 T/h
- Pool Volume: 30m³
Compressed Air (whole system):
- Flow: 5m³/min
- Pressure: 5-7kg/㎡
Cable: All cables outside of the machine must be purchased after machine installation

Note: We typically send 2-3 engineers to perform installation and commissioning. The buyer is responsible for providing round-trip tickets, food & accommodation, local transportation, and a technical service fee of $150 per day per engineer.
