High Efficiency Customizable Tube Mill for Square Pipe 100x100mm

Name: High Efficiency Customizable Tube Mill for Square Pipe 100x100mm
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: HG100
Price: 50,000.00 USD
Availability: InStock

Product Details:

Place of Origin:	China
Brand Name:	TENGTIAN
Certification:	CE ISO9000 BV
Model Number:	HG100

Detail Information

Place of Origin:

China

Brand Name:

TENGTIAN

Certification:

CE ISO9000 BV

Model Number:

HG100

Mill Name:

High Efficiency Customizable Pipe Making Machinery

Product:

Square Tube

Feature:

Precision

Material:

Carbon Steel And Galvanized Steel

Other Pipe:

Rectangular Pipe

Max Size:

100x100mm

Thickness:

3mm

Length:

3-6m

Rollers:

Not Include

Key Words:

Customizable Pipe Making Machinery

Highlight:

High Light

Highlight:

Customizable metal pipe making machine

Customizable Pipe Making Machine

High Efficiency metal pipe making machine

Trading Information

Minimum Order Quantity:

1 set

Price:

$100000 to $1 million

Packaging Details:

standard export package

Delivery Time:

90 wording days

Payment Terms:

L/C,T/T,Western Union,MoneyGram

Supply Ability:

5 set/month

Product Description

High Efficiency Customizable Pipe Making Machinery

Product Specifications

Attribute	Value
Mill Name	High Efficiency Customizable Pipe Making Machinery
Product	Square tube
Feature	Precision
Material	Carbon steel and galvanized steel
Other pipe	Rectangular pipe
Max size	100x100mm
Thickness	3mm
Length	3-6m
Rollers	Not included

Product Description

The HG100 Automatic Tube Mill is engineered to produce high-quality square pipes ranging from 30x30mm to 100x100mm with thicknesses of 1-3mm. Utilizing advanced roll pass design, this production line delivers welded steel pipes with exceptional machining quality and high-precision assembly.

Key Features

Double-radius hole style design for improved efficiency
Optimized operating characteristics and safety features
Reduced roller costs without compromising performance
Precision manufacturing for consistent pipe quality

Technical Specifications

Material Specifications

Standard: International standard tube mill machine

Material: Galvanized steel

Mechanical properties: σb≤520Mpa, σs≤365MPa

Strip Width: 120-400mm

Strip Thickness: 1-3mm

Inner Diameter of Coils: Φ508mm

Outer Diameter of Coils: Φ1300～φ2000mm

Coil Weight: ≤3T

Pipe Specifications

Pipe Diameter: Square pipe: 50x50-100x100 mm

Length: 3-6m

Pipe-cutting Precision: 0-6mm

Forming Speed: max 90m/min for 2 mm thickness

Working Process

The automated process includes: strip steel to coil → uncoiler → end straightener → flattener → shear welder → storage material unit → forming, welding, cooling → accurate pipe diameter sizing → accurate pipe length sizing and cutting → inspection → packaging.

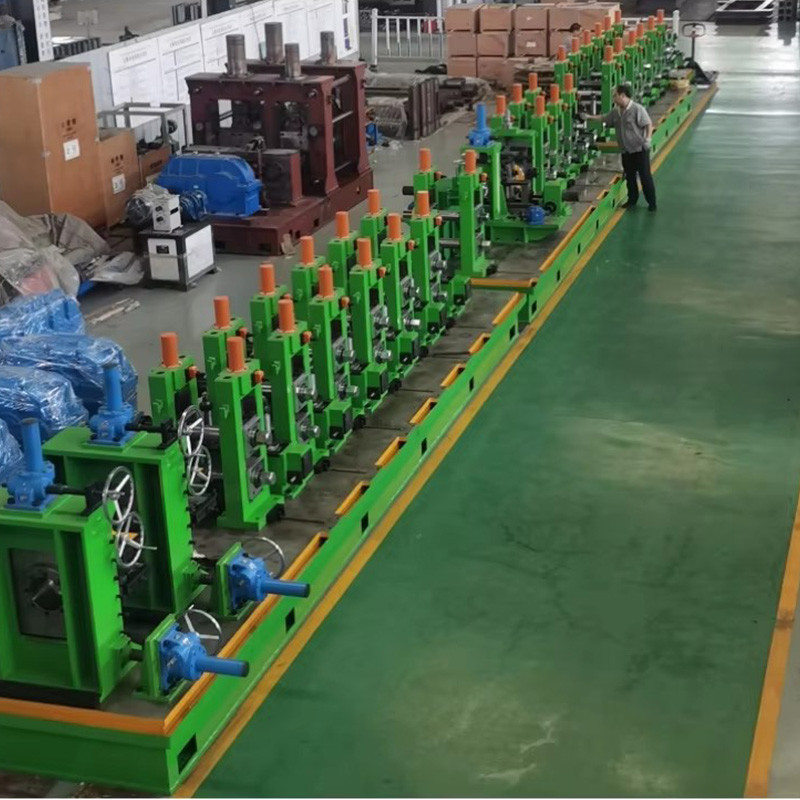

Machine Images
