Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
Quality first, Customer first
Sales & Support:
|
Product Details:
Payment & Shipping Terms:
|
| Forming Method: | Cold Roll Forming | Raw Material Thickness: | 2 - 20mm |
|---|---|---|---|
| Peoduct Name: | Metal Cold Roll Forming Machine | Model: | LW Series |
| Certification: | CE / ISO9001 / BV | Roll Weight(mm): | 30 |
| High Light: | cold forming machine,purlin roll forming machine |
||

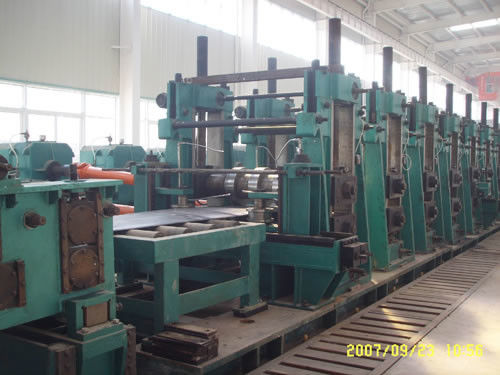

Cold rolled forming technology is advanced and reliable. In order to ensure reliable performance, the abroach cold rolled section steel forming machine adopts PROFIBUS technology in its control system.
All of these ensured highly synchronization accuracy and the best product quality. All the indicators and operational costs are controlled at the lowest level. Hence, if you are looking for an economical cold rolled section steel forming machine, please try this one.
Technical specifications of abroach cold rolled section steel forming machine
| No. | Model | Size | Thickness (mm) | Roll Weight(mm) | Forming Speed (m/min) | Installed Capacity(kw) |
| 1 | 200 | 20x20-50x50 | 1-3 | 5 | 20-80 | 900 |
| 2 | 600 | 60x60-150x150 | 2-7 | 10 | 20-60 | 1400 |
| 3 | 800 | 80x80-200x200 | 2.5-10 | 15 | 20-40 | 1600 |
| 4 | 1050 | 100x100-250x250 | 3-12.7 | 20 | 15-30 | 2600 |
| 5 | 1250 | 120x120-300x300 | 3-14 | 30 | 10-25 | 3200 |
| 6 | 1400 | 150x150-350x350 | 4-14 | 30 | 8-20 | 3600 |
| 7 | 1600 | 200x200-400x400 | 4-16 | 30 | 8-15 | 3900 |
| 8 | 2000 | 250x250-500x500 | 4-20 | 40 | 8-15 | 4200 |
As an ISO9001:2008 certified abroach cold rolled section steel forming machine manufacture in China, we know the importance of product quality. In order to offer customers better quality, we carry out a series of measures, including employing highly experienced staff, utilizing advanced technology, and conducting strict quality inspections at each step of production, from raw material selection to final delivery. Hence, the quality of our products is ensured.
In addition to abroach cold rolled section steel forming machine, we manufacture other tube making machine products such as pipe making machine, and precision pipe mill etc.
Whenever you have a need for our products, please feel secure in contacting us!
