Durable Hot Dip Galvanized Welded Pipe Mill Fit Welded Erw Straight Seam Steel Pipe

Durable Hot Dip Galvanized Welded Pipe Mill Fit Welded Erw Straight Seam Steel Pipe

Large Image :  Durable Hot Dip Galvanized Welded Pipe Mill Fit Welded Erw Straight Seam Steel Pipe

Product Details:
Place of Origin: CHINA
Brand Name: Teng Tian
Certification: CE / ISO9001
Model Number: LX-800
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Negotiable
Packaging Details: Exporting Standard packing, and fixed in container
Delivery Time: 6 MONTHS
Payment Terms: T/T, L/C
Supply Ability: 20 SETS / YEAR
Detailed Product Description
Application: Construction; Oil And Gas; Water Supply After-sales Servive: Engineers Available To Service Machinery Overseas
Coil Width: 400 - 800mm Thickness: 2-12mm
Product Name: Spiral Weld Pipe Machine Certification: CE / ISO9001
High Light:

seamless pipe mill

,

welded pipe production line

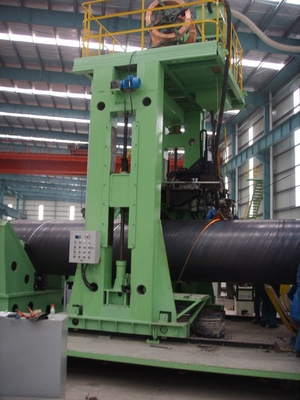

LX-800 Spiral Weld Pipe Production Line



1. Introduction

1. welded pipe mill is used to roll the low carbon steel/ low alloy steel strip into tube by a certain forming angle, further weld it into steel pipe by sub-merged arc welder.

Large diameter pipes can be produced with narrow steel strip.



2. Function

For liquid delivery: water supply& drainage;
For gas delivery: coal gas, steam and LPG;
For structural use: piling pipe, structural pipe in the field of bridge, dock, road, and construction, etc.



3. Process flow
Feeding→uncoiling→leveling→shearing& butt welding→rotary shear→edge milling→main drive→pre-bend& guide board→forming→inside welding→outside welding→cutting off→pull out→end-facing& beveling→hydrotesting→collection



Series Min Pipe O.D. Max Pipe O.D. Min Thickness Max Thickness Coil width Max Production capacity Area
  mm mm mm mm mm ton/year m2
LH600 219 - 508 325 - 820 2 - 4 4 - 10 400 - 600 8000 - 12000 20×96
LH800 219 - 508 406 - 1220 2 - 4 4 - 12 400 - 800 9000 - 17000 20×96
LH1050 219 - 508 630 - 1620 2 - 4 4 - 14 450 - 1050 16000 - 23000 24×108
LH1250 406 - 610 820 - 1620 3 - 6 8 - 18 500 - 1250 26000 - 35000 24×108
LH1550 406 - 610 1420 - 3200+ 3 - 6 12 - 25.4+ 500 - 1550 36000 - 76000 26×125
LH2000 406 - 610 2020 - 3200+ 4 - 6 20 - 25.4+ 1000 - 2000 77000 - 93000

Durable Hot Dip Galvanized Welded Pipe Mill Fit Welded Erw Straight Seam Steel Pipe 0Durable Hot Dip Galvanized Welded Pipe Mill Fit Welded Erw Straight Seam Steel Pipe 1
