Product Details:
Payment & Shipping Terms:
|
| Material: | HRC,CRC,Galvanised Steel | Control System: | PLC Control |
|---|---|---|---|
| Speed: | 30-120m/min | Pipe Shape: | Round,square,rectangular |
| Pipe Diameter: | 16-50mm | Thickness: | 1.0-3.0mm |
| Welding Type: | High Frequency Welding | Cutting Saw: | Cold Saw & Friction Saw Cutting |
| Highlight: | erw pipe mill line,steel pipe mill |
||

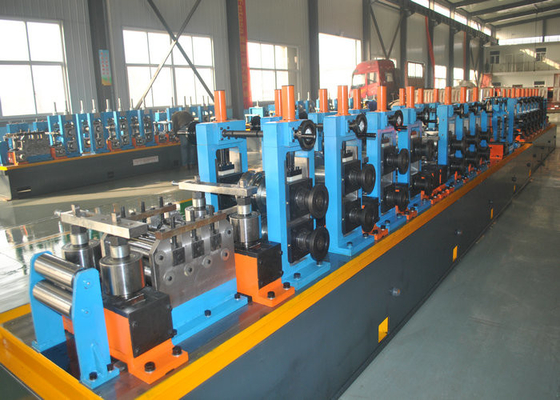

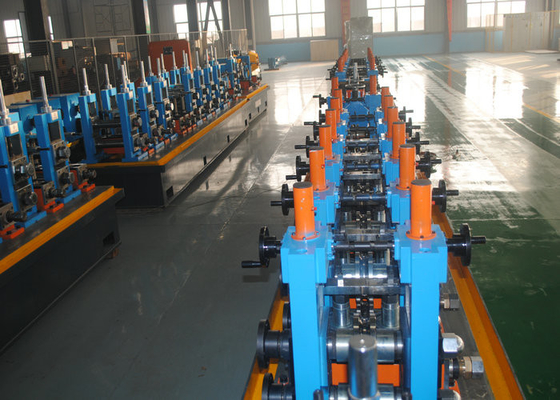

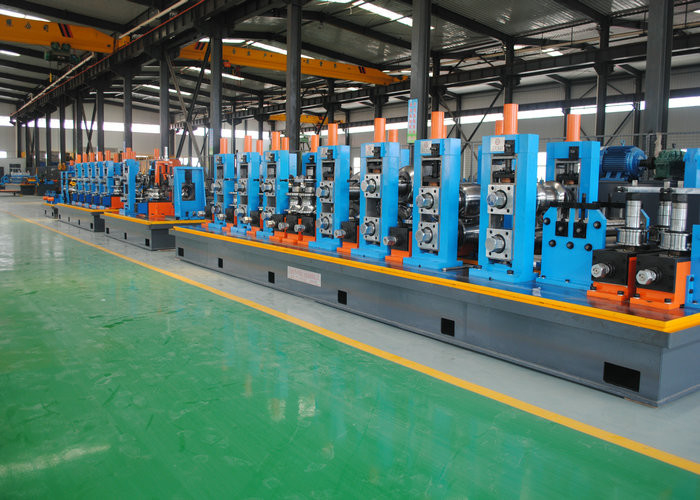

Production Process
Scroll up → Uncoil → Flattening → End Shear & Butt Welding → Accumulator → Forming → High-frequency induction welding→ Removing external burr → Cooling → Sizing → Cutting → Checking & Collecting → Accessing Warehouse
Specifications:
1. Raw Material: HRC, CRC, Galvanised Coil
2. Production Range:
Round Pipe: 16-50mm;
Thickness: 0.8-3mm
Square Pipe: 16*16 - 50*50mm; Thickness: 0.8-3.0mm
Rectangular: 20*30 - 40*60mm; Thickness: 0.8-2.5mm
3. H.F. Welder: GGP200Kw Solid State
4. Line Spees: Max. 120m/min
5. Tube Length: 4-12m
6. Cutting Accuracy: ±3mm
