Square Tube Mill
>
High Speed Square Tube Mill Adjustable 120 X 120mm Tube Size ISO9001

High Speed Square Tube Mill Adjustable 120 X 120mm Tube Size ISO9001

Product Details:
Place of Origin: Hebei
Brand Name: Tengtian
Certification: CE,ISO9001,BV
Model Number: ZD120X120
Detail Information
Place of Origin:
Hebei
Brand Name:
Tengtian
Certification:
CE,ISO9001,BV
Model Number:
ZD120X120
Material:
HRC,CRC,Galvanised Steel
Voltage:
220/380/415/420/440V
Mill Speed:
30-100m/min
Warranty:
1 Year
Tube Size:
50x50-120x120mm
Thickness:
2.0-6.0mm
Welding Type:
High Frequency Welding
After-sales Service Provided:
Engineers Available To Service Machinery Overseas
Highlight:

High Light

Highlight:

square pipe making machine

,

tube mill line

Trading Information
Minimum Order Quantity:
1 Set
Price:
$100000 to $1 million
Packaging Details:
Export waterproof and Seaworthy packing.
Delivery Time:
150 work days
Payment Terms:
L/C, T/T, Western Union
Supply Ability:
100 Sets/Year
Product Description

High Speed Square Tube Mill Adjustable 120 X 120mm Tube Size ISO9001


Equipment description

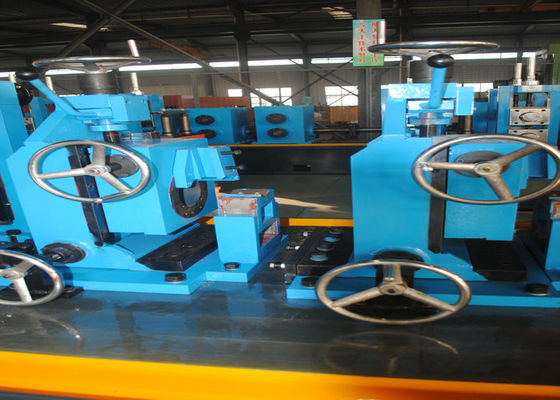

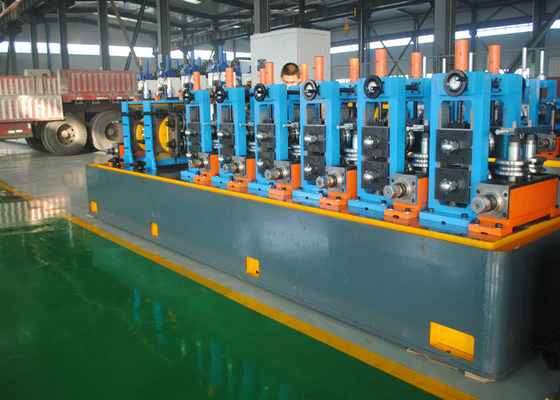

Full automatic high speed tube mill line steel pipe making machine
is the first full-automatic pipe making machine in china to meet the requirements of the international market, according to our company LW series unit combined with FF forming technology, developed the automatic square and rectangular tube equipment. The pipe making machine can produce a certain specification of opening cold bend steel, such as U,C section steel etc., width and height of the product can be adjusted infinitely. The steel making machine is used to scale to cut off the steel tubes, the incision level off, smooth, without burr, scale with high precision.

The pipe machine’s main characteristics of the equipment

1. In a very short period of time to finish the adjustment of the roller
2. producing the different specifications of the tube, only need to adjust
3. decreasing the number of workers, reduce the labor costs
4. improve the service life of the equipment.
5. The machine can be repaired alone.

Welded pipe making machine consists of the following parts

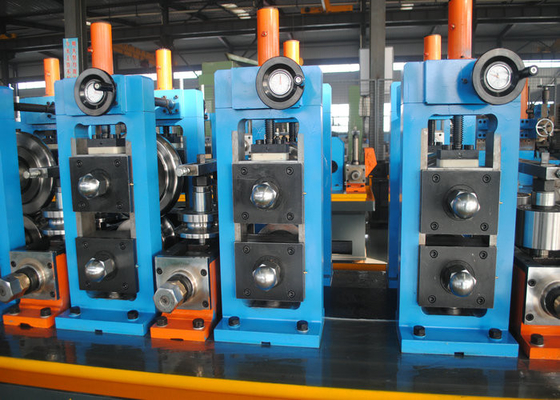

1. Forming parts: Consist of seven frame of horizontal roll stands, four stands of empty curving stands, four stands of vertical roll rack and one stand of feeding rack
2. Welding parts: consists of welding five roller of extruding roll, two frame of scraping scar rack and one frame of polish rack
3. Sharping parts: consists of four frame of four roller rack
4. Electric control part: controlled by multipoint PLC control


Production Process

Scroll up → Uncoil → Flattening → End Shear & Butt Welding → Accumulator → Forming → High-frequency induction welding→ Removing external burr → Cooling → Sizing → Cutting → Checking & Collecting → Accessing Warehouse

Specifications:

Raw materials: Low carbon steel and low alloy constructional steel,σb≤580Mpa σs≤380Mpa
Steel strip width:320-800mm
Steel strip thickness:3.0-12.7 mm
Steel strip inner diameter:φ480-580mm
Steel strip outer diameter:φ800-1800mm
Steel coil weight (Max):12t
Raw material on behalf of the steel grade: Q195-Q345,SPHC
Raw material quality standards::Mainly in GB standards, parts with JIS,DIN
Thickness(Max):5.0mm,thickness 1.5mm
main product specifications
Square pipe 80×80—200×200(any size in this range)
Rectangular 80×120-120×280 (any size in this range),Rectangular tube all adopt vertical forming type
Wall Thickness:3.0-12.7mm
Length:4-12m
Unit feed direction:left or right (face the operate side)
Rolling line elevation:+900mm
Forming speed:10-40m/min
Main motor: Frequency conversion motor 22KW×2 Each stand times




High Speed Square Tube Mill Adjustable 120 X 120mm Tube Size ISO9001 0

Usage ( finished tube show ): produce square&rectangular tube :

High Speed Square Tube Mill Adjustable 120 X 120mm Tube Size ISO9001 1
