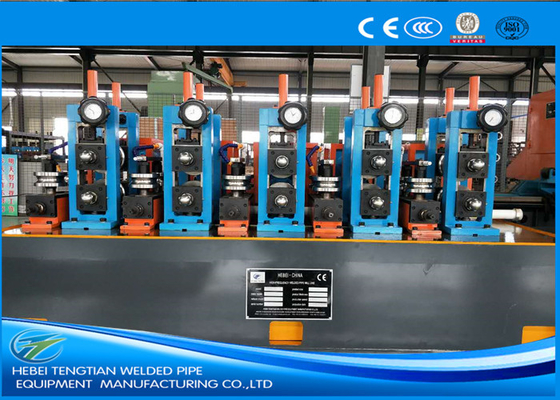

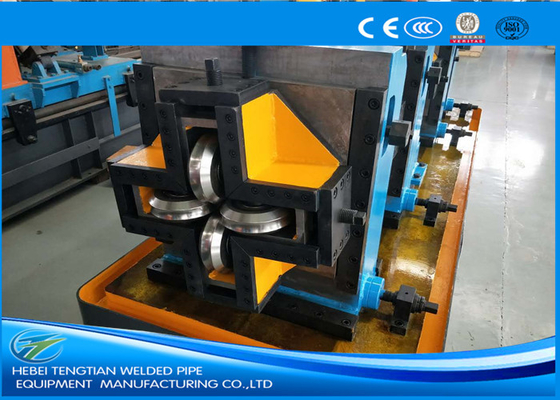

Round / Rectangular ERW Steel Pipe Production Line Worm Gearing Friction Saw Cutting

Round / Rectangular ERW Steel Pipe Production Line Worm Gearing Friction Saw Cutting
Round / Rectangular ERW Steel Pipe Production Line Worm Gearing Friction Saw Cutting Round / Rectangular ERW Steel Pipe Production Line Worm Gearing Friction Saw Cutting

Large Image :  Round / Rectangular ERW Steel Pipe Production Line Worm Gearing Friction Saw Cutting

Product Details:
Place of Origin: Hebei
Brand Name: Tengtian
Certification: CE, ISO9001, BV
Model Number: 2.5 inch
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiate
Packaging Details: Export waterproof and Seaworthy packing.
Delivery Time: 60 work days
Payment Terms: L/C, T/T
Supply Ability: 50 Sets/Year
Detailed Product Description
Mill Name: Round / Rectangular ERW Steel Pipe Production Line Worm Gearing Friction Saw Cutting Adjustment Type: Worm Gearing
Running Speed: Max.120m/min Pipe Shape: Round, Square & Rectangular
Pipe Diameter: 19-60.3mm Welding Type: High Frequency Welding
Cutting Saw: Cold Saw & Friction Saw Cutting Max.Thickness For Round Pipe: 0.6-3.0mm
Highlight:

steel pipe mill

,

steel tube production line





Round / Rectangular ERW Steel Pipe Production Line Worm Gearing Friction Saw Cutting



Round / Rectangular ERW Steel Pipe Production Line Worm Gearing Friction Saw Cutting Equipment description



2.5 inch high speed ERW Pipe Mill Line  is used to produce building materials pipe, which is widely used for building material,drain and energy supply pipe.building and decoration profiles , extruded profiles , building profiles ,cold bending profiles , etc.



Production Process

Scroll up → Uncoil → Flattening → End Shear & Butt Welding → Accumulator → Forming → High-frequency induction welding→ Removing external burr → Cooling → Sizing → Cutting → Checking & Collecting → Accessing Warehouse



Specifications:



1. Raw Material: HRC, CRC, Galvanised Coil



2. Production Range:

Round Pipe: 19 - 60.3mm;         Thickness: 0.6-3.0mm

Square Pipe: 15*15 - 50*50mm; Thickness: 0.6-2.5mm

Rectangular: 15*20 - 40*60mm; Thickness: 0.6-2.5mm



3. H.F. Welder: GGP200Kw Solid State High Frequency Welder



4. Line Spees: Max. 120m/min



5. Tube Length: 4-12m



6. Cutting Accuracy: ±3mm
